Nice MetroKit 1

Motor Voltage:
Max Weight:
Max Length:
  • Nice branded underground double gate opener kit
  • Corrosion resistant, strong and durable
  • IP67 water-proof protection
  • Irreversible, electro-mechanical gear motors



Nice MetroKit 1 230v Double Underground Electric Gate Opener Kit
This item: Nice MetroKit 1
Nice IT4WIFI Interface Side
Nice BiDi WiFi Pocket Programming Interface
Nice Era One ON2E Remote Control
Nice EPM Surfaced-Mounted Universal Relay Photocells
Nice Era PPH3 Aluminium Photocell Post (500mm)
Nice EDSWG Keypad

SKU: MetroKit 1 Category: Tag:


The Nice MetroKit 1 is a 230v underground gate opener double kit. Ideal for automating swing gates with leaves up to 3.5m in length OR 600kg in weight.

The kit is electro-mechanical, complete with irreversible gear motors made of new IP67 waterproof die-cast aluminium.

Ideal to use in all conditions thanks to the stainless steel finish with protection from a cataphoresis paint finish to prevent corrosion. There is total freedom of choice, with the options to release from both the inside and the outside, and is simple to use as a result of the mechanical stop system.

The kit is totally compatible with the previous Metro series.

The Metro Kit series is available in 230v / 24v and double/single kit options.


Reliable and Efficient

  • Irreversible, electro-mechanical gear motor
  • Mechanical stop system on opening and closing
  • Complete with connecting lever
  • Easy to use emergency release mechanism, activate from both the inside and outside with just one hand
  • Standard opening max. 110°, optional opening 360°
  • Incorporated 10 μF capacitor

Durable Materials

  • Includes corrosion-resistant MECF foundation box, externally chamfered with a cataphoresis finish
  • IP67 waterproof protection offering high resistance to the elements
  • Reliable and resistant motors thanks to the die-cast aluminium construction, internal parts made up of solid metal

Downloadable Materials

What’s Included

  • 2 x ME3000 Electro-mechanical gear motor (230v)
  • 2 x MFABBOX Externally chamfered foundation box
  • 1 x MC800 Control panel
  • 2 x ON2E Era 2 button 433.92 MHz remote control
  • 1 x EPM Pair of surface-mounted photocells
  • 1 x OXI 4 channel receiver
  • 2 x MEA3 Emergency release mechanism and key

Product Specifications

Physical and Performance Attributes

Weight35 KG
Dimensions (L x W x H)194.50 × 390 × 322 mm

Nice Metro

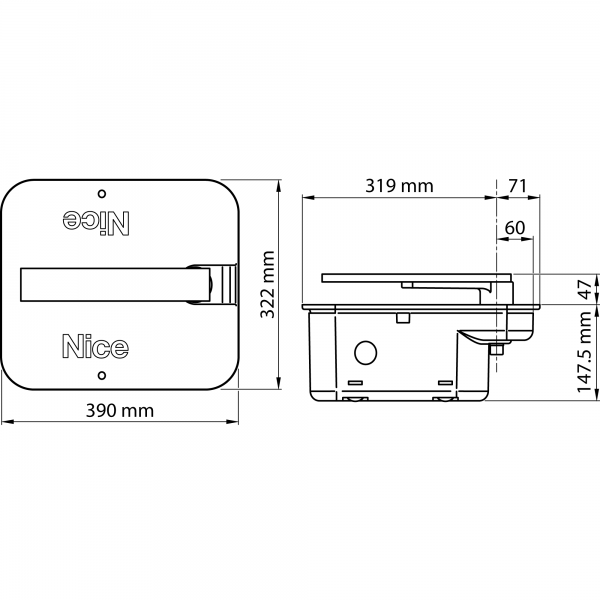

Dimensions – 390 x 322 x 194.50 mm

Weight – 11 kg

Protection Rating (IP)67
Operating Temperature-20°C to +50°C

Electronics Attributes

Max Absorption1.2A
Max Power250
Power Supply230v AC (50Hz)

Motor Attributes

Duty Cycle / Work Cycle

30 cycles per hour

Motor Speed1.14 RPM
Motor Voltage230v
Automation TypeUnderground
Kit TypeDouble

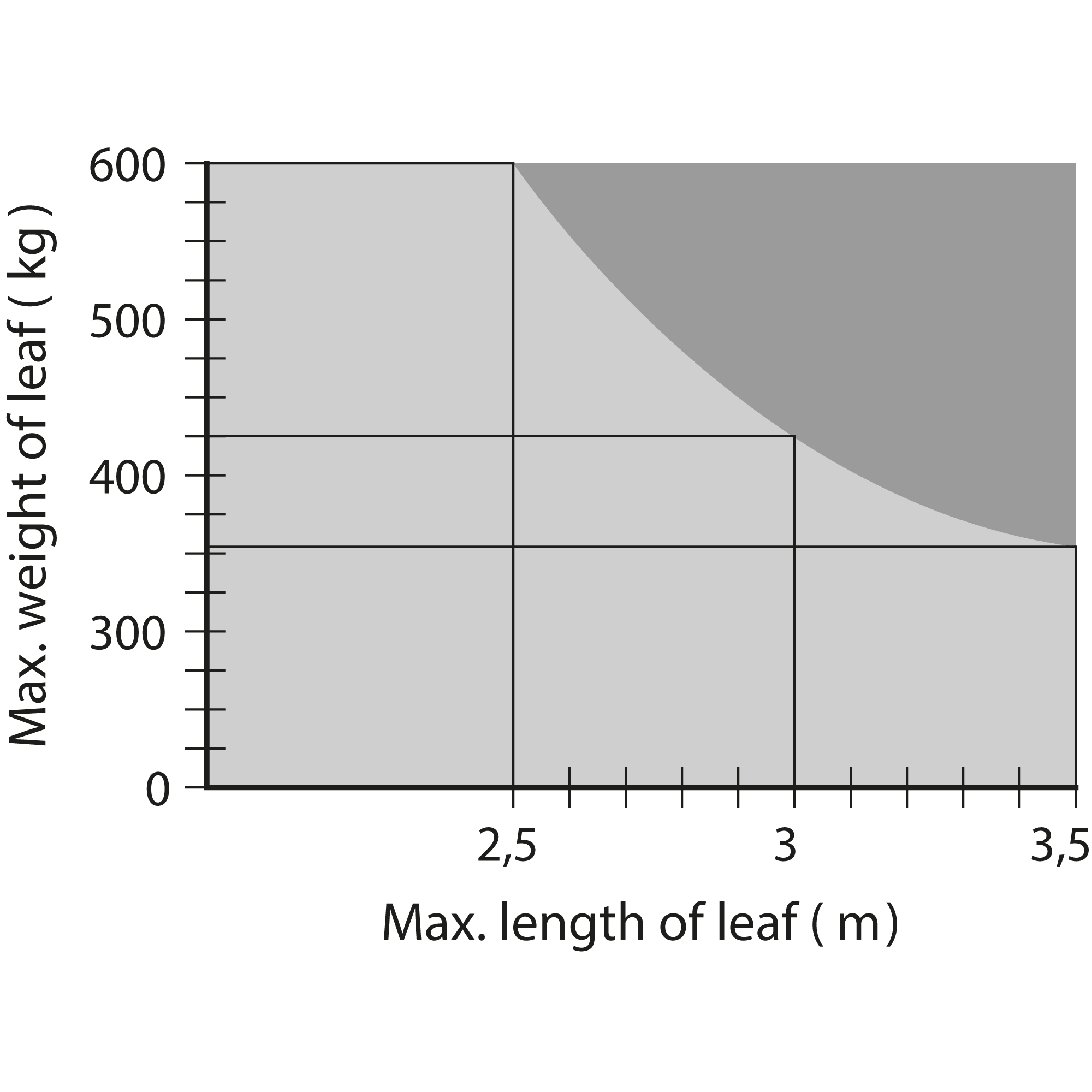

Max. Gate Leaf Length (M)3.5M
Max. Gate Weight (KG)600KG
Motor Model Number(s)


Number of Leafs2
Max Opening Angle110°
