Nice L-FabKit 1

Motor Voltage:
Max Weight:
Max Length:
  • Nice branded underground double gate opener kit
  • Corrosion resistant, strong and durable
  • IP67 water-proof protection
  • Irreversible, electro-mechanical gear motors



Nice L-FabKit 1 230v Double Underground Gate Opener Kit
This item: Nice L-FabKit 1
Nice IT4WIFI Interface Side
Nice BiDi WiFi Pocket Programming Interface
Nice Era One ON2E Remote Control
Nice EPM Surfaced-Mounted Universal Relay Photocells
Nice Era PPH3 Aluminium Photocell Post (500mm)
Nice EDSWG Keypad

SKU: L-FabKit 1 Category: Tag:

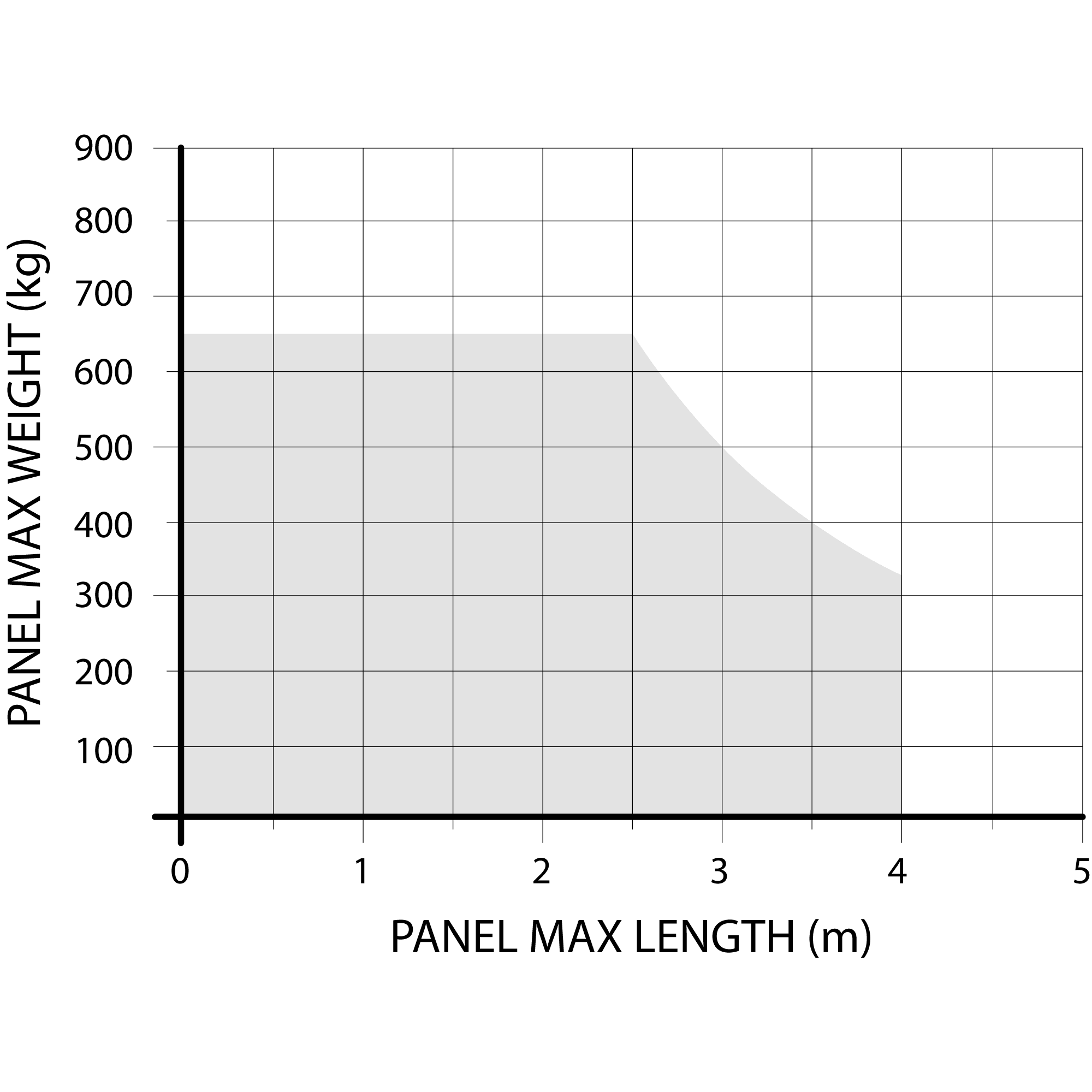

The Nice L-FabKit 1 is a 230v electric underground gate opener double kit. Ideal for automating swing gates with leaves up to 4.0m in length and 650kg in weight.

The L-Fab Kit series is available in 230v / 24v options.


Reliable and Efficient

  • Irreversible, electro-mechanical gear motor
  • Mechanical stop system on opening and closing
  • Complete with connecting lever
  • Easy to use emergency release mechanism, activate from both the inside and outside with just one hand
  • Standard opening max. 110°, optional opening 360°
  • Incorporated 7 μF capacitor

Durable Materials

  • Includes corrosion resistant BMBOX4 foundation box, externally chamfered with a cataphoresis finish
  • IP67 waterproof protection offering high resistance to the elements
  • Reliable and resistant motors

Downloadable Materials

What’s Included

  • 2 x BM4000 Electro-mechanical gear motor (230v)
  • 2 x BMBOX4 Externally chamfered foundation box
  • 1 x MC800 Mindy control panel
  • 2 x ON2E Era 2 button 433.92 MHz remote control
  • 1 x EPM Pair of surface-mounted photocells
  • 1 x OXI 4 channel receiver
  • 2 x BMA3 Emergency release mechanism and key

Product Specifications

Physical and Performance Attributes

Weight35 KG
Dimensions (L x W x H)152 × 400 × 325 mm

Measurements: 400 x 325 x 152 mm (with foundation box), 375 x 225 x 110 mm (without foundation box)

BM4000 Motor Weight: 14.3 kg

BMBOX4 Foundation Box Weight: 14.4 kg

Protection Rating (IP)67
Operating Temperature-20°C to +50°C

Electronics Attributes

Max Absorption1.5 A
Max Power340 W
Power Supply230v AC (50/60 Hz)

Motor Attributes

Duty Cycle / Work Cycle


Motor Voltage230v
Automation TypeUnderground
Kit TypeDouble
Max. Gate Leaf Length (M)4M
Max. Gate Weight (KG)650KG
Motor Model Number(s)


Number of Leafs2
Max Opening Angle110°
