Nice L-FabKit 2

Motor Voltage:
Max Weight:
Max Length:
  • Nice branded underground double gate opener kit
  • Corrosion resistant, strong and durable
  • IP67 water-proof protection
  • Irreversible, electro-mechanical gear motors
  • Connect accessories with just two wires via BlueBUS

£978.60 incl. VAT. £815.50 excl. VAT


Nice Era One ON2E Remote Control
£29.40 incl. VAT. £24.50 excl. VAT
Nice Era EPMB BlueBUS Surface-Mounted Photocells
£57.60 incl. VAT. £48.00 excl. VAT
Nice PLA11 Horizontal Electric Lock
£82.80 incl. VAT. £69.00 excl. VAT
Nice PLA10 Vertical Electric Lock
£82.80 incl. VAT. £69.00 excl. VAT
Nice EDSWG Keypad
£82.80 incl. VAT. £69.00 excl. VAT
Nice BM4024 - L-Fab Swing Gate Motor (24v)
£304.26 incl. VAT. £253.55 excl. VAT

SKU: L-FabKit 2 Category: Tag:


The Nice L-FabKit 2 is a 24v electric underground gate opener double kit. Ideal for automating swing gates with leaves up to 4.0m in length and 650kg in weight. Fully compatible with Nice Opera, Solemyo and BlueBUS technologies.

The L-Fab Kit series is available in 230v / 24v options.


Reliable and Efficient

  • Irreversible, electro-mechanical gear motor
  • Mechanical stop system on opening and closing
  • Complete with connecting lever
  • Easy to use emergency release mechanism, activate from both the inside and outside with just one hand
  • Standard opening max. 110°, optional opening 360°

Durable Materials

  • Includes corrosion resistant BMBOX4 foundation box, externally chamfered with a cataphoresis finish
  • IP67 waterproof protection offering high resistance to the elements
  • Reliable and resistant motor

24v Model Exclusive Features

  • Fully compatible with Nice’s Solemyo solar power kit and Opera management system for GPRS and Bluetooth connectivity / operation
  • Integrated Nice BlueBUS technology, allowing connection of up to 12 devices with just two cables
  • Connection for EN compliant 8.2K safety edges
  • Automatic fault diagnosis
  • Simple to program with a single button, allowing programming of pause timing
  • Magnetic encoder
  • Self-learning of opening and closing limit positions
  • Pedestrian access mode allowing partial opening
  • Deceleration on opening and closing for smoother, quieter operation
  • Dual technology obstacle detection
  • Optional rechargeable back-up batteries for operation during a power failure (model no. PS324)

Downloadable Materials

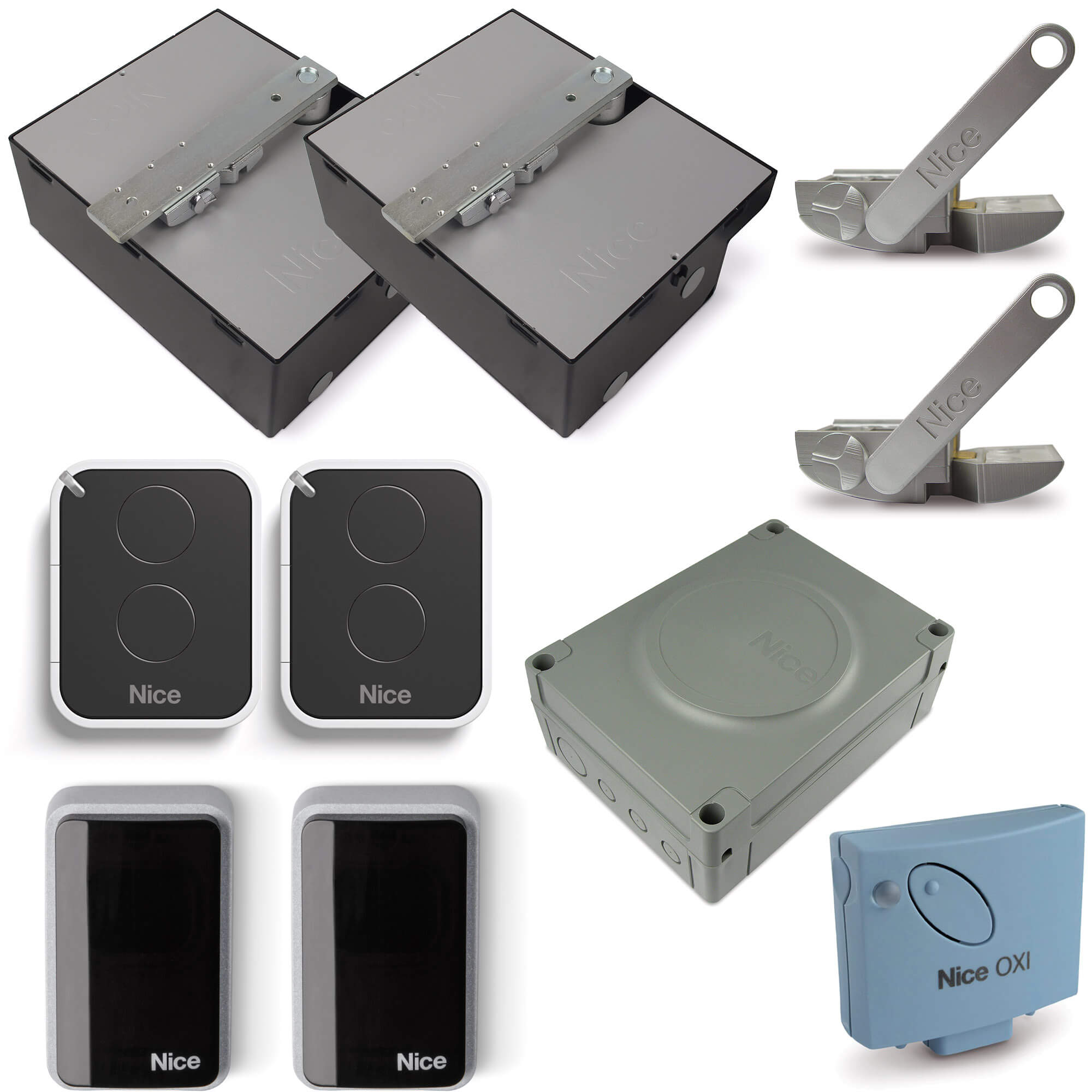

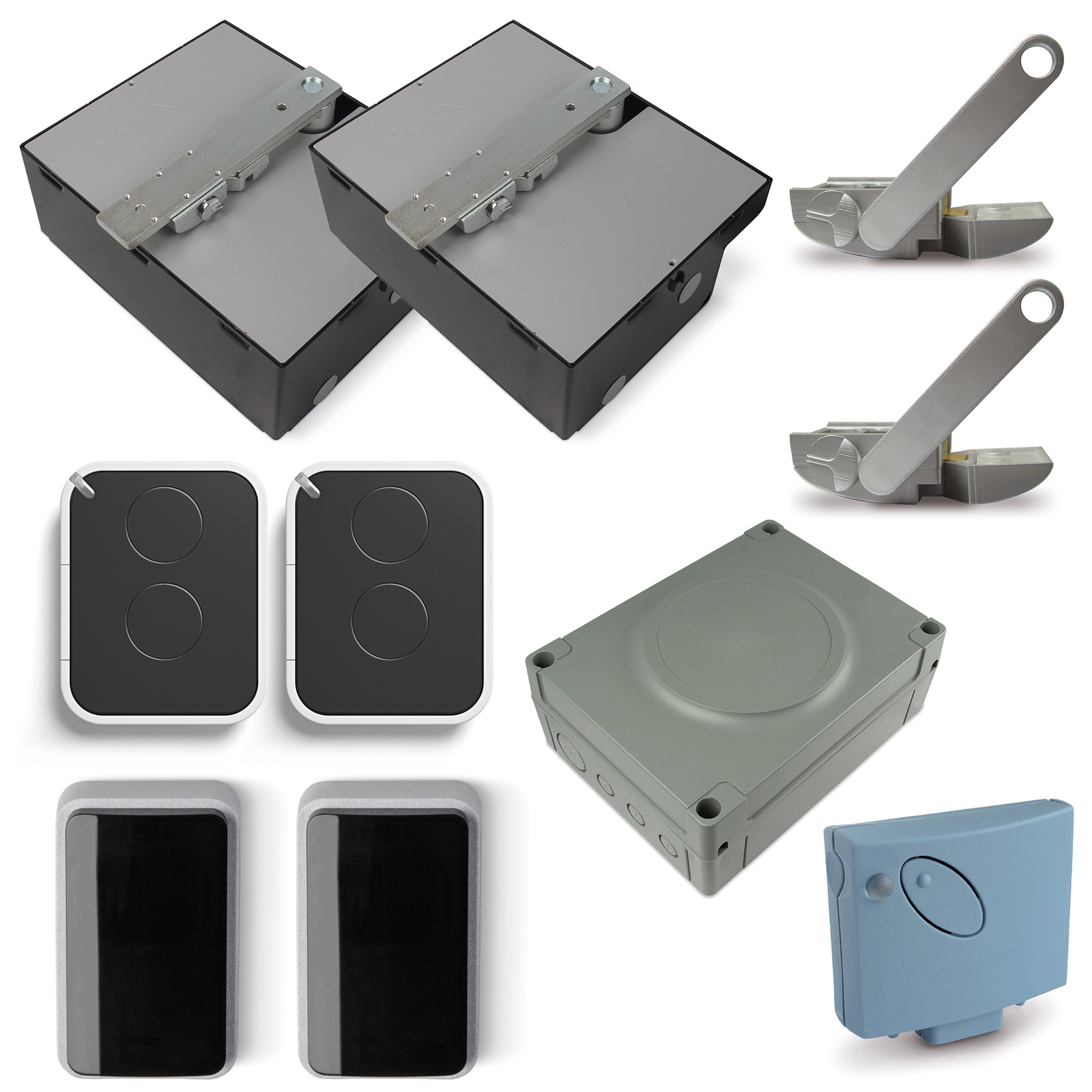

What’s Included

  • 2 x BM4024 Electro-mechanical gear motor (24v)
  • 2 x BMBOX4 Externally chamfered foundation box
  • 1 x MC824H Moonclever control panel
  • 2 x ON2E Era 2 button 433.92 MHz remote control
  • 1 x EPMB Pair of surface-mounted BlueBUS photocells
  • 1 x OXI 4 channel receiver
  • 2 x BMA3 Emergency release mechanism and key

Product Specifications

Physical Attributes

Weight35 KG
Dimensions (L x W x H)152 × 400 × 325 mm

Measurements: 400 x 325 x 152 mm (with foundation box), 375 x 225 x 110 mm (without foundation box)

BM4024 Motor Weight: 12.5 kg

BMBOX4 Foundation Box Weight: 14.4 kg

Protection Rating (IP)IP67

Electronics Attributes

Power Supply24v DC
Max Power120 W
Max Absorption5 A
Operating Temperature-20°C to +50°C

Gate Opener Attributes

Automation TypeUnderground
Kit TypeDouble
Max. Gate Leaf Length (M)4M
Max. Gate Weight (KG)650KG
Motor Model Number(s)


Obstacle DetectionEncoder
Number of Leafs2
Max Opening Angle110°

Motor Attributes

Motor Voltage24v
Duty Cycle / Work Cycle60%
Safety Edge Input8K2OHM, NC, NO
