Meanwell HDR-60-12 Ultra Slim DIN Rail Power Supply (12VDC, 4.5A, 54W)

Single 4.5A output, 54W step-shape DIN rail 12v power supply. Pass LPS. DC output voltage adjustable. Isolation class II.


SKU: HDR-60-12 Category:


Ultra-slim DIN rail PSU. 12VDC output, 4.5A rated current output, 54W rated power output.


  • Ultra-slim design with 52.5mm (3SU) width
  • Universal input 85-264 VAC (277VAC operational)
  • No load power consumption < 0.3W
  • Isolation class II
  • Pass LPS (limited power source)
  • DC output voltage adjustable
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection (working temperature -30°C to +70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • Over voltage category III
  • LED indicator for power on
  • 3 years warranty

Manuals and Data-sheets

Meanwell HDR Series Installation Manual

Meanwell HDR-60 Series Data-sheet

Product Specifications

Physical and Performance Attributes

Weight190 grams
Dimensions (L x W x H)90 × 52.5 × 54.5 mm

Click Diagram To Enlarge

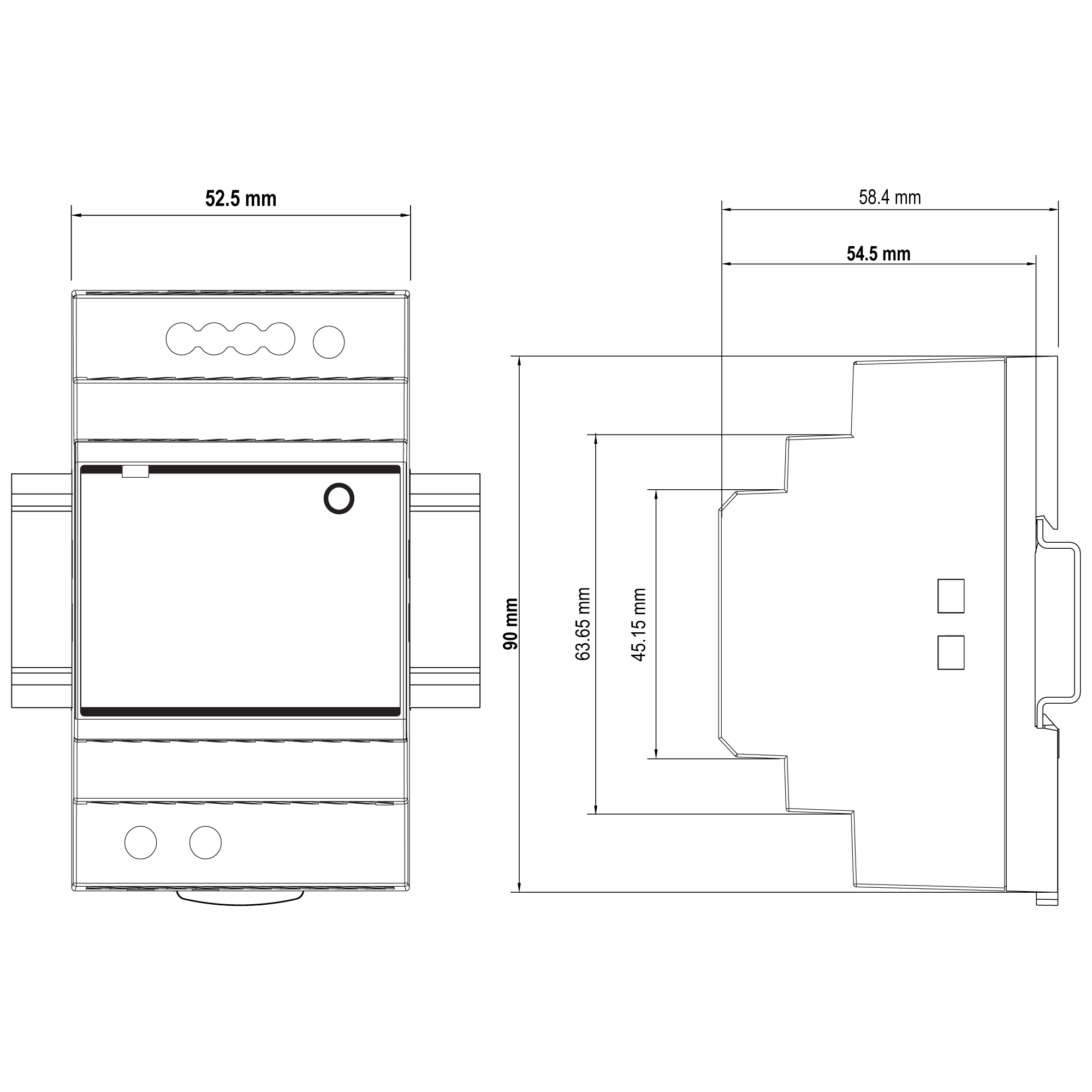

Meanwell HDR-60 Series DIN Rail PSU Dimension

Meanwell HDR-60 Series DIN Rail PSU Dimensions

Operating Temperature-30°C to +70°C

Electronics Attributes

Input Type1-Phase / Single Phase
Input Voltage85 VAC to 264 VAC, 120 VDC to 370 VDC
Frequency Range47 to 63 Hz
Number of Outputs1 Output
Output Power54W (rated)
Output Voltage12V DC
Output Current4.5A (rated)
