Meanwell HDR-100-24 Ultra Slim DIN Rail Power Supply (24VDC, 3.83A, 92W)

Single 3.83A output, 92W step-shape DIN rail 24v power supply. Pass LPS. DC output voltage adjustable. Isolation class II.

£43.52

SKU: HDR-100-24 Category:

Description

Ultra-slim DIN rail PSU. 24VDC output, 3.83A rated current output, 92W rated power output.

Features

  • Ultra-slim design with 70mm (4SU) width
  • Universal input 85-264 VAC (277VAC operational)
  • No load power consumption < 0.3W
  • Isolation class II
  • Pass LPS (limited power source) for blank type
  • DC output voltage adjustable
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection (working temperature -30°C to +70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • Over voltage category III
  • LED indicator for power on
  • 3 years warranty

Manuals and Data-sheets

Meanwell HDR Series Installation Manual

Meanwell HDR-100 Series Data-sheet

Product Specifications

Physical and Performance Attributes

Weight270 grams
Dimensions (L x W x H)90 × 70 × 54.5 mm
Dimensions

Click Diagram To Enlarge

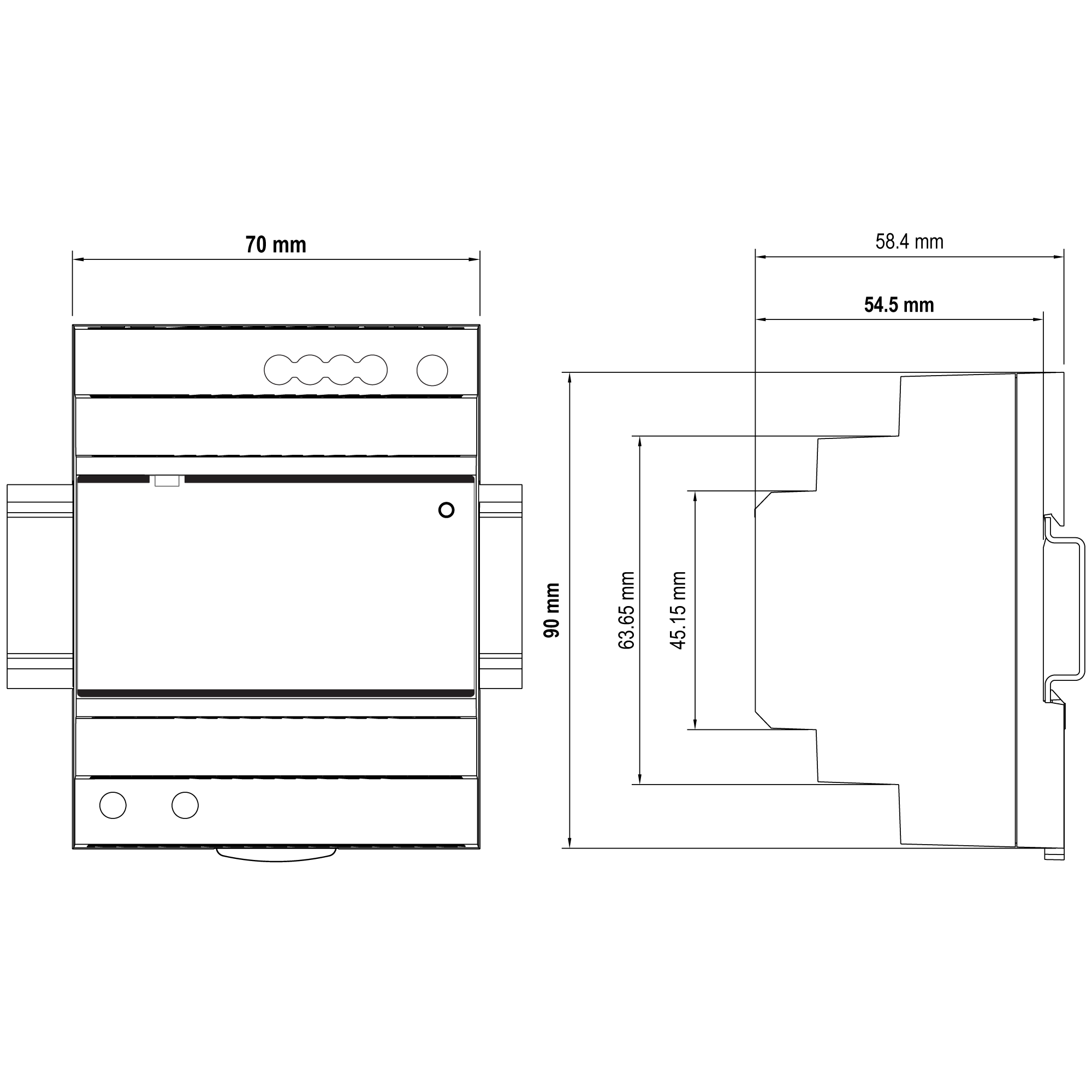

Meanwell HDR-100 Series DIN Rail PSU Dimensions

Meanwell HDR-100 Series DIN Rail PSU Dimensions

Operating Temperature-30°C to +70°C

Electronics Attributes

Input Type1-Phase / Single Phase
Input Voltage85 VAC to 264 VAC, 120 VDC to 370 VDC
Frequency Range47 to 63 Hz
Number of Outputs1 Output
Output Power92W (rated)
Output Voltage24V DC
Output Current3.83A (rated)
