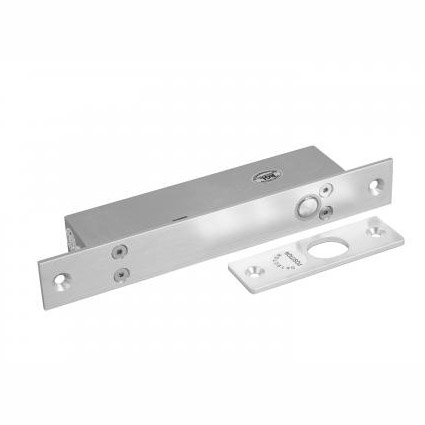

RGL SB-235 Solenoid Bolt

The SB-235 Solenoid Bolt has an operating voltage of 12VDC and operating current of 150mA.

£78.00

SKU: SB-235 Categories: , , Tag:

Description

The SB-235 Solenoid Bolt has an operating voltage of 12VDC and operating current of 150mA.

Technical Specifications:

  • Operating voltage – 12VDC
  • Standby current – 100mA
  • Operating current – 150mA
  • Initial Surge – 1.4Amps
  • Power to Lock
  • Holding force 1000K
  • Fail-safe operation
  • Delay timer (0/3/6) seconds
  • Locking by detector plate
  • Monitored output for door status
  • Suitable for wooden doors
  • Concealed when fitted flush

Manuals/Datasheets:

Manuals and Guides

More Manuals and Guides

Lost your manual? Need programming instructions? You can find instruction manuals for nearly all of the products we sell, as well as hundreds more at manuals.easygates.co.uk

Product Specifications

Physical and Performance Attributes

Weight700 grams
Dimensions (L x W x H)200 × 28 × 35 mm
