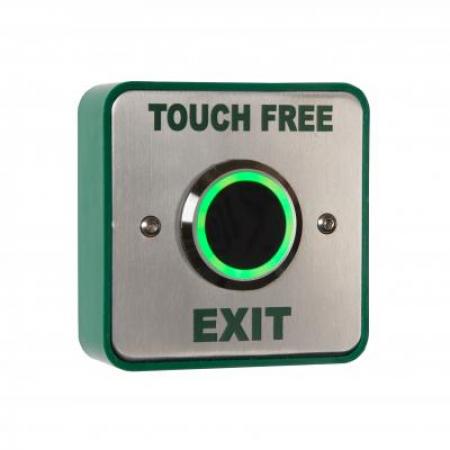

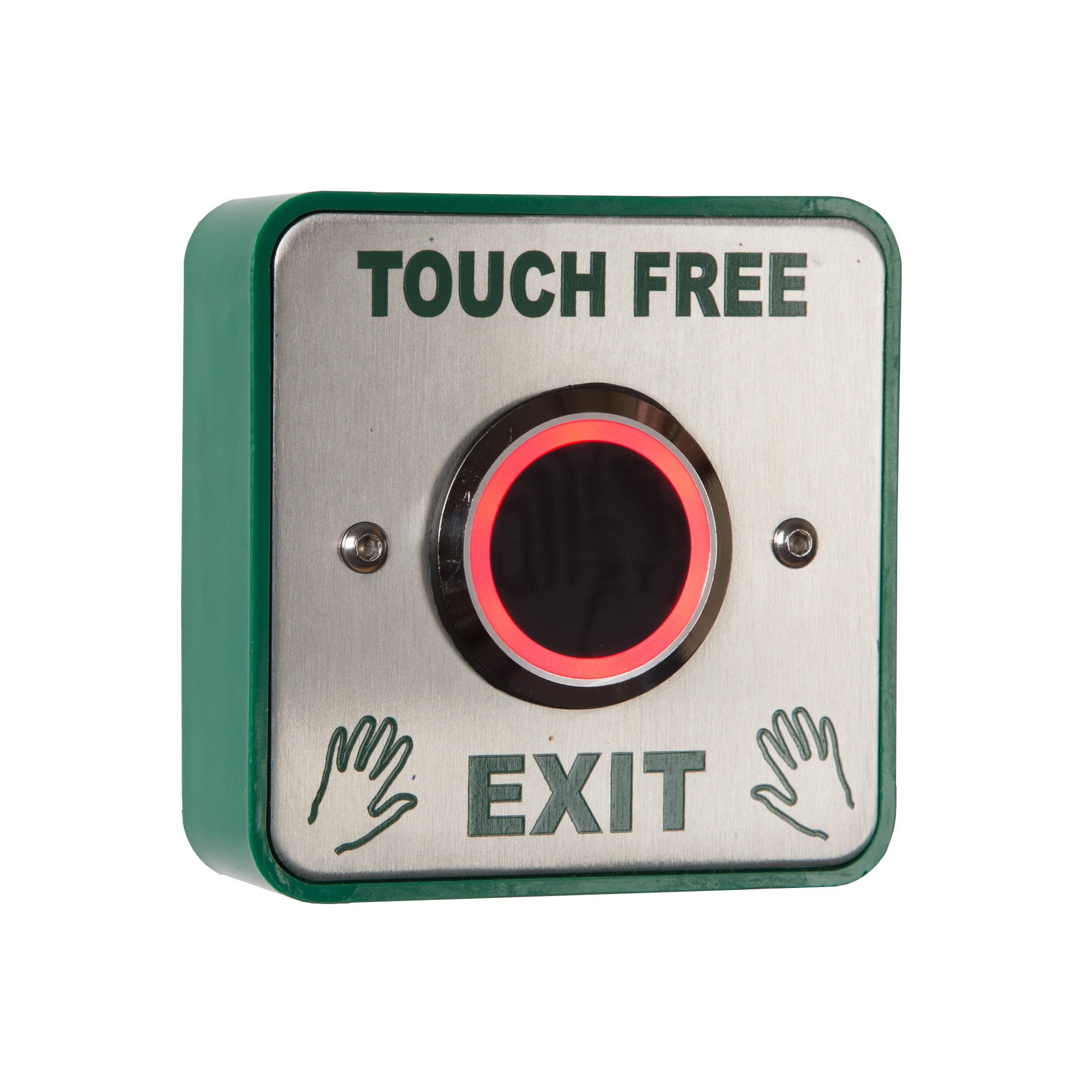

RGL EBNT/TF-1 Touch Free Exit Button

A ‘Touch Free’ sensor button providing illumination Green to Red in a high impact plastic back box that can be surface or flush fitting which is ideal for general/sensitive areas.

£35.94

Description

A ‘Touch Free’ sensor button providing illumination Green to Red in a high impact plastic back box that can be surface or flush fitting which is ideal for general/sensitive areas.

Main Features:

  • ‘Touch Free’ sensor button
  • Illumination Green to Red
  • High impact plastic back box
  • Can be surface or flush fitting
  • Easy clean surface
  • Ideal for general/sensitive areas
  • Screw footprint for flush fitting onto standard back box

Technical Specifications:

  • Contacts : Double pole NONC contacts
  • Output : 4 AMP contact @ 30 V ACDC
  • Etched legend (Various options available)
  • Security screws (Allen key type)
  • Adjustable relay opening times (0.5 to 20 seconds)
  • Adjustable proximity distance (3 to 12 cm)
  • Internal use only

Manuals/Datasheets:


Manuals and Guides

More Manuals and Guides

Lost your manual? Need programming instructions? You can find instruction manuals for nearly all of the products we sell, as well as hundreds more at manuals.easygates.co.uk

Product Specifications

Physical and Performance Attributes

Weight238 grams
Dimensions (L x W x H)85 × 85 × 28 mm
