NiceHome SOLEKIT Solar Power Kit
The NiceHome SOLEKIT uses solar power to run automated system, without the use of electrical mains power. It can supply electrical energy continuously and can be used anywhere (for example to automate a gate situated far from the electrical mains).
The NiceHome SOLEKIT uses solar power to run automated systems without the use of electrical mains power. It can supply electrical energy continuously and can be used anywhere (for example to automate a gate situated far from the electrical mains).
Designed for use with NiceHome automations for gates, garage doors, sun awnings and similar products.
The system comprises a photovoltaic panel and an electric battery:
- the photovoltaic panel is a device able to convert solar energy directly into electrical energy.
- the battery is a device that stores the electrical power produced by the photovoltaic panel during the hours of sunlight, making it available at any time of the day, including days with bad weather. A LED on the front section and an internal buzzer indicate the various charge/discharge conditions of the internal battery. The rear of the battery is fitted with 4 holes for wall-mounting. The battery can be fixed permanently or suspended on hooks to enable future removal and transport. To facilitate transport, a handle is fitted and two separable connectors to enable quick detachment of the panel and automation.

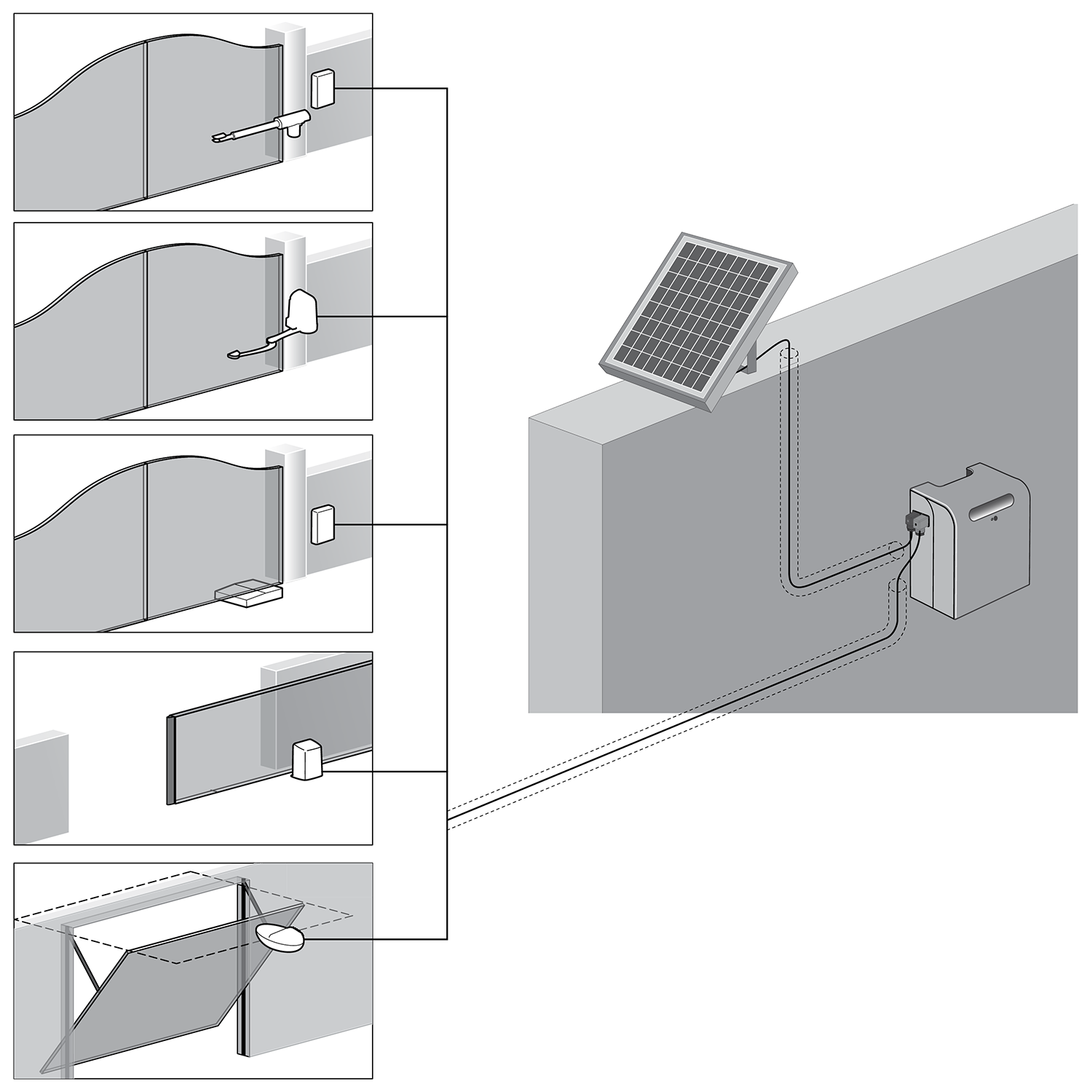

Click Diagram To Enlarge
Rated voltage: 24 V
Maximum current: 10 A
Rated battery capacity: 20 Ah
Protection rating: IP 44
Operation temperature: from -20°C to +55°C (when charging using the back-up power supply unit: from 0°C to +40°C)
Complete recharging time: approx. 15 hours (when using the back-up power supply unit)
Dimensions: 258 mm x 235 mm x 180 mm
Weight: 14 kg
SoleKITB PHOTOVOLTAIC PANEL
Rated voltage: 24 V
Maximum power: 10 W
Operation temperature: from -40°C to +85°C
Dimensions: 354 mm x 290 mm x 28 mm
Weight: 1,4 kg
Manuals and Guides
Physical and Performance Attributes
|Protection Rating (IP)||44|
|Mounting Type||Surface Mounted|
|Operating Temperature||Battery: -20°C ~ +55°C Panel: -40°C ~ +85°C|
