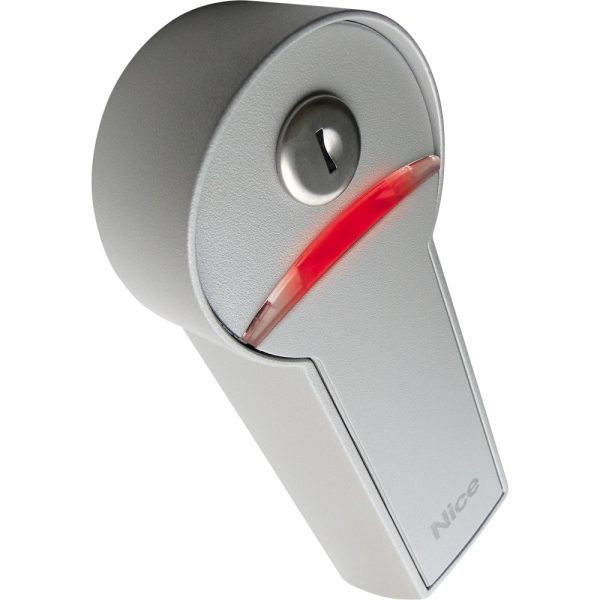

NiceHome KS200KIT External Gate Release for Filo 400 & 600 Motors

The NiceHome KS-200KIT is a key-operated selector switch with cord-type release for external gate release during blackout For Filo 400 / 600 and Maestro 300 gear motors.

£57.60 incl. VAT. £48.00 excl. VAT

SKU: KS200KIT Categories: , Tag:

Description

The NiceHome KS-200KIT is a key-operated selector switch with cord-type release for external gate release during blackout for Filo 400 / 600 and Maestro 300 gear motors.

The KS200KIT can be operated using a key switch with courtesy light or a release switch. When the key is turned from vertical psition about 30°, two contacts are available: one in clockwise direction, and the other in the opposite direction. When the key is turned further (in either direction) the handle will open, and the release system will function.

Kit Contents

Kit includes lock, 2 keys and cable.

Technical Specifications

Courtesy light supply: Between 12V and 36Vdc, 12V and 28Vac
Protection: class IP55
Working temperature: -20°C … +50°C (without ice forming)
Maximum contact voltage: 50V – V
Maximum contact: current 1A
Lock Combinations: 250.000

Manual

View NiceHome KS200KIT Installation Manual

Product Specifications

Physical Attributes

Weight30 grams
Dimensions

Click Diagram To Enlarge

NiceHome KS-200KIT Dimensions

NiceHome KS-200KIT Dimensions

Mounting TypeSurface Mounted
