Nice OXIBD Receiver + 2 x ON3EBD Remote Controls
The Nice OXIBD is compatible with all Nice control units with SM connector and so can also make existing Nice automation bidirectional. OXIBD receivers can be used as signal repeaters to increase the operating distance between the transmitters and other Nice bidirectional receivers.
£99.54
Description
The Nice OXIBD is compatible with all Nice control units with SM connector and so can also make existing Nice automation bidirectional. OXIBD receivers can be used as signal repeaters to increase the operating distance between the transmitters and other Nice bidirectional receivers.

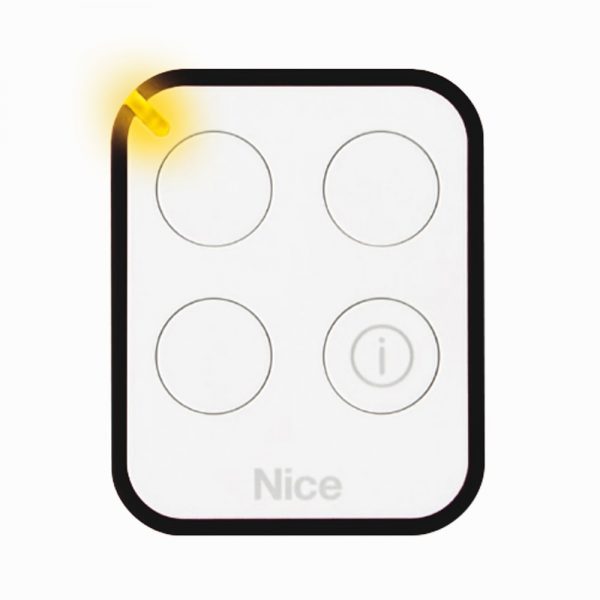

Includes 2 x ON3EBD Transmitters The Nice bidirectional transmitter is a radio control system for gate and door automation.
Can replace the Nice OXI receiver.
Features:
- Nice Mesh Technology: The Nice bidirectional radio protocol with mesh technology has numerous advantages:
- extension of the radio range to 500m (max.10 Hops)
- confirmation by the automation of correct command reception;
- the possibility of checking automation status at any moment;
- high security, thanks to the encrypted communication
- low energy consumption in standby.
- Ergonomic design: antenna connectors, key and programming LED inconvenient practical positions.
- Maximum flexibility: can memorise up to 750 bidirectional transmitters or 1024 unidirectional transmitter
Technical Specs:
- Frequency: 433.92 Mhz
- Input impedance: 50 Ω
- Sensitivity: -108 dBm
- Encoding: BD, O-Code, FloR, TTS, Flo, Smilo
- Number of channels: 4 (on “SM” plug-in connector)
- Power supply: 5 Vdc
- Current draw: 50 mA (max)
- Protection class: IP 30
Manuals:
Manuals and Guides
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 60 grams |
| Dimensions (L x W x H) | 41.9 × 49.5 × 18 mm |
| Dimensions | 49.5 x 18 x 41.9mm 22g |
| Protection Rating (IP) | 30 |
Electronics Attributes | |
| Power Supply | 5 Vdc |
| Battery Type | CR2032 |
| Number of Batteries | 1 |
| Battery Life (Estimated) | 2 years (with 10 transmissions per day) |
Remote Control, Radio & Receiver Attributes | |
| Coding Type | Rolling / Hopping Code |
| Radio Frequency | 433.92 MHz |
| Remote Body Colour | White, Black |
| Remote Button Colour | White |
| Number of Buttons | 4 |
| Number of Channels | 4 |
| Number of Users | 750 bidirectional transmitters or 1024 unidirectional transmitter |
| Range | 500 m (max. Mesh network); 35m (if inside a building) |
