Nice M-FAB 3024 Hi-Speed Gate Kit

Motor Voltage:
24v
Max Weight:
300KG
Max Length:
3M

The Nice M-FAB HS is a high-speed underground gate opener kit for swing gates with leaves up to 3m or 300kg.

Ideal for intensive use and quick manoeuvres: 90° opening in about 8* seconds.

£1,433.52 incl. VAT. £1,194.60 excl. VAT

Accessories

Nice Era One ON2E Remote Control
£29.40 incl. VAT. £24.50 excl. VAT
Nice Era EPMB BlueBUS Surface-Mounted Photocells
£57.60 incl. VAT. £48.00 excl. VAT
Nice Era PPH3 Aluminium Photocell Post (500mm)
£64.62 incl. VAT. £53.85 excl. VAT
Nice EDSWG Keypad
£82.80 incl. VAT. £69.00 excl. VAT
Nice Era ELAC ELDC Flashing Light
£42.18 incl. VAT. £35.15 excl. VAT
Nice IT4WIFI Interface Side
£91.74 incl. VAT. £76.45 excl. VAT
Nice Solemyo SKYCE - Solar Power Kit
£474.00 incl. VAT. £395.00 excl. VAT
Nice PLA11 Horizontal Electric Lock
£82.80 incl. VAT. £69.00 excl. VAT
Nice PLA10 Vertical Electric Lock
£82.80 incl. VAT. £69.00 excl. VAT

SKU: M-FAB3024HS-DKIT Categories: , Tags: ,

Description

Up to 3x Faster!

Fast and efficient motors open your gates in mere seconds.

Commercial and High-Traffic Urban Areas

Sleek & stylish design, ideal for frequent use.

Fully Compatible with our Safety Edge Range

High-speed, high safety & high peace of mind. Together as one.

The Nice M-FAB HS is a high-speed underground gate opener kit for swing gates with leaves up to 3m or 300kg. This version in particular is from the new ‘High Speed’ range from Nice, meaning that it can operate at a super high speed offering a huge improvement on opening and closing times! (Up to 86% Faster!)

Ideal for intensive use and quick manoeuvres: 90° opening in about 8* seconds.

*Up to 86% faster, conditions and previous motor/kit and current state of motor / kit means that this figure is variable.

The kit is totally compatible with the previous Metro series. There is total freedom of choice, with the options to release from both the inside and the outside, and is simple to use as a result of the mechanical stop system. The kit is electromechanical with irreversible gear motors made of new IP67 waterproof die cast aluminium. Ideal to use in all conditions thanks to the stainless steel finish with a layer of cataphoresis paint for extra protection.

This is the 24 Vdc version with magnetic encoder, making it perfect for intensive use whilst also compatible with the control unit Moonclever MC824H.

The features of the 24 Vdc version include:

  • Single key, simple programming.
  • Easy understanding of opening and closing limit positions.
  • Automatic fault diagnostics.
  • Programming of pause time.
  • Pedestrian Pass Door.
  • Slows down upon opening and closing
  • Obstacle detection with dual technology
  • Optional rechargeable batteries for operation in the event of power failure.
  • Provision for connection of latest generation resistive sensitive edges.

Kit Includes:

  • 2 x ME3124 24v Motor
  • 2 x MECF Foundation Boxes
  • 2 x ON2E Two channel remote controls
  • 1 x MC824H Control Panel
  • 1 x EPMB Pair of Photocells
  • 1 x OXI Receiver
  • 2 x MEA3 Lever type release keys

Product Specifications

Physical Attributes

Weight25.00000000 KG
Dimensions

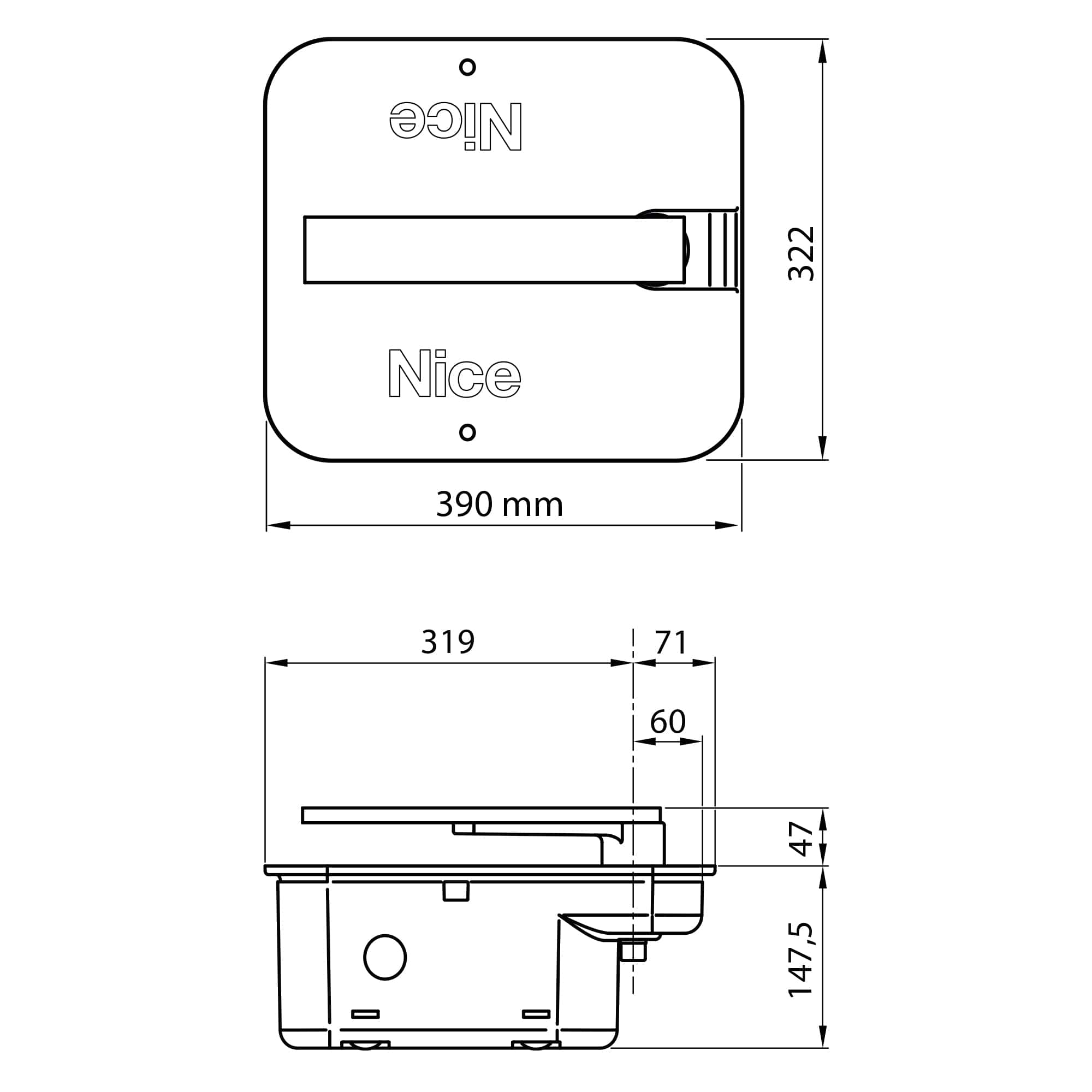

M-Fab Hi-Speed Dimensions Diagram

M-Fab Hi-Speed Dimensions Diagram

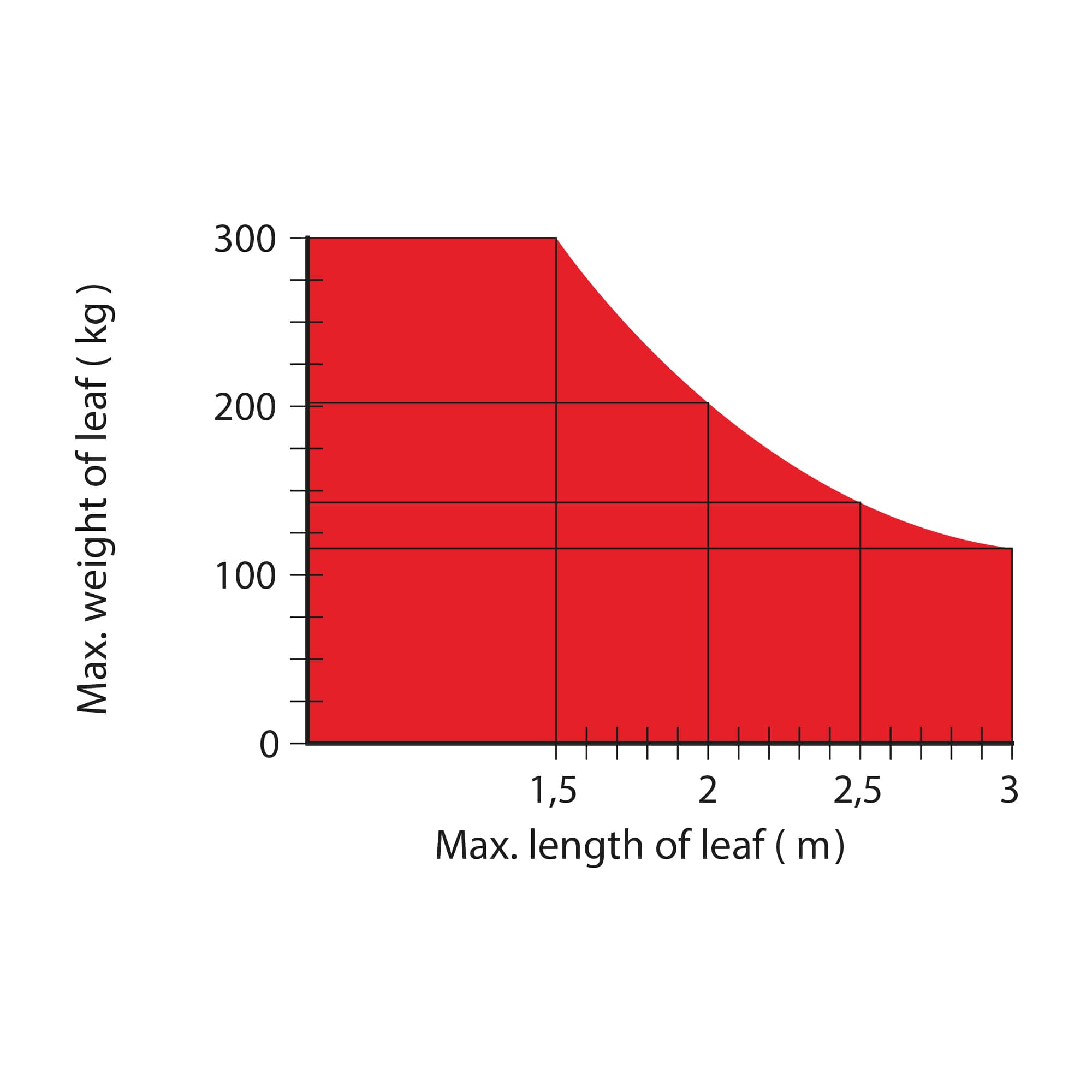

M-Fab Hi-Speed Max Gate Weight Diagram

M-Fab Hi-Speed Max Gate Weight Diagram

Protection Rating (IP)IP67

Electronics Attributes

Power Supply24 VDC
Max Power170
Max Absorption6 A
Operating Humidity-20°C / +50°C

Gate Opener Attributes

Automation TypeUnderground
Kit TypeDouble
Max. Gate Leaf Length (M)3M
Max. Gate Weight (KG)300KG

Motor Attributes

Motor Voltage24v
Duty Cycle / Work Cycle80 cycles per hour
Motor Speed>> 2.6 RPM <<
Torque180Nm
