Nice HykeKit 1 HYKE-DKIT

Motor Voltage:
24v
Max Weight:
330KG
Max Length:
3.5M
  • Nice branded articulated double gate opener kit
  • Ideal for large columns
  • Adjustable articulated arms for max flexibility
  • Built-in obstacle detection

£1,756.19

Accessories

Nice HykeKit 1
This item: Nice HykeKit 1 HYKE-DKIT
£1,756.19
£1,756.19
Nice IT4WIFI Interface Side
£139.79
Nice BiDi WiFi Pocket Programming Interface
£40.36
Nice Era One ON2E Remote Control
£30.88
Nice Era EPMB BlueBUS Surface-Mounted Photocells
£60.48
Nice Era PPH3 Aluminium Photocell Post (500mm)
£67.85
Nice EDSWG Keypad
£124.67
Nice PS124 24v Backup Battery
£113.14

SKU: HYKE-DKIT Category: Tag:

Description

Nice HykeKit 1 24v DC articulated gate opener kit, for use with swing gate that have leaves up to 3.5m in length or 330kg in weight.

The adjustable articulated arms of these motors make them ideal for large columns where reach is an important factor to consider.

Features

  • Adjustable arm size for maximum flexibility
  • Compatible with optional solemyo (solar powered) kit or PS124 battery back-up
  • Built-in control panel
  • Built-in obstacle detection
  • Easy to operate release lever

Kit Contents

  • HK7024 + HK7224 electro-mechanical gear motors for external mounting
    • HK7024: with control unit
    • HK7224: without control unit
  • 2 x ON2E 433.92 MHz, 2 channel transmitter
  • 2 x EPMB photocells with provision for connection via Nice BlueBUS
  • 1 x OXI receiver up to 4 channels with connector, without built-in transmitter

Manuals & Datasheets

Product Specifications

Physical and Performance Attributes

Weight33 KG
Dimensions

Click diagrams to enlarge

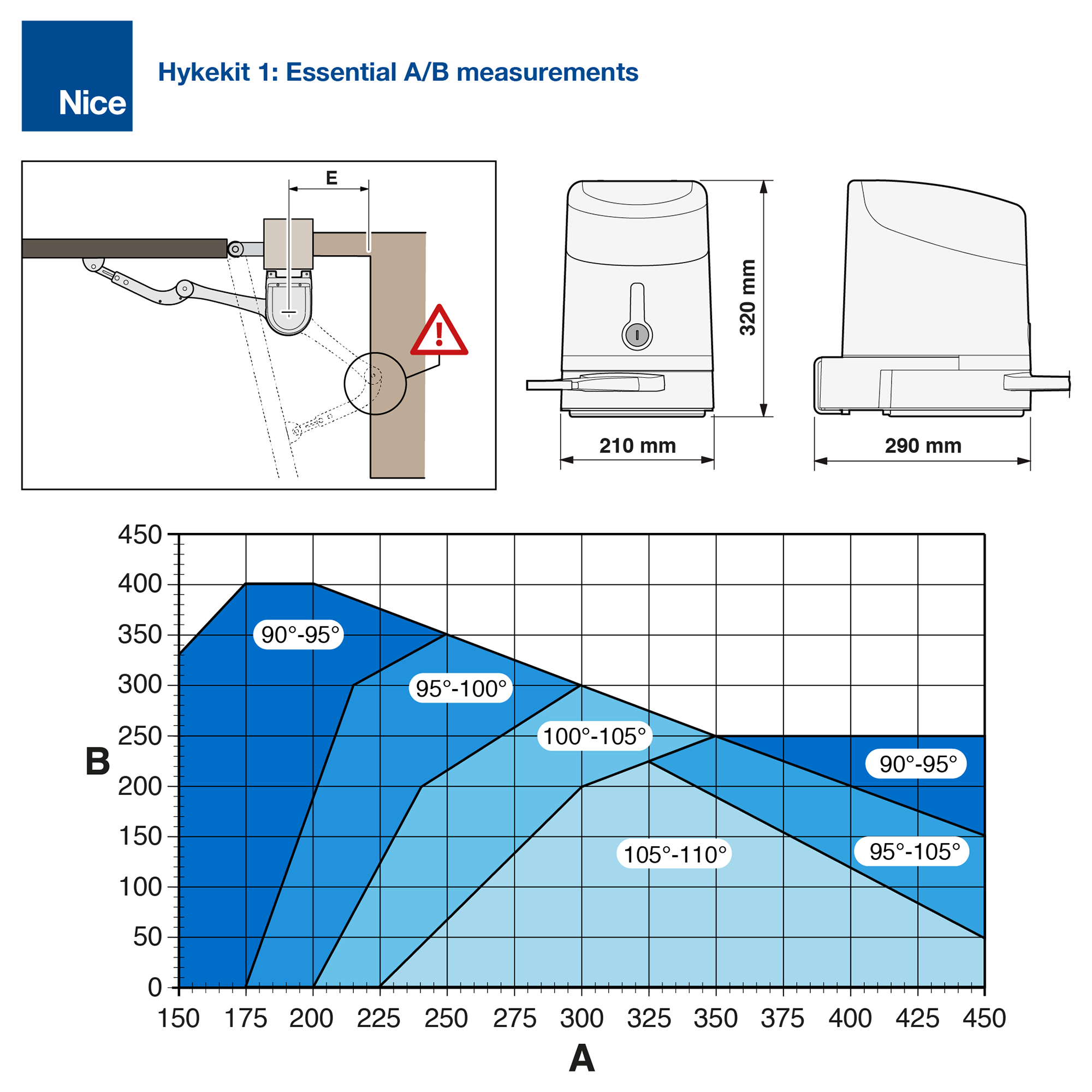

Hykekit 1 Essential A/B measurements

Hykekit 1 Essential A/B measurements

Protection Rating (IP)54
Operating Temperature-20°C to +50°C

Electronics Attributes

Max Absorption1.5 (HK7024), 6 (HK7224)
Max Power300 (HK7024), 140 (HK7224)

Motor Attributes

Duty Cycle / Work Cycle

40 cycles per hour

Motor Voltage24v
Automation TypeArticulated
Kit TypeDouble
Max. Gate Leaf Length (M)3.5M
Max. Gate Weight (KG)330KG
Motor Model Number(s)

HK7024, HK7224

Number of Leafs2
