MHouse WG2S 24v Swing Gate Double Kit

  • MHouse 24v Electric Gate Openers
  • Installer Friendly
  • Max Gate Leaf: 2.2m
  • Max Gate Weight: 250kg

Unfortunately, this product has either been discontinued, or we no longer stock it.

Compatible Replacements

NiceHome Aria 400 Kit Contents

NiceHome Aria 400

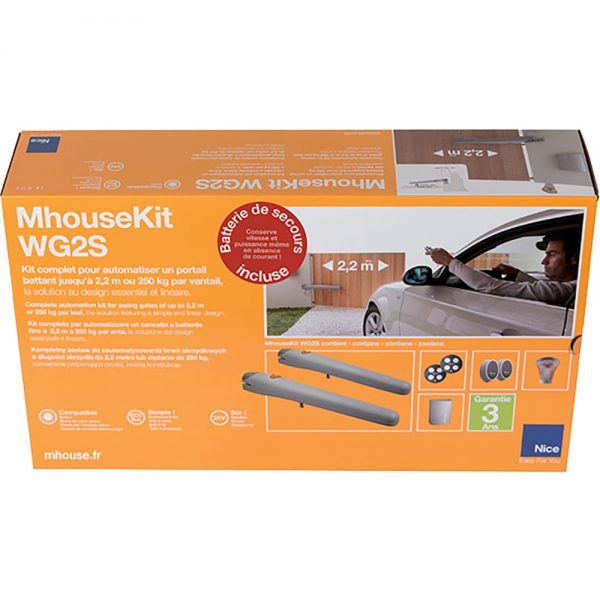

The MHouse WG2S is a 24v ram type double kit designed for automation of residential swing gates.

The WG1SK motors are highly resistant to the elements thanks to an IP54 protection rating.


  • Low voltage, 24v connections allow for installation of safety accessories, such as our safety edge range.
  • Includes automatic obstacle detection feature
  • The ECSBus system allows for easy installation of accessories (such as photocells and keypads) with just two wires.
  • Features adjustable, timed automatic closing function, as well as partial opening function
  • Easy installation and programming of up to 150 additional remotes.
  • Only 15 seconds from closed to fully open (in optimal conditions, with 90° opening)
  • Auto-diagnostic system identifies and immediately signals any connection errors or malfunctions
  • Auto-programming feature automatically calculates the most suitable operating parameters for each gate

What’s included

  • 2 x WG1SK Electro-Mechanical Worm Gear Motor
  • 1 x CL2S Control Panel With Integrated Receiver

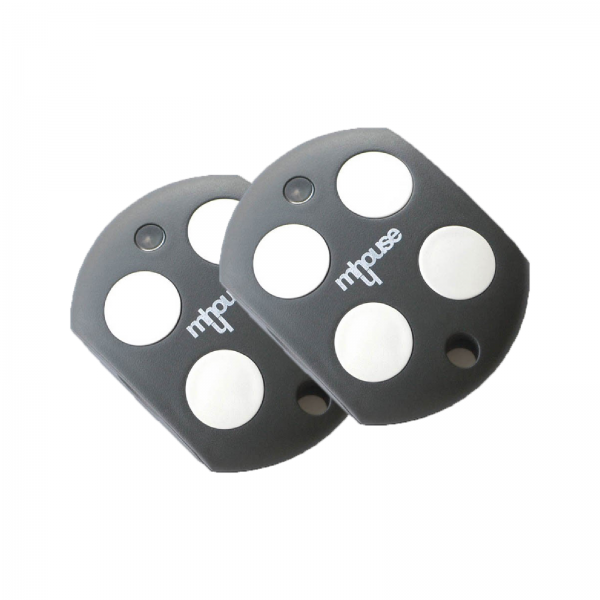

  • 2 x GTX4 4 Button 433.92MHz Remote Control
  • 1 x PH100 Pair of Infrared Safety Photocells
  • 1 x FL100 Adjustable Flashing Light With Incorporated Aerial

Alternative model numbers


Product Specifications

Physical and Performance Attributes

Weight15 KG
Dimensions (L x W x H)85 × 729 × 100 mm

WG1SK Operator

Dimensions (mm) – 729 x 100 x 85

Weight (kg) – 6

Protection Rating (IP)54
Operating Temperature-20°C to +50°C

Electronics Attributes

Max Absorption3.5A
Max ConsumptionNot Available
Max PowerNot Available
Power Supply24v DC

Motor Attributes

Motor Voltage24v
Automation TypeRam
Kit TypeDouble
Max. Gate Leaf Length (M)2.2M
Max. Gate Weight (KG)250KG
