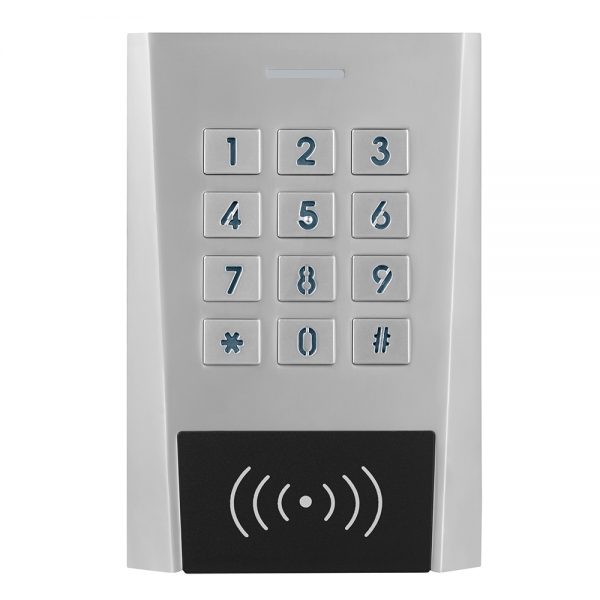

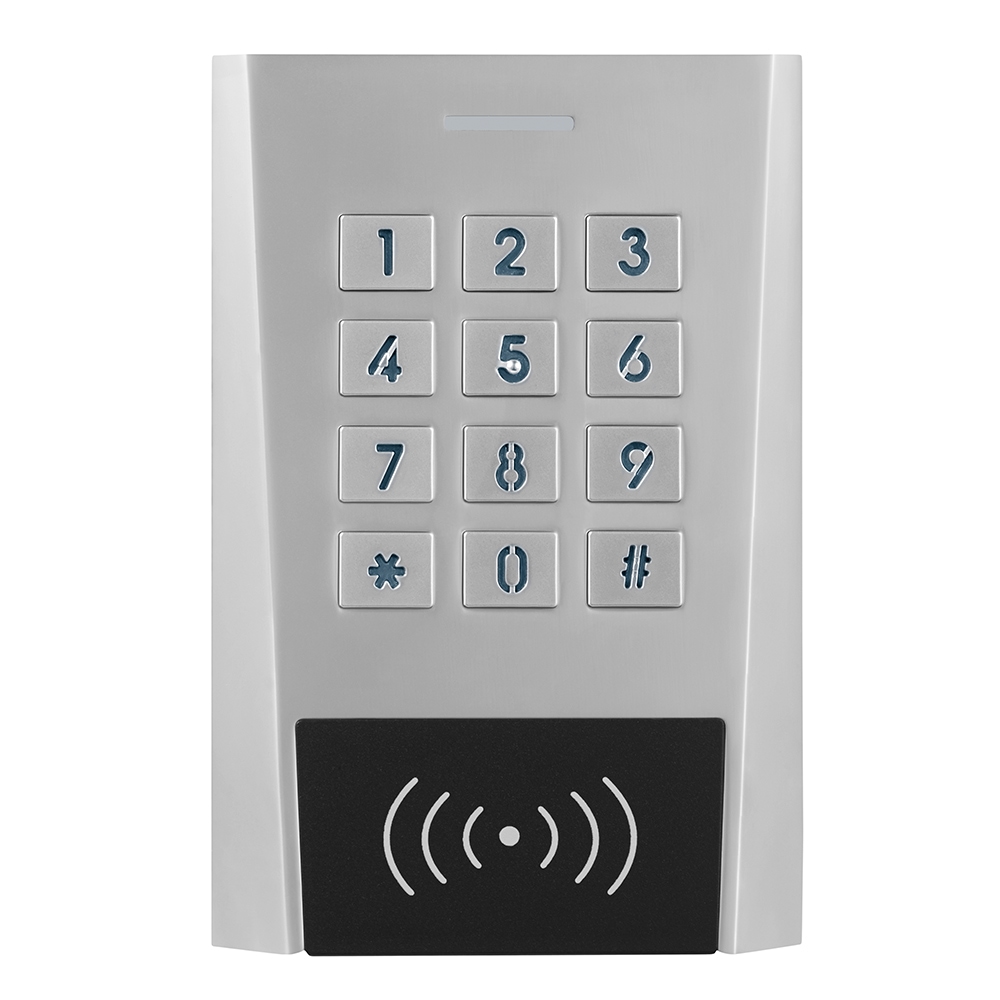

EasyGates AXK3-D – Outdoor Dual-relay Digital Keypad

The XK3-D is a dual-entry access control system featuring a card reader and a keypad. It can accommodate up to 999 users with a variety of access methods (Card, PIN, or Card + PIN).

£90.00

Accessories

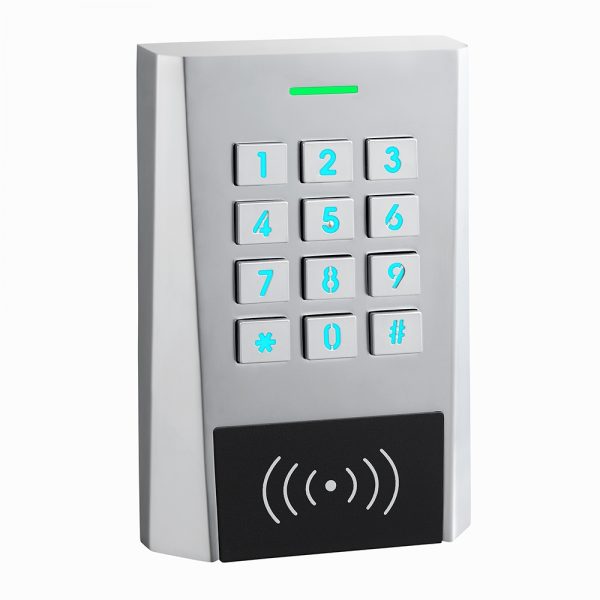

AXK3-D Outdoor Keypad from the side
This item: EasyGates AXK3-D - Outdoor Dual-relay Digital Keypad
£90.00
£90.00
Prastel KT-10 - Proximity Tag
£4.20

SKU: XK3-D Category: Tag:

Description

Anti-Vandal

Weather Resistant

Wide Temperature Range

Two Door Setup

The AXK3-D is a dual-entry access control system featuring a card reader and a keypad. It can accommodate up to 999 users with a variety of access methods (Card, PIN, or Card + PIN).

AXK3-D Outdoor Keypad from the side

Two relays for two Doors

With two relay outputs for a two-door arrangement, you have total control over your property, allowing for more complicated configurations and access control options.

Tamper Proof Buzzer

The AXK3-D's built in buzzer provides peace of mind by sounding if the device is tampered with. The buzzer volume can be adjusted between 5 different levels.

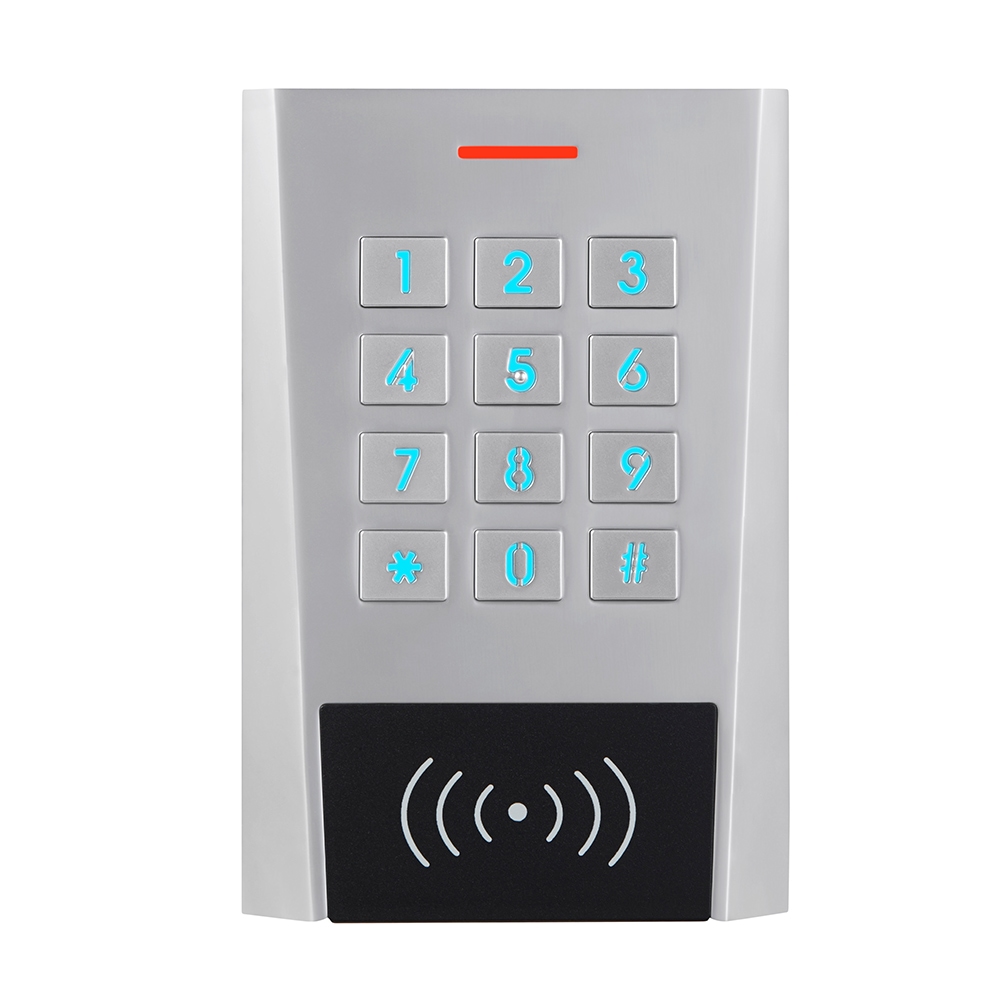

AXK3-D Outdoor Keypad Tamper Proof

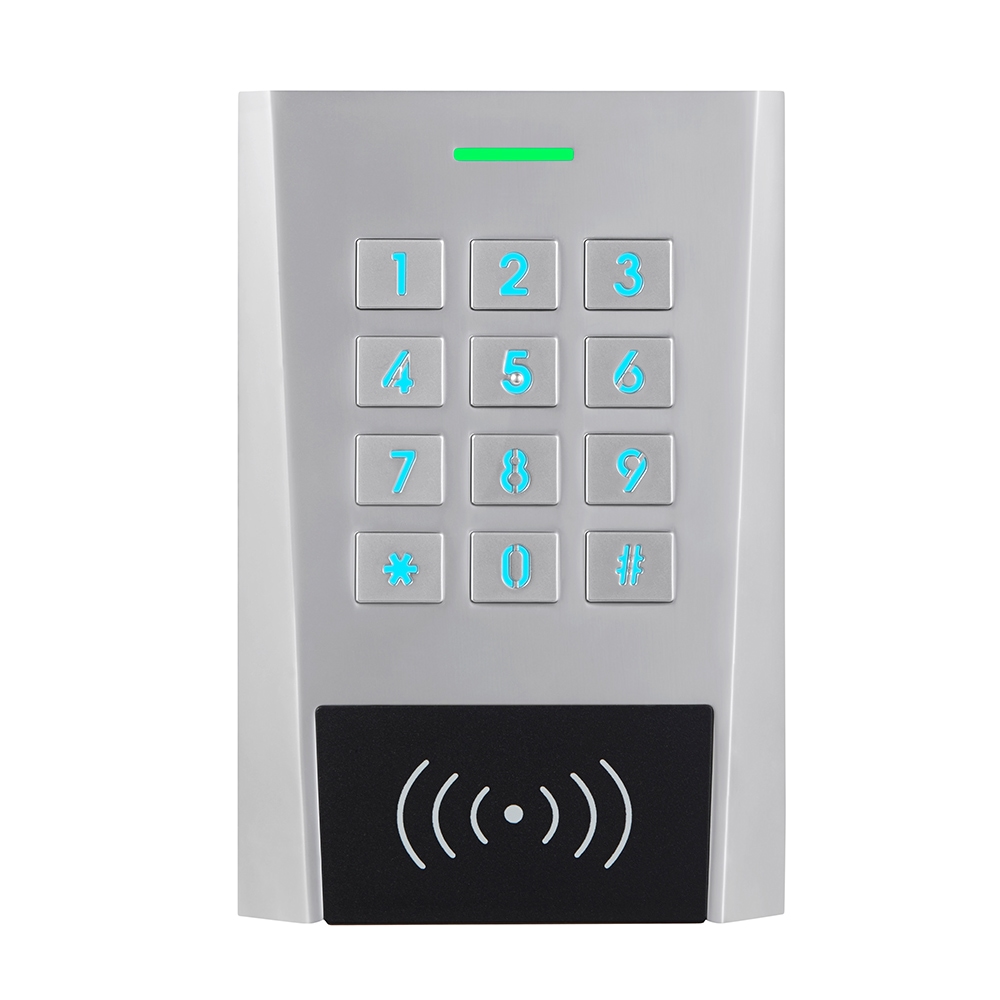

AXK3-D Outdoor Keypad Backlit Keypad

No More Fumbling

Thanks to the AXK3-D's integrated backlit keypad, you no longer have to worry about fumbling in the dark, or providing an external light source for users and visitors.

Weather & Vandal Proof

The AXK3-D's IP66 rated protection and vandal proof design protect the keypad, no matter what the weather or vandals have in store for it.

AXK3-D Outdoor Keypad Water Proof

Features

  • Waterproof, IP66 rated
  • Anti-vandal metal casing
  • All-metal keypad buttons
  • Two relay connections with Pulse and Toggle modes.
  • Support for up to 999 users.
  • 18 digit PIN.
  • 125KHz card type EM card / RFID tag
  • LED status display
  • Built-in light dependent resistor (LDR) for anti-tampering
  • Integrated alarm and buzzer output with adjustable volume
  • Backlit keypad may be set to always ON, always OFF, or turn off after 60 seconds.
  • Relay 2 supports an external doorbell.
  • Resistance to low temperatures (-40°C)
  • Voltage (AC/DC): 12-28V AC/DC

Manuals & Datasheets

AXK3-D Outdoor Dual-relay Digital Keypad Manual
AXK3-D Outdoor Dual-relay Digital Keypad Quick Setup Guide



Product Specifications

Physical and Performance Attributes

Weight500 grams
Dimensions (L x W x H)22 × 75 × 114.5 mm
Protection Rating (IP)66
Vandal Resistant?Yes
Mounting TypeSurface Mounted
Operating Temperature-40℃ ~ 60℃
Operating Humidity0%RH~98%RH

Electronics Attributes

Voltage12~28V AC/DC

Access Control Attributes

Number of Codes999
Code Length1~8 digits
Number of Relays2
Relay OutputNO & NC
Adjustable Relay TimingsYes
Backlit KeysYes
