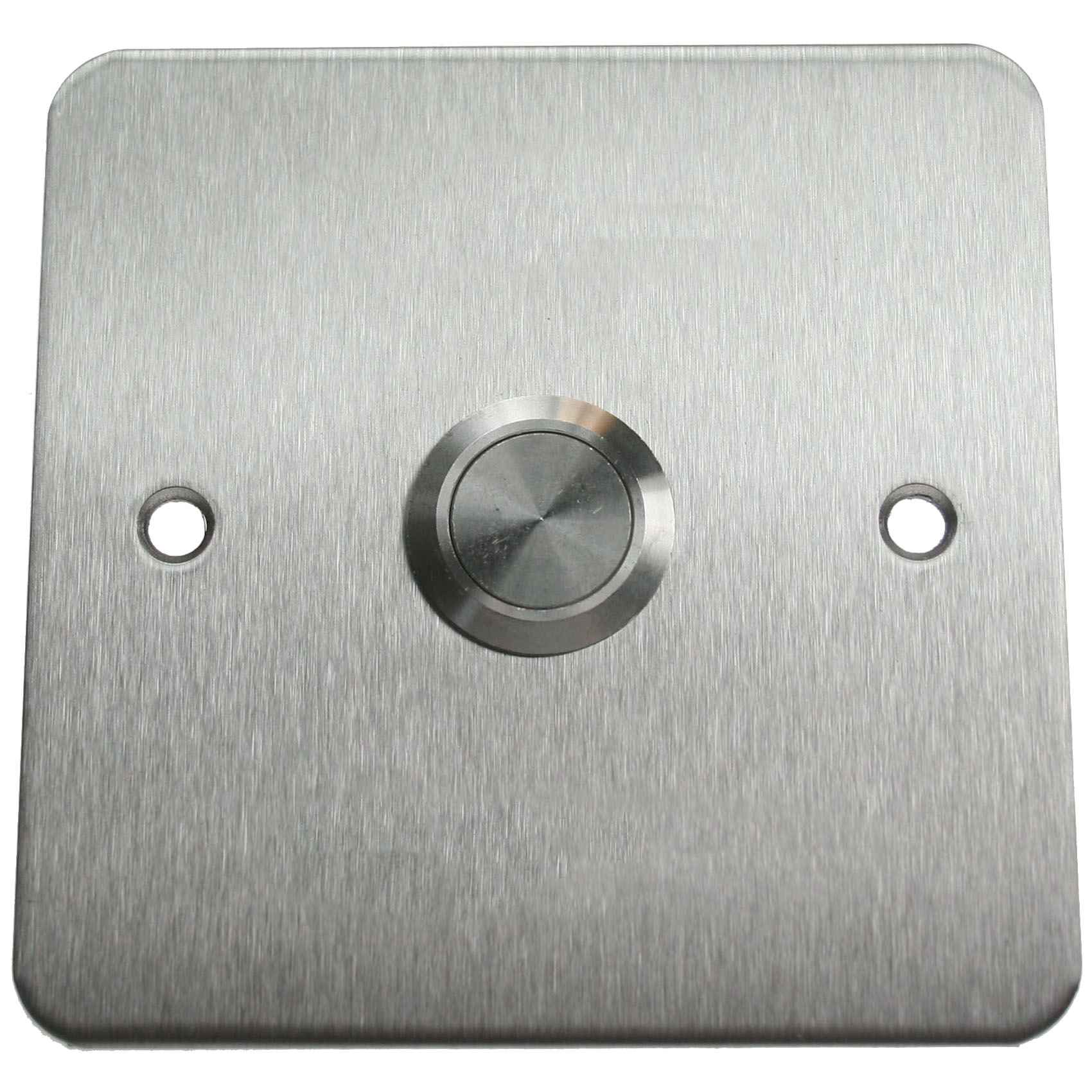

The DRB002F-NL is part of the DRB series of exit buttons.
- Brushed stainless steel design
- 19mm∅ button
- Blank surface area, no legend / engraving
- Flush mounted as standard, surface mount housing available (DRB-SH). For more information, click here.
- COM/NO/NC change-over-contacts
- Single gang
- Cables included
- Max. Rating: 5A/125/250 Vac
- Contact Resistance: 50mΩ Max (Initial)
- Operating Life (Mechanical): Over 100,000 times
- Operating Travel: 2.7mm
Alternative Model Numbers
Physical and Performance Attributes
|Dimensions (L x W x H)||85 × 85 mm|
|Mounting Type||Flush Mounted|
