AES Cellcom Prime 7 Series Advanced GSM Audio Intercom System

This state-of-the-art GSM intercom system dials up to four phone numbers in succession on roll-over whenever a visitor pushes the call button on the intercom.

User friendly and hassle-free, you can have total remote management over your intercom via phone calls and free Android and iOS smartphone apps for residents and installers – wherever you are in the world.

£502.74£685.14 inc. VAT.

Clear
SKU: PRIME7 Category: Tags: ,

Description

7th Generation AES Prime GSM Intercom

The AES Cellcom Prime 7 series is an advanced GSM audio intercom system. This system has one call button and is, therefore, suitable for one household or business.

This state-of-the-art GSM intercom system dials up to four phone numbers in succession on roll-over whenever a visitor pushes the call button on the intercom.

User friendly and hassle-free, you can have total remote management over your intercom via phone calls and free Android and iOS smartphone apps for residents and installers – wherever you are in the world.

Ideal for installations where excavation is not an option, for example, if it is not possible to run long cables from the property to the gate.

Features

AES Cellcom Prime 7 Logo

7th Generation New Features

  • New FOTA – upgrade firmware via SMS
  • New Increased keypad codes & prox card capabilities
    • Only on models with keypads/proxy-readers
    • 250 permanent codes / prox cards
    • 250 time-restricted codes / prox cards
    • 50 temporary codes / prox cards
  • New Increased caller ID capacity
  • New Get notifications on up to 4 phone numbers when a relay is triggered, latched, or unlatched
  • New Free AES PRO smartphone app for homeowners and installers available on Android and iOS

AES PRO App Phone

AES PRO App Icon

Key Features

  • World-leading GSM audio intercom system
  • Dials up to four phone numbers in succession on roll-over whenever a visitor pushes the call button on the intercom
  • Never miss a visitor again with mobile calling, ensuring that you are always available to greet guests – even when you are not at home!
  • Works using any standard pre-pay / pay-as-you-go or contract GSM nano-SIM card

Advanced Technology

  • Set automatic gate open & close times, great for the work commute or school run
  • Do-not-disturb watershed time, ideal for eliminating nuisance calls during unsociable hours
  • User history log to your phone, so you can always keep track of who is coming and going
  • Issue time-restricted and temporary codes to suit your needs, allowing access for only particular days/times

Quality Design

  • BS316 marine grade brushed stainless steel construction for strength and durability – available with or without black gloss acrylic trim
  • Sleek, architectural curved design with classy back-lighting effect and illuminated buttons for ease of use in the dark
    • Gloss acrylic finish models have a blue backlighting effect
    • Stainless steel finish models have a white backlighting effect
  • Reliable IP55 weather-resistant protection against dust and water

Reliable Operation

  • Manage settings directly from the smartphone app
  • Latching and momentary operating functions
  • High signal strength antenna supplied as standard for reliable reception
  • Operates via 4G network

What’s Included

  • 1 x Intercom (outdoor speech panel)

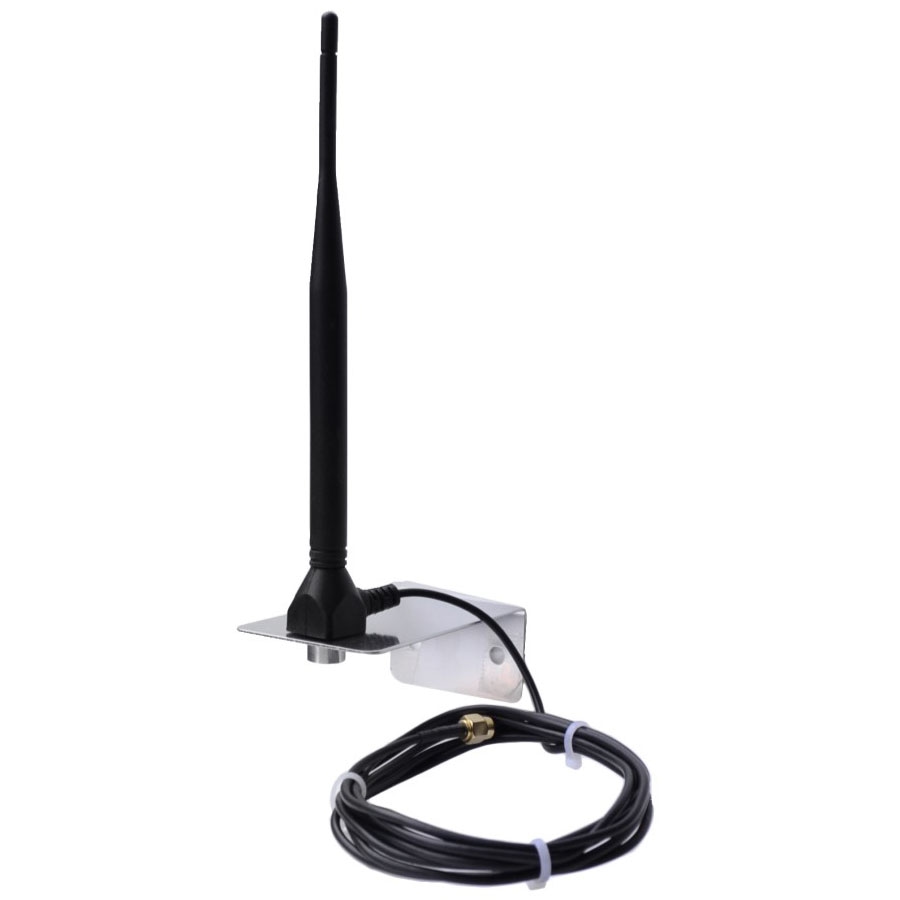

  • 1 x High signal strength antenna
  • 1 x 24v DC power supply
  • 1 x Instruction manual

Manuals, Datasheets & More

Prime 6 vs Prime 7 Comparison

Prime 6 Prime 7
Permanent caller ID numbers capacity increased. 100 250
Permanent Keypad codes / Prox cards capacity increased. 200 250
Time-Restricted Caller ID numbers / Keypad codes / Prox cards capacity increased. 20 250
Temporary Keypad codes / Prox cards capacity increased. 30 50
Do Not Disturb (Active Times) increased. 1 5
Automatic Relay Times capacity increased. (e.g. 25 latch and 25 unlatch times) 40 50
Ability to check Automatic Relay Times. No Yes
Notification message sent when relay is unlatched, as well as triggered and latched. No Yes
Ability to add notification phone numbers. 1 4
Ability to check Notification Number(s). Ability to cancel call via push button. No Yes
Trigger, latch and unlatch SMS replies added. Ability to disable. No Yes
DTMF latching disabled by default.
DTMF double confirmation set up as default.
No Yes
Ability to add up to a 6 character name for permanent and time-restricted codes, and time-restricted prox (not mandatory). No Yes
Permanent caller ID numbers capacity increased. No Yes

Product Specifications

Physical Attributes

Weight2.5 KG
Dimensions

Click To Enlarge Diagrams

AES AB/AS Panel Dimensions

AES AB/AS Panel Dimensions

AES ABK/ASK Panel Dimensions

AES ABK/ASK Panel Dimensions

Protection Rating (IP)55
Mounting TypeSurface Mounted

Electronics Attributes

Max Consumption80mA standby current, 300mA on dial out, 2amp peak demand
Power Supply24V DC (24v DC adaptor included)

Performance Attributes

Operating Temperature-25°C to +55°C

Intercom Attributes

PSU IncludedYes
Intercom TypeAudio

Keypad Attributes

Number of Codes550
Number of Relays2
Adjustable Relay TimingsYes
Relay OutputNO & NC
Backlit KeysYes
Wireless?Yes
Code Length4 digit
LatchingYes
