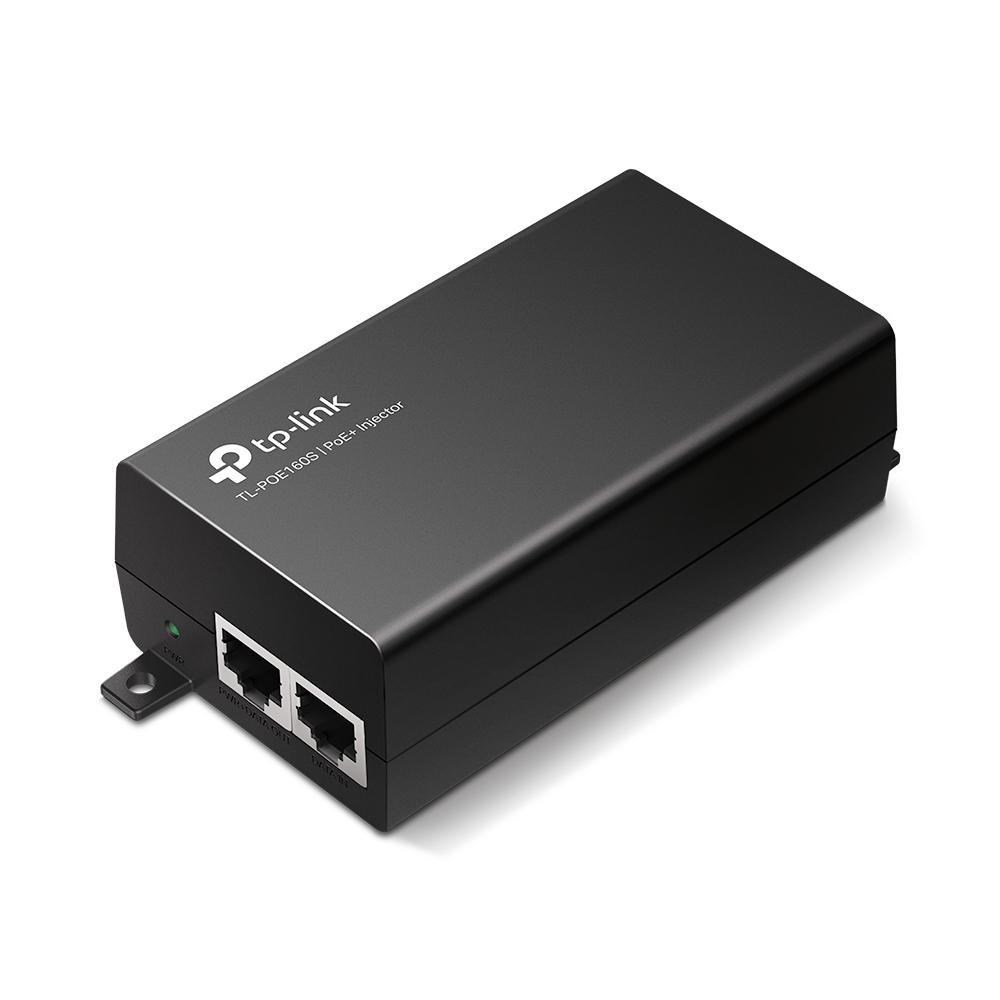

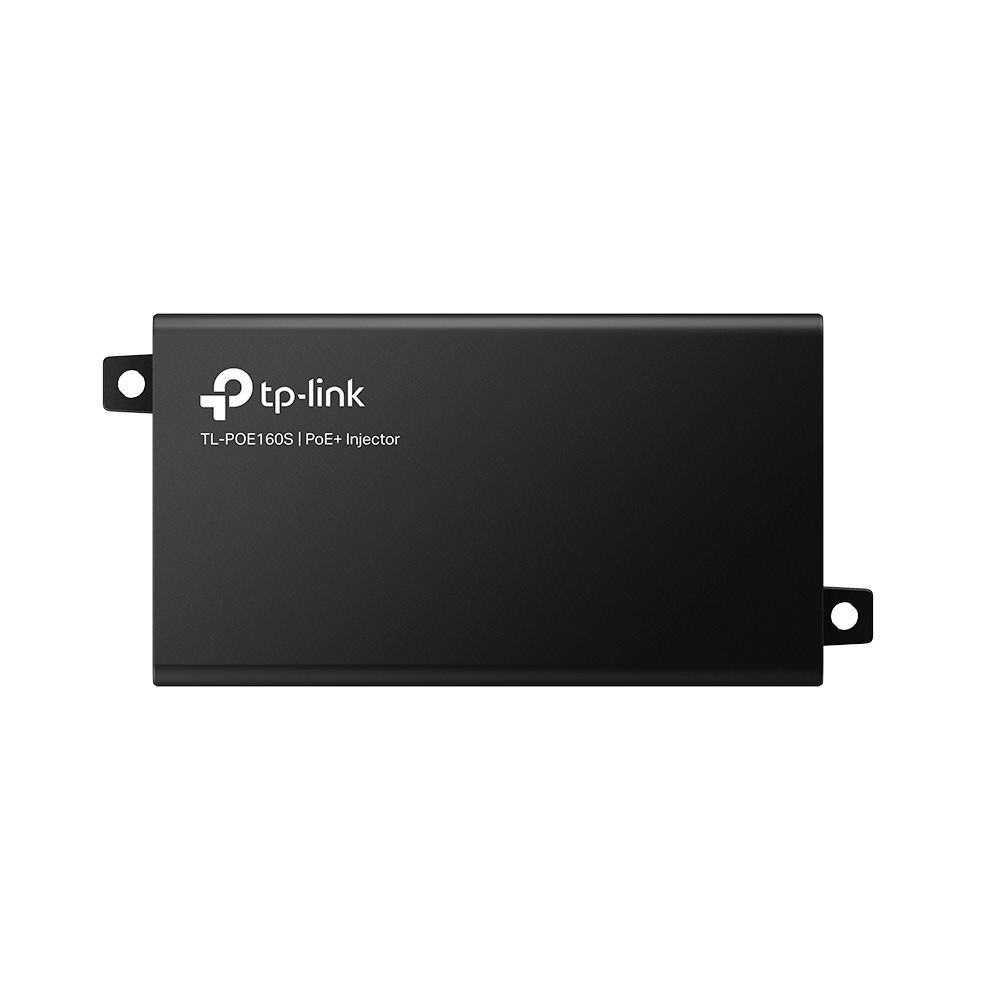

TP-Link PoE+ Injector TL-POE160S

The TP‑Link TL‑POE160S is a Compact Gigabit PoE+ injector designed to deliver both power and data to a single PoE‑enabled device over one Ethernet cable.

£19.99

SKU: TL-POE160S Category:

Description

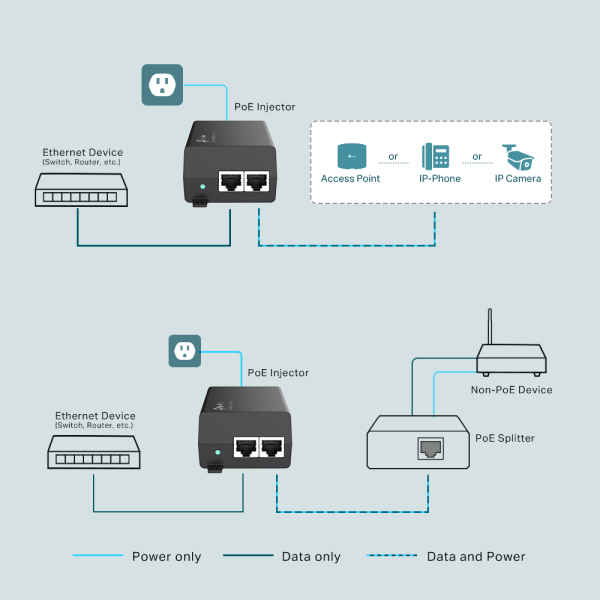

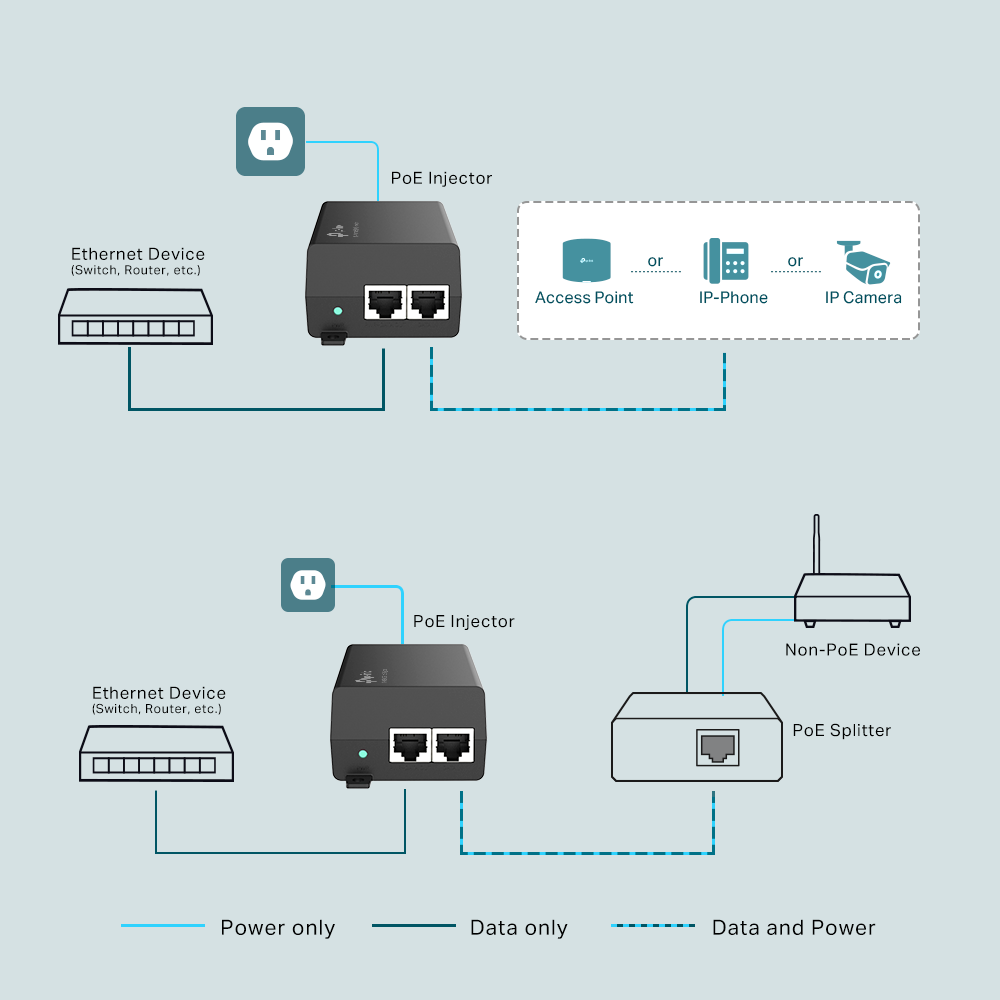

The TP‑Link TL‑POE160S is a Compact Gigabit PoE+ injector designed to deliver both power and data to a single PoE‑enabled device over one Ethernet cable. Ideal for scenarios where a PoE switch is not available, it provides a simple and cost‑effective way to power devices such as wireless access points, IP cameras, and VoIP phones.

Supporting Gigabit Ethernet speeds and PoE+ standards, the TL‑POE160S ensures stable data transmission alongside reliable power delivery for higher‑powered devices. Its plug‑and‑play design requires no configuration, allowing for quick and straightforward deployment in both new and existing networks.

With a compact form factor and durable build, the TL‑POE160S is well suited for offices, home setups, retail environments, and small surveillance installations. It offers a practical solution for extending network reach while adding PoE capability without the need for additional switching hardware.



Key Features

  • 2GB ports for faster transmission
  • Compliant to IEEE802.3af/at standards, supplies up to 30 W
  • Transmits data and power simultaneously via Ethernet cable
  • Automatically determines and supplies exact power to meet the needs of the device
  • Wall & desktop mounting
  • Plug & Play Installation
  • Integrated power supply



What’s Included

  • TP-Link PoE+ Injector TL-POE160S
  • Installation Guide
  • Power Cord
  • RJ45 Cable
  • Wall Mounting Kit



Product Specifications

Physical and Performance Attributes

Weight450 grams
Dimensions (L x W x H)125 × 59 × 37 mm

Misc Product Attributes

Category Specification
Network
  • Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3af and 802.3at
Hardware Features

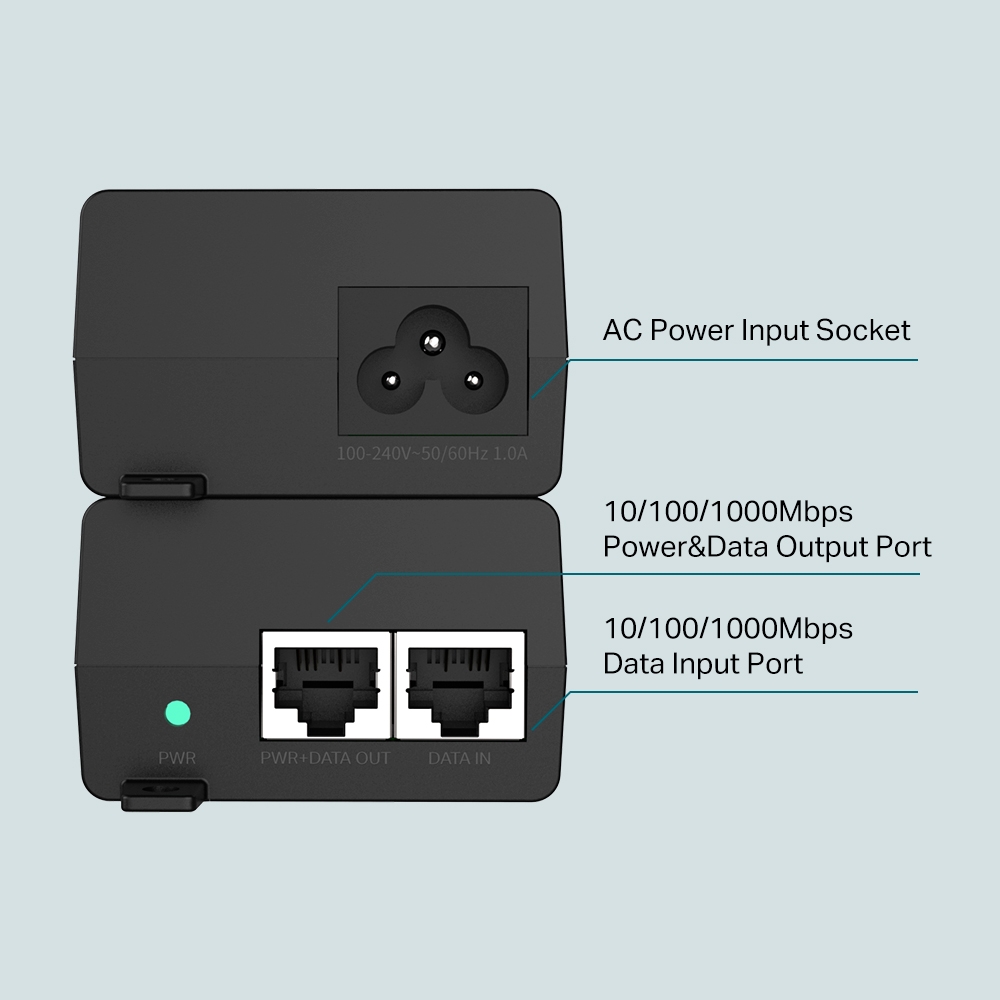

  • Ports: 1 × Gigabit RJ45 data-in port, 1 × Gigabit RJ45 power and data out port, 1 × AC power port
  • Network Media: UTP and STP cabling supported for 10BASE T, 100BASE TX and 1000BASE T up to 100 m
  • Power: Input 100–240 V AC, 50 or 60 Hz, output up to 30 W with automatic power detection
  • Basic Function: Auto sensing algorithm for 802.3af and 802.3at devices, automatic power determination
  • Installation: Wall mounting and desktop placement supported, plug and play operation
  • LED Indicator: On indicates normal power supply, off indicates no power supply
  • Dimensions (W × D × H): 4.9 × 2.3 × 1.4 in (125 × 59 × 37 mm)
General
  • Certifications: FCC, CE and RoHS
  • Operating Temperature: 0–40 °C
  • Storage Temperature: -40–70 °C
  • Operating Humidity: 10–90% RH non condensing
  • Storage Humidity: 5–90% RH non condensing

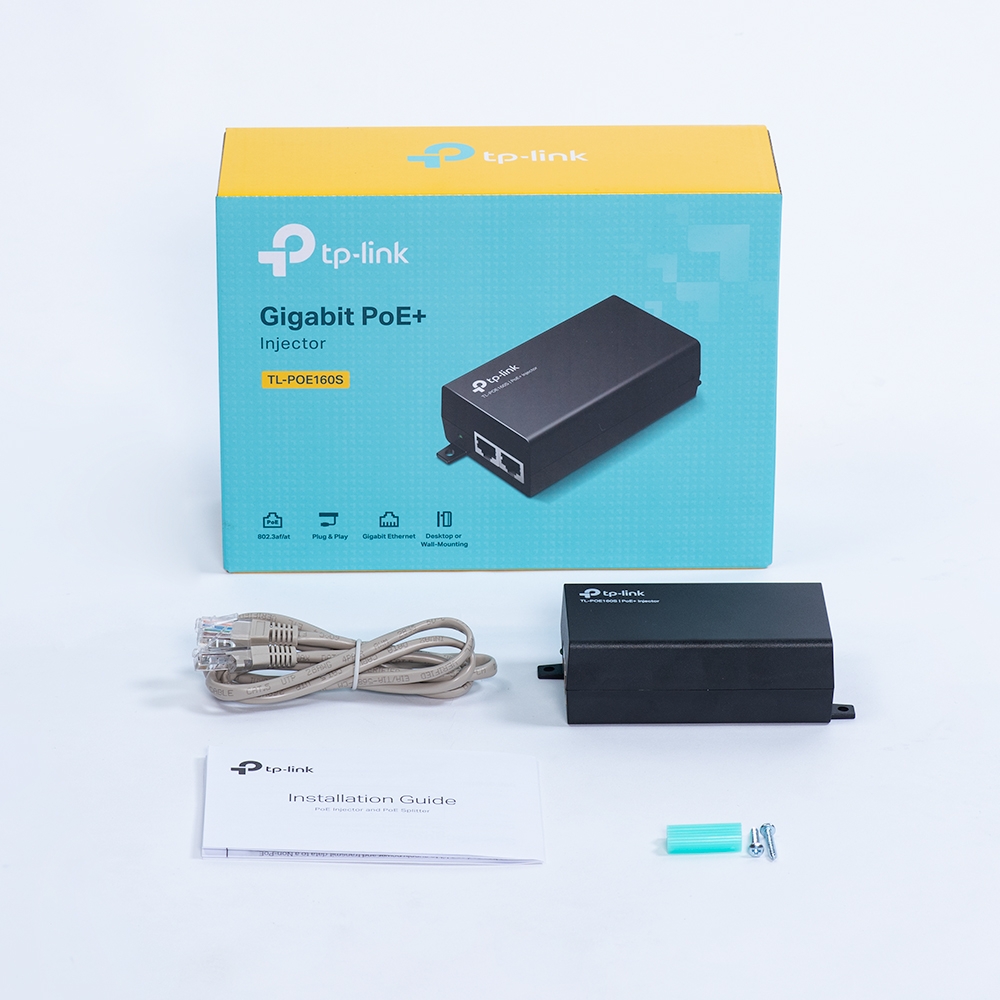

Package Contents
  • PoE Injector TL‑POE160S
  • Power cord
  • RJ45 Ethernet cable
  • Wall mounting kits
  • Installation guide
