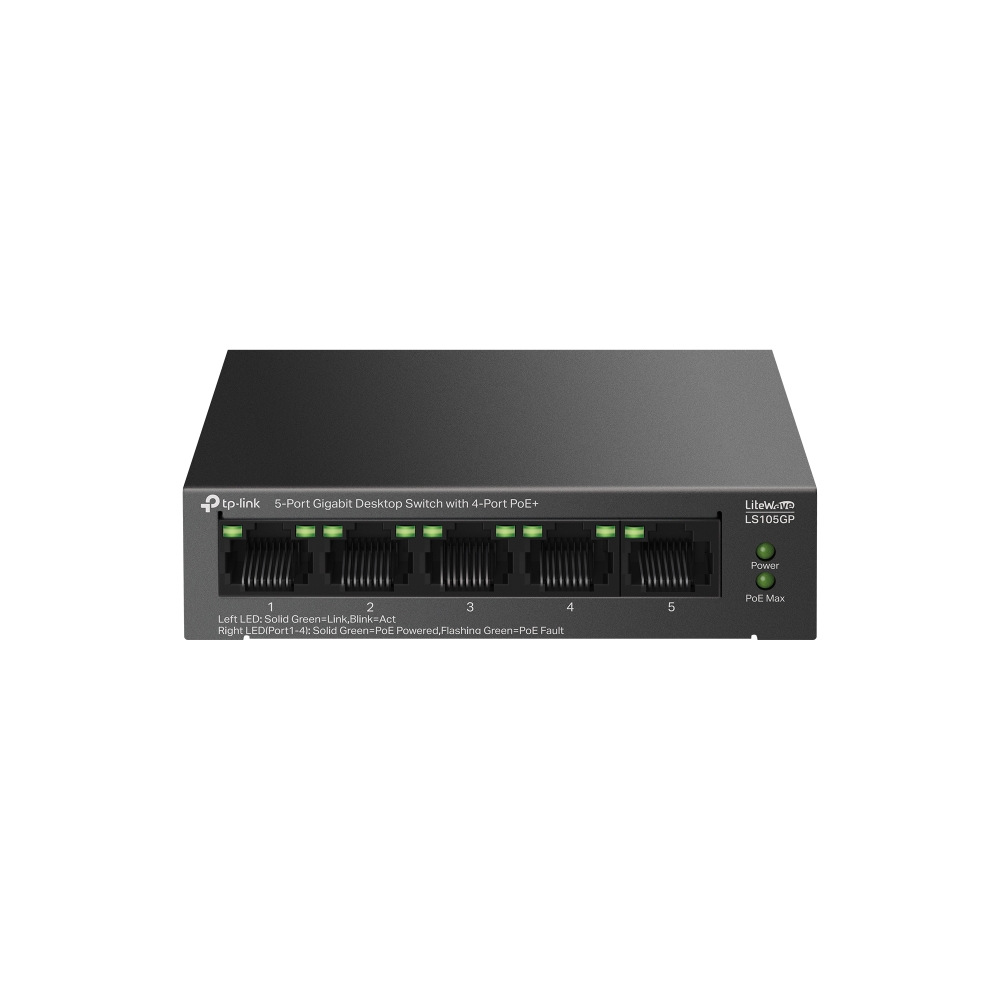

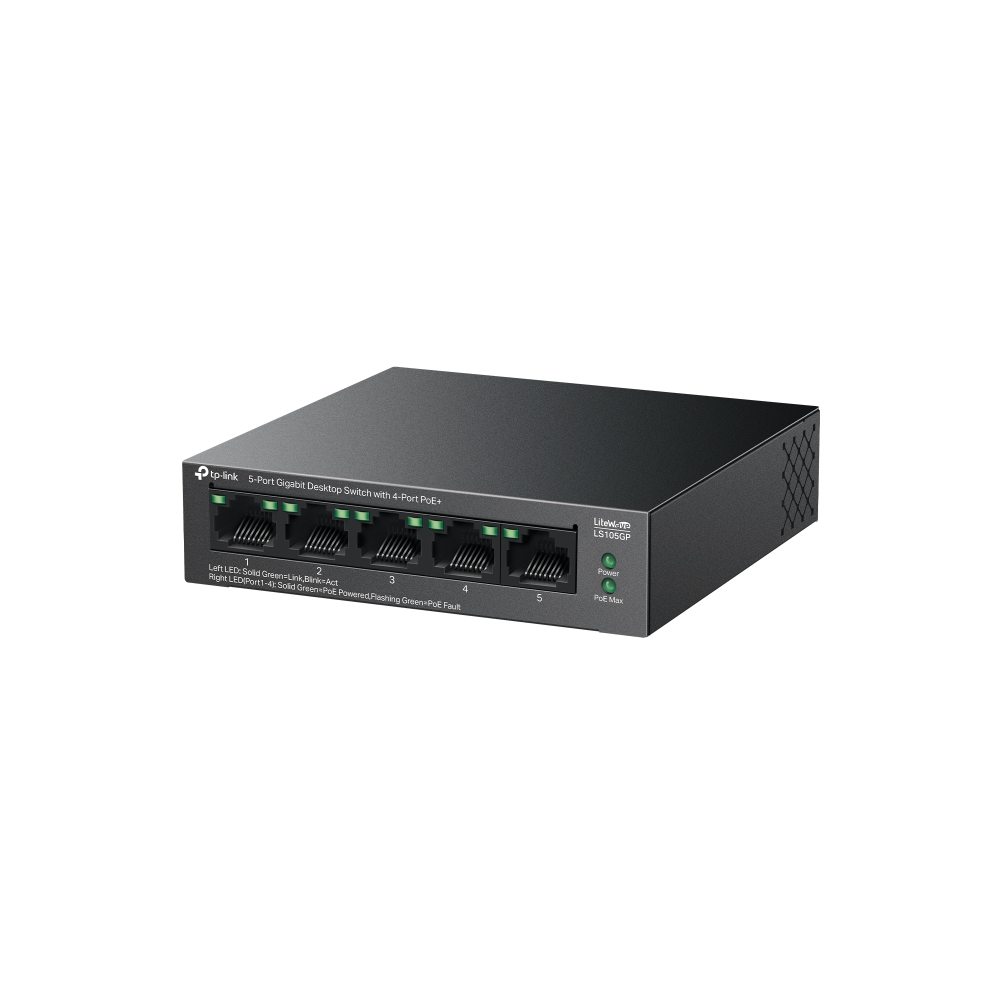

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ LS105GP

The TP‑Link LS105GP is a compact unmanaged Gigabit switch designed for small networks that need straightforward connectivity and PoE power delivery without configuration. With 5 Gigabit Ethernet ports, including PoE+ support, it provides both data and power over a single cable for devices such as IP cameras, wireless access points, and VoIP phones.

£44.99

SKU: LS105GP Category:

Description

The TP‑Link LS105GP is a compact unmanaged Gigabit switch designed for small networks that need straightforward connectivity and PoE power delivery without configuration. With 5 Gigabit Ethernet ports, including PoE+ support, it provides both data and power over a single cable for devices such as IP cameras, wireless access points, and VoIP phones.

Designed for plug‑and‑play deployment, the LS105GP requires no setup, making it ideal for users who want fast, reliable network expansion with minimal effort. Intelligent power management helps protect connected devices by automatically adjusting PoE output based on requirements, ensuring stable operation.Its durable metal housing and fan-less design provide silent, dependable performance, making it well suited for offices, small retail setups, home networks, and surveillance installations. The LS105GP is a practical, cost‑effective solution for adding PoE connectivity and expanding wired networks with ease.



Key Features

  • Five gigabit auto-negotiation ports provide up to 10 Gbps switching capacity.
  • Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices via a single cable. Up to 30 W PoE output is supported by each PoE port.
  • With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
  • Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Simply plug and play for instant connectivity with no configuration required.
  • Fan-less design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
  • Durable metal casing and desktop/wall-mounting design are well-suited for different environments.



What’s Included

  • TP-Link LS105GP
  • Power Adapter
  • Installation Guide



Manuals & Datasheets



Product Specifications

Physical and Performance Attributes

Weight700 grams
Dimensions (L x W x H)99.8 × 98 × 25 mm

Misc Product Attributes

Category Specification
Hardware Features
  • Interfaces: 5 × 10/100/1000 Mbps RJ45 ports, ports 1–4 support 802.3af and 802.3at PoE, auto negotiation and auto MDI MDIX
  • Network Media: UTP and STP cabling for 10BASE T, 100BASE TX and 1000BASE T up to 100 m
  • Cooling: Fanless design
  • Installation: Desktop or wall mounting

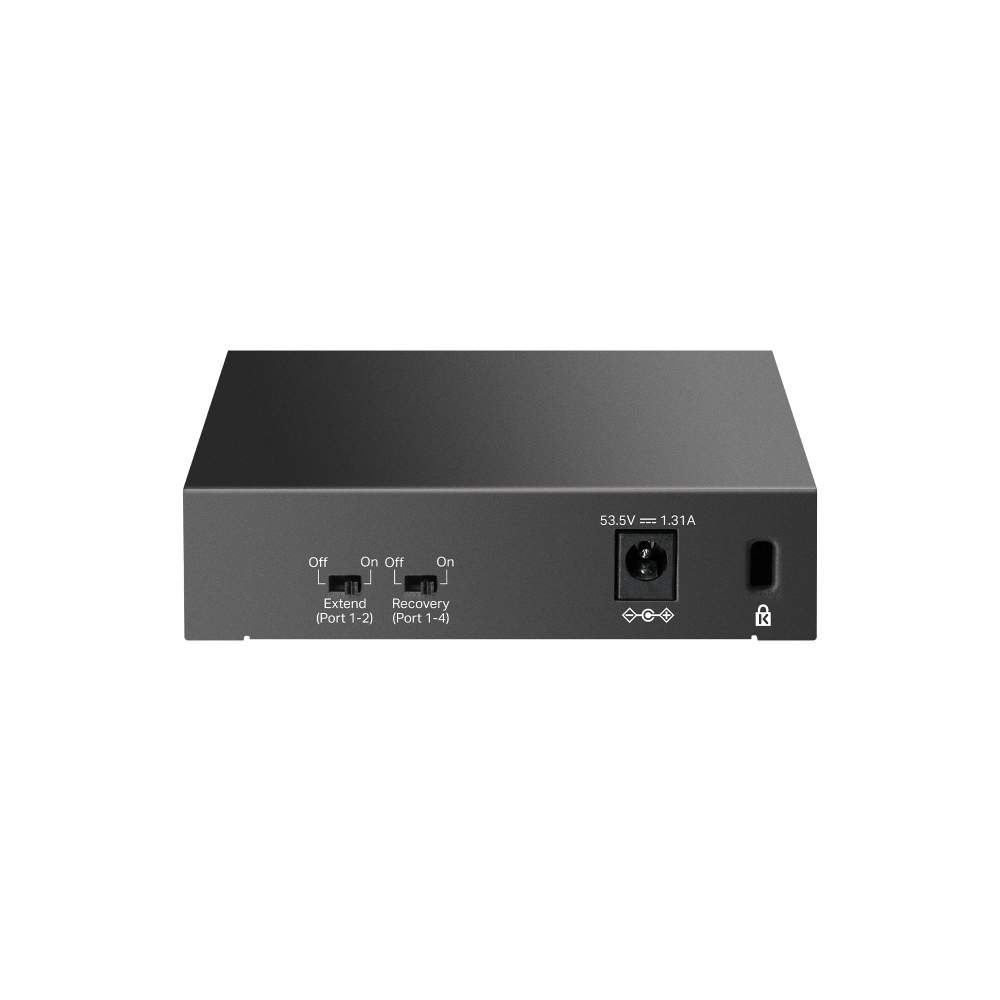

  • Power Supply: External adapter, 53.5 V DC / 1.31 A
  • PoE Capability: 4 PoE ports, up to 30 W per port, total 65 W budget
  • Dimensions (W × D × H): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
  • Max Power Consumption: 4 W idle, up to 74.46 W with full PoE load
  • Heat Dissipation: 13.6 BTU per hour idle, up to 253.16 BTU per hour under load
Performance
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • MAC Address Table: 2K
  • Jumbo Frame: 16 KB
Software Features
  • Extend Mode: Ports 1–2 support up to 250 m PoE and data transmission
  • PoE Auto Recovery: Ports 1–4 automatic reboot for unresponsive devices
  • Compatibility: IEEE 802.3af and 802.3at compliant PD devices
  • MAC Learning: Auto learning and ageing
  • Flow Control: IEEE 802.3x
  • QoS: 802.1p and DSCP prioritisation
  • Multicast: IGMP snooping
  • Energy Efficiency: Green technology support
  • Transmission Method: Store and forward
Others
  • Certifications: FCC, CE and RoHS
  • Package Contents: LS105GP, power adapter and installation guide
  • Operating Temperature: 0 to 40 °C
  • Storage Temperature: -40 to 70 °C
  • Operating Humidity: 10 to 90 percent non condensing
  • Storage Humidity: 5 to 90 percent non condensing
