Sommer S9060 base+ Garage Door Opener

£319.68 £287.71 incl. VAT. £239.76 excl. VAT

Faster. More secure. More intelligent. Brighter. Here comes the garage door operator of the future. The SOMMER base+ operator is the innovative successors of the successful SOMMER operator concept. The intelligent carriage offers plenty of room to connect well-designed accessories. The 3-piece track including carriage, roof control, fixing material (bracket, attachement to header and ceiling mounting unit), push arm and door bracket and two Peral Vibe 4-channel transmitters.

Description

Go to SOMMER base+

base+

Safer, smarter, brighter and faster

The SOMMER base+ is a garage door opener with modular design in mind, the carriage was re-developed from scratch to provide extra room for installing intelligent accessories to customise and improve your experience.

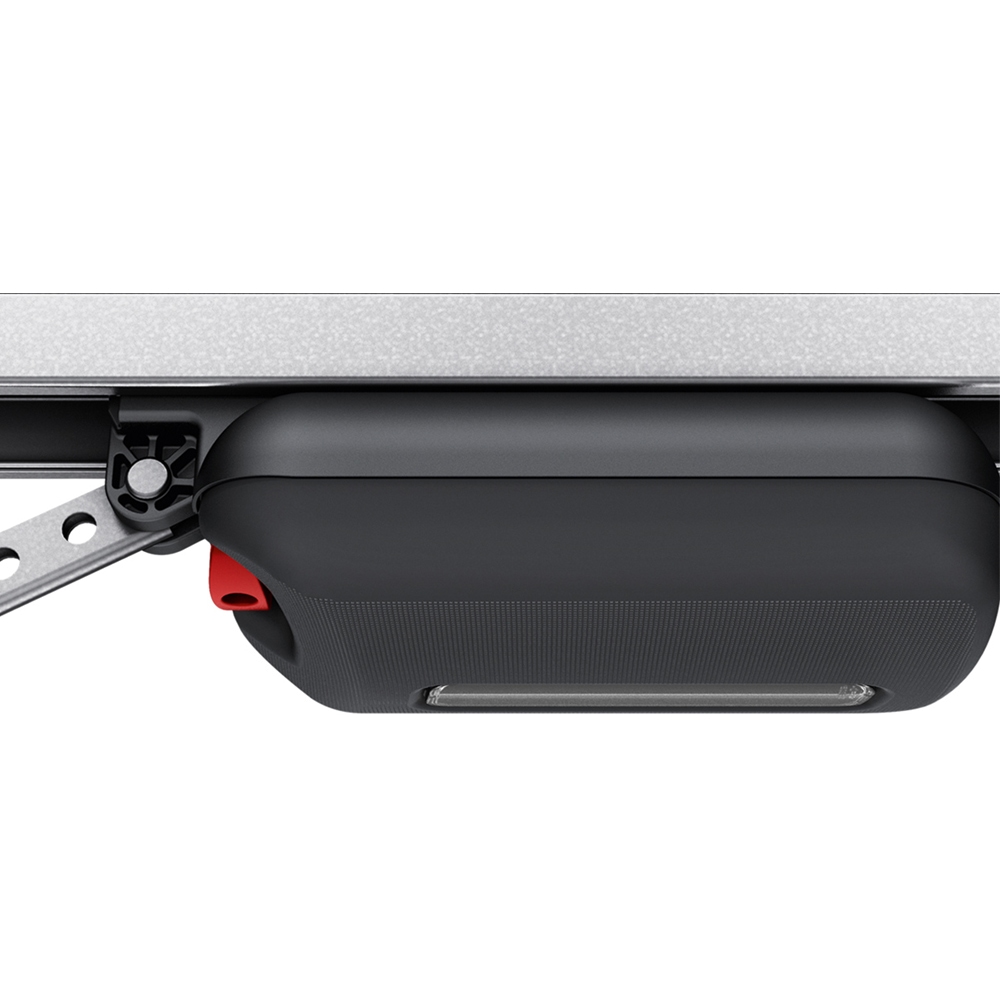

Traveling motor

  • One operator for all kinds of door:
    ceiling sliding doors, swinging doors, sectional doors, up-and-over doors and roller/side sectional doors.
  • Powerful self locking force, active closing function and counter pressure on attempted burglary.
  • Efficient energy saving: <1 watt when in standby mode.
  • Gear-spearing technology for a longer life with less wear.
  • Galvanised, nickel plated chain no loss of friction from use, no need to keep applying oil or retightening the chain.

One box fits all

The SOMMER base+ is an all-in-one, universal garage door operator. The pre-assembled system comes ready-to-use, with fittings for easy wall and ceiling mounting making it an effective solution to all sorts of garage door.

➊ Track

The standard track unit can open sectional doors up to a height of 2,500 mm and open swing doors up to 2,700 mm.

Support for taller doors is supported by using the track extension set.

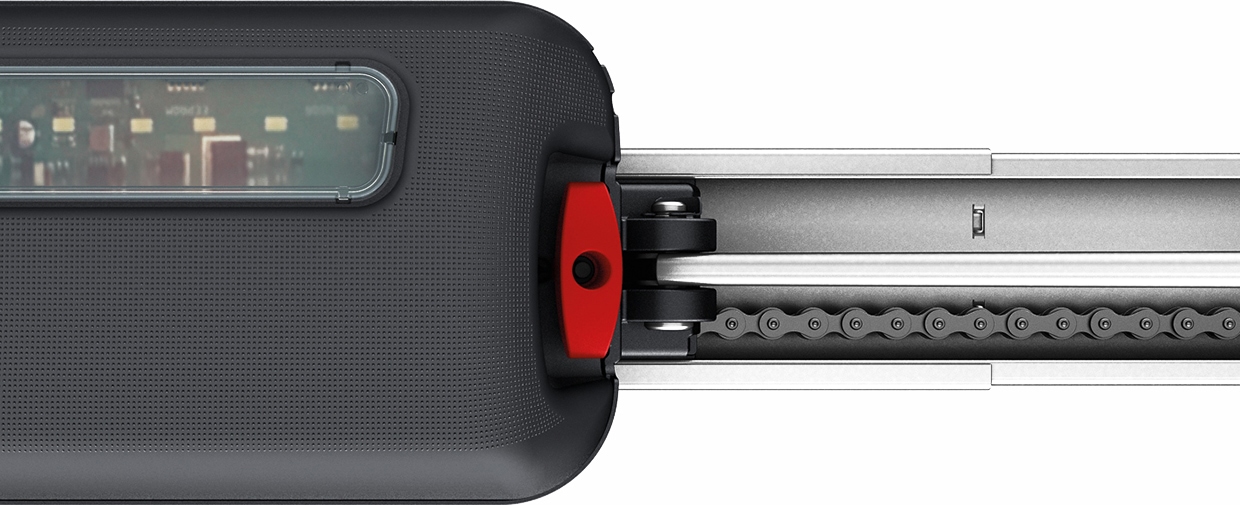

➋  Carriage

The intelligent modular design of the base+ carriage allows for additional connections without extra cabling.

  • Connection for safety contact for the slip door
  • Connection for safety contact strip OSE or 8k2

➌  Ceiling suspension unit

Flexible, versatile and easy to install. The ceiling suspension unit includes:

  • Mounting materials
  • Max ceiling distance: 210 mm
  • For SOMMER base+, pro+, tiger and tiga+

➍  Chain

  • High quality fixed chain.
    (galvanic nickel plated)
  • Wear-free and maintenance-free, pre-tensioned via springs with high tensile strength.

➎  Roof control (optional)

  • Pulse button
  • Warning light 24 V/DC, max. 25 watt
  • 2 or 4 wire light barrier
  • Additional light socket (Lumi base+)
  • Additional relay socket
  • Socket battery pack
base+ safety

Safety

  • The motor has a high automatic locking and active counter-pressure at all points in the attempt of a break-in
  • Option to connect a battery back-up pack for emergency operation in the event of a power failure
  • Option for a locking magnet in the motor which allows it to lock in any position, including even during ventilation function & partial opening.
  • Integrated emergency release, the carriage can be engaged and disengaged in any position
  • Bi-directional, secure SOMloq2 radio system
base+ versatility

Versatility

  • The SOMMER base+ has a wide range of modular accessories for extending its capabilities such as; the Memo for hand-held transmitter memory, the Senso humidity sensor, the Lock a magnetic locking solution or the Lumi+ an additional lighting solution
  • Additional connection options without having spiral cable directly on the carriage, such as a safety contact for the slip door or contact safety edge OSE or 8k2
  • Carriage can be detached from the rail without track disassembly
  • Easy shortening or lengthening of the track for smaller or larger properties respectively with the rail extension kit
base+ intelligence

Intelligence

  • The SOMMER base+ features an automatic learning process: self-learning force curve offers continual adjustment for factors such as summer / winter operations
  • Speed profiles have been optimised for quick opening and secure closing
  • All operations are compliant with regulation standards
  • The door operation is automatically calibrated through direct input of measured operating forces
  • Pre-selectable door profiles are available via DIP switch
  • Fitted with active braking for moving doors
  • Gear wear and tear is reduced with soft START and STOP functions
  • Automated end position detection is available when programming the door CLOSE function, closing pressure can also be individually adapted to structural conditions.

Faster. More secure. More intelligent. Brighter. Here comes the garage door operator of the future. The SOMMER base+ operator is the innovative successors of the successful SOMMER operator concept. The intelligent carriage offers plenty of room to connect well-designed accessories. The 3-piece track including carriage, roof control, fixing material (bracket, attachement to header and ceiling mounting unit), push arm and door bracket and two Peral Vibe 4-channel transmitters.

Features

  • Safety thanks to the encrypted radio control system
    The garage door operator with bidirectional, rolling encrypted radio control system provides maximum security. The SOMloq2 radio control system transmits bidirectionally, which means that feedback on the send command or the door position can be received. The rolling code is encrypted with 128 bits, the same encryption that is used for online banking. Backward compatibility of the transmitter to the Somloq Rolling code radio control system is always available.
  • Countless extensions
    Useful extensions such as the Memo memory space extension, the Senso humidity sensor and countless other accessory modules are also available. Additional connection options are located directly on the carriage (slip door contact and safety contact strip OSE or 8k2). Thanks to our modular system, extensions can be installed quickly and easily. Since the connections are located directly on the carriage, no spiral cables are necessary, saving you time and money.
  • Battery pack for power failures
    During a power failure, the operator can be run in emergency mode with our battery pack and the door will never fail.
  • Restriction of closing forces
    The system monitors the closing forces according to EN 12445 by means of electronic motor monitoring. The control mechanism creates maximum security.
  • Emergency release
    Thanks to the integrated SOMMER emergency release system, the carriage can be engaged and disengaged in any position. This ensures security in any position, even if there is a power failure.
  • Environmental and cost efficiency
    The energy-saving operator consumes about < 1 watt of energy a year in standby mode, amounting to about €1.80 in electricity costs. It is thereby not only inexpensive to operate, but also environmentally-friendly.
  • Safety thanks to travelling lighting
    Lighting is integrated in the carriage which provides constant lighting to the danger zone. The LED lighting is equipped with 6 individual LEDs which are switched to two safety circuits - double is always better.
  • Smooth-running and long-lasting
    Thanks to the gear-saving technology, the garage door operator is extremely quiet, low-wear and has a very long lifetime. The operator is completely maintenance-free.
  • Optimal application of force
    The motor track carriage moves itself along a permanently tensioned chain so that no frictional loss and no loss of power occurs as does with a revolving chain.
  • Clean chain
    The galvanised chain is maintenance-free and does not need to be oiled. This prevents oil spots from getting on the door or vehicle.
  • Improved fire prevention
    Due to the flame resistant materials, the operator offers a high safety factor and protects from fires starting.
  • Universal use – compatible with almost all door types
    The base+  garage door operators are well-suited for sectional doors, overhead doors, up-and-over doors, swinging doors, hinged double doors, side-opening sectional door, side-opening doors and sliding gates in buildings. You can achieve optimised door parameters with the easy DIP switch function directly on the operator.

Technical Specs

  • Max. pull and pushing force: 600 N
  • Max. travel path: 7,500 mm
  • Sectional door: 4,500 mm / 2,500 mm
  • One piece door: 4,500 mm / 2,750 mm
  • Up-and-over door: 4,500 mm / 2,050 mm
  • Hinged double door: 2,800 mm / 2,500 mm
  • Side-opening sectional/side-opening door: 2,500 mm (4,500 mm) /2,500 mm
  • Travel length (standard): 2,750 mm
  • Max. travel length extended: 4,900 mm 2× extensions (1,096 mm)
  • Max. door weight: 120 kg
  • Max. running speed: 240 mm/s
  • Power consumption (power-saving mode): < 1 W
  • Duty cycle after S3 in %: 40
  • Number of radio memory positions: 40
  • Max. recommended no. of spaces: 30





Product Specifications

Physical Attributes

Weight12 KG
Dimensions

SOMMER base+ Dimensions

Electronics Attributes

Max Consumption< 1W

Garage Door Opener Attributes

Door SuitabilityRetractable, Sectional
Pulling Force (N)600N
Max Door Weight (KG)120KG
