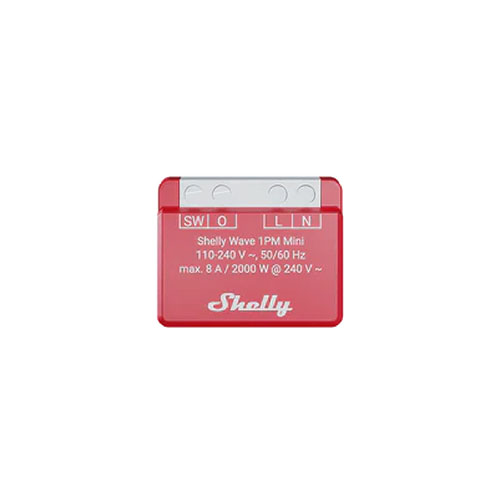

Shelly Wave 1PM Mini LR

The Shelly Wave 1PM Mini LR is a compact smart switch with built‑in power monitoring. It can control the on and off function of a single electrical appliance with a load of up to 8 A AC, such as a light bulb, ceiling fan, or infrared heater. It works with standard switches by default and is also compatible with push buttons.

£37.62

SKU: WAVE-MINI-1PM-LR Category:

Description

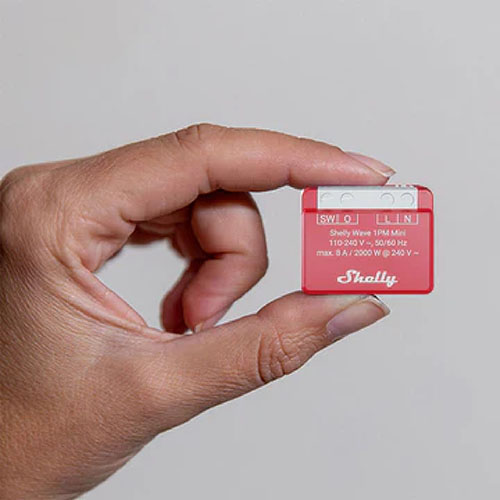

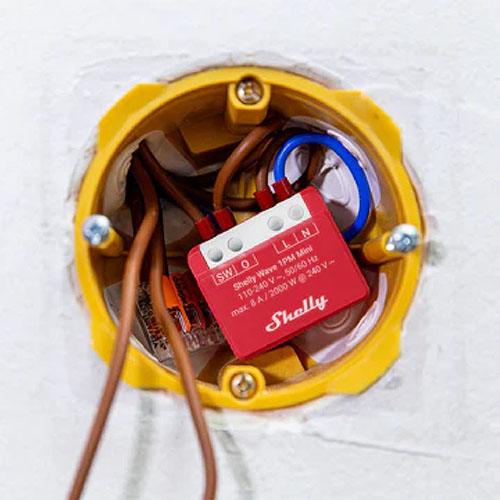

The Shelly Wave 1PM Mini LR is a compact Z-Wave smart relay that includes built-in power monitoring and support for Z-Wave Long Range. It can switch and measure AC loads up to 8 A, equal to 2000 W at 240 V, and is designed to fit inside small wall boxes or crowded electrical enclosures.

It works with both standard Z-Wave mesh networks and Z-Wave Long Range (ZWLR). This allows it to function either as a mesh repeater or as a direct long-range connection to a compatible hub. Powered by the Z-Wave 800 Series chipset, it offers improved reliability, strong security, and accurate energy monitoring for controlling smart lighting and household appliances.

Key Features:

  • Single-channel relay with power and energy monitoring
  • Switches AC loads up to 8 A (2000 W at 240 V)
  • Supports Z-Wave mesh and Z-Wave Long Range (ZWLR)
  • Direct-to-hub ZWLR connection for extended wireless range
  • Z-Wave 800 Series (S800) chipset
  • SmartStart support for fast device inclusion
  • Supports Z-Wave associations in mesh mode
  • Extremely low standby power consumption (< 0.3 W)
  • OTA firmware updates via compatible Z-Wave hubs
  • Security 2 (S2) authenticated encryption

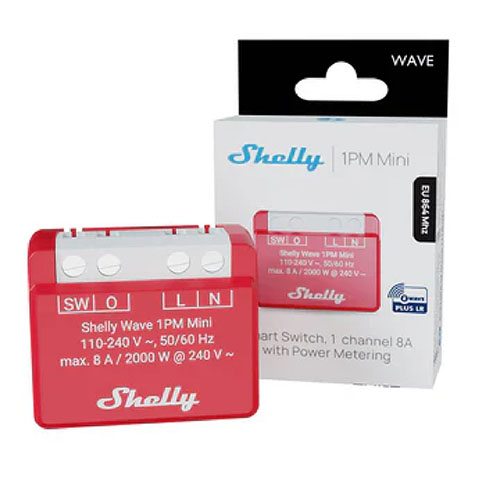

What’s Included:

  • 1x Shelly Wave 1PM Mini LR
  • 1x User Guide

*A gateway (smart hub) is not included. You will need one to set up any Z-Wave Plus devices, and a ZWLR-compatible gateway is required for a device to function in a ZWLR environment.

Manuals & Data Sheets:



Product Specifications

Physical and Performance Attributes

Weight18 grams
Dimensions (L x W x H)29 × 35 × 16 mm
