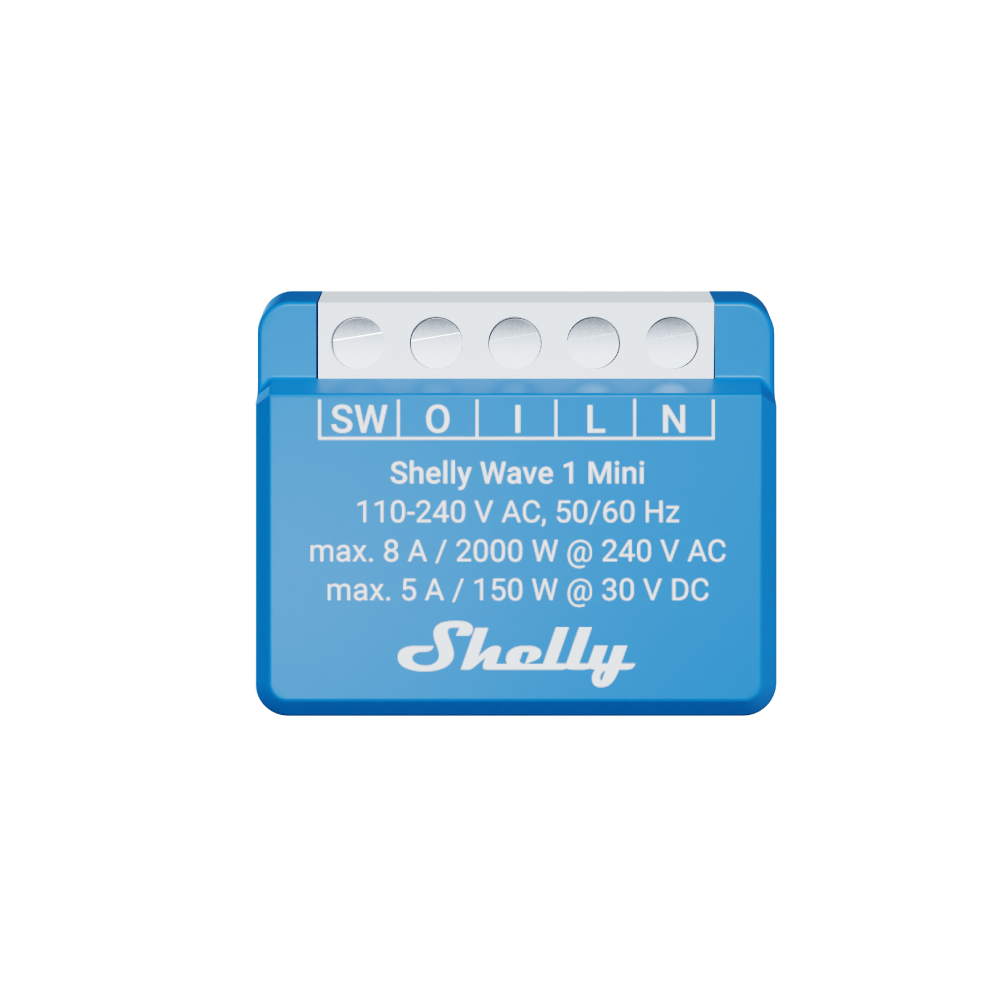

Shelly Wave 1 Mini LR
The Shelly Wave 1 Mini LR is a compact smart switch with potential-free (dry) contacts. It can control the on and off function of a single electrical appliance with a load of up to 8 A AC or 5 A DC, such as a light bulb, ceiling fan, infrared heater, electric lock, garage door system, or irrigation controller. It works with both standard switches (default setting) and push-buttons.
£35.34
Description
This compact design makes the Shelly Wave 1 Mini LR an ideal retrofit option for even the smallest switch boxes or appliances and it offers an extended range that delivers improved overall performance.
Key Features:
- Supports up to 8 A at 240 V AC and 5 A at 30 V DC
- Dry contacts (potential-free)
- Supports Z-Wave Long Range – maintains a strong connection over distances exceeding 1 km (line of sight)
- Energy efficient: uses only up to 0.3 W of power
- Dual Z-Wave frequency options: choose between 864 MHz (ZWLR) or 868.4 MHz ( Z-Wave Plus)
- Latest technology: Z-Wave 800 Series
- Easy set up with SmartStart – just scan and go
- Security 2 Authenticated for the highest level of security
- Over-the-air (OTA) firmware updates
- Fast and simple installation in most electrical boxes and behind switches
What’s Included:
- 1x Shelly Wave 1 Mini LR
- 1x User Guide
*A gateway (smart hub) is not included. You will need one to set up any Z-Wave Plus devices, and a ZWLR-compatible gateway is required for a device to function in a ZWLR environment.
Manuals & Data Sheets:
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 19 grams |

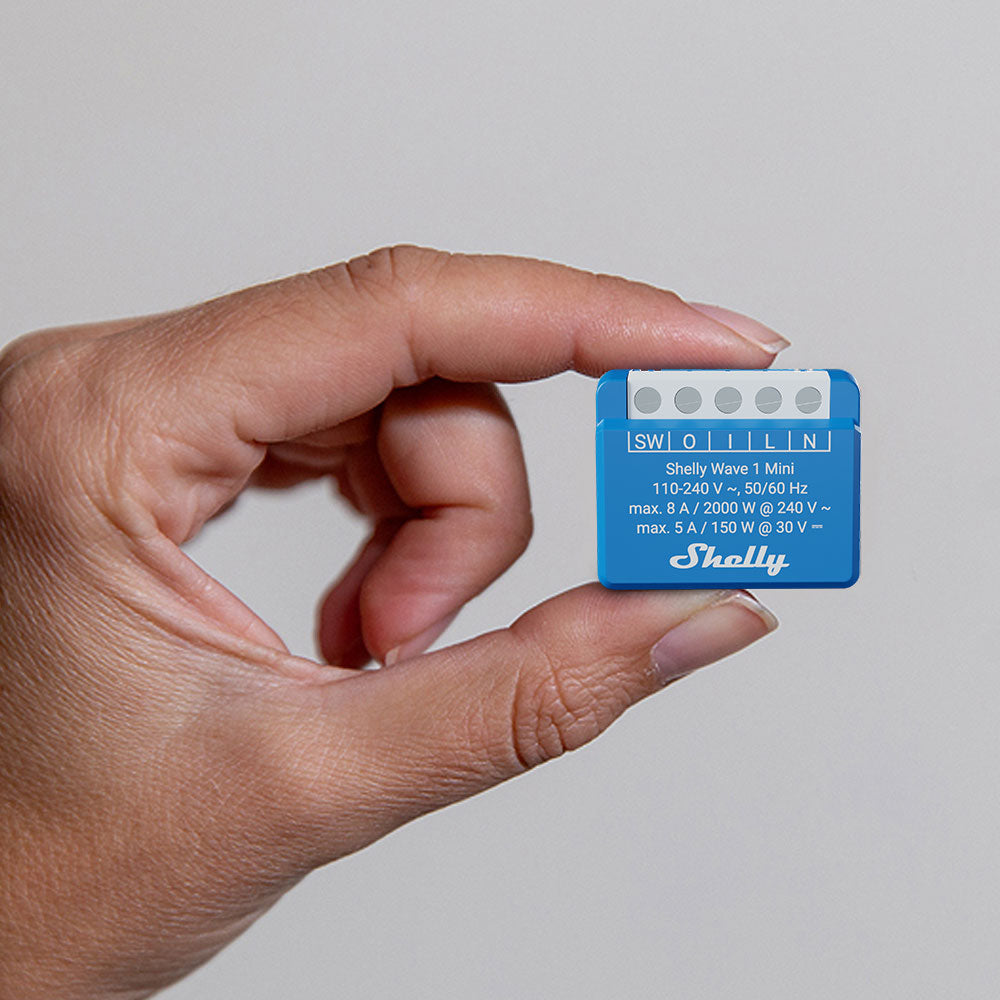

| Dimensions (L x W x H) | 25 × 35 × 16 mm |
