Shelly Wall Display X2 HT

The Shelly Wall Display X2 is a dual‑gang touchscreen controller that serves as a central control point for a Shelly smart system. As a second‑generation upgrade, it expands on the single‑gang Gen1 model and connects via Bluetooth and WiFi to manage an entire smart building from one interface.

Compatibility

Shelly Wall Display X2 HT is compatible with the following systems:
Wi-Fi Compatible Device

£179.89

SKU: WALL-DISPLAY-X2-H-T-SILVER | WALL-DISPLAY-X2-H-T-BLACK Category:

Description

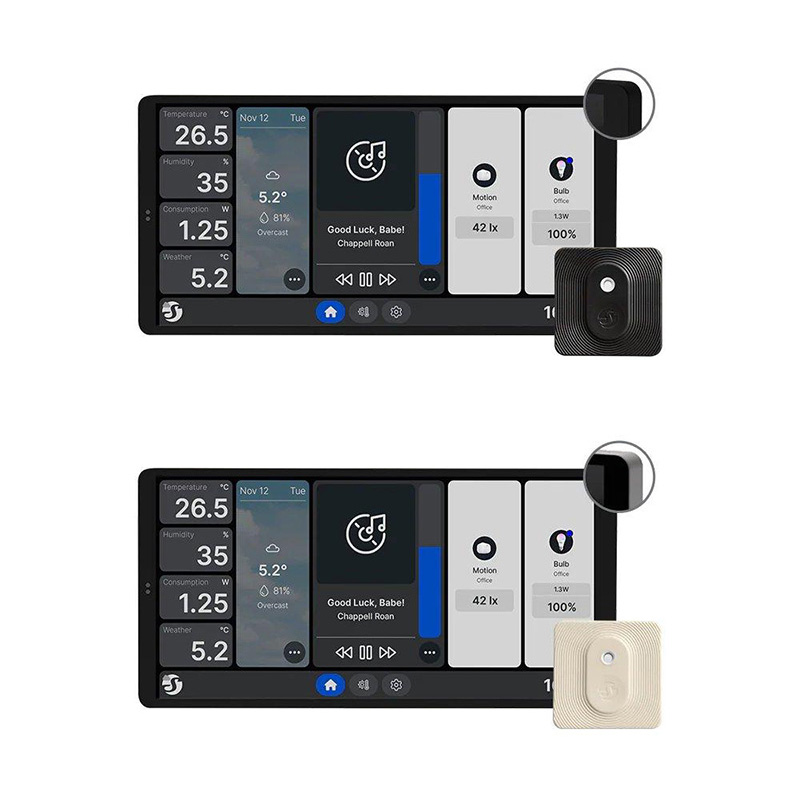

The Shelly Wall Display X2 features a larger two gang touchscreen, expanding on the original Shelly Wall Display which offered a single gang screen. It can show up to six customisable metrics at once, including indoor and outdoor temperature, active lights, power consumption and even the weather forecast. The display is rotatable and can be installed in either portrait or landscape orientation, with automatic screen adjustment when rotation is detected, ensuring it fits seamlessly into any space.

Supporting multi touch control, the Wall Display X2 recognises a wider range of gestures for more intuitive smart home interaction. Actions such as swiping down with two fingers to dim the lights or swiping up to increase the room temperature allow for quick, natural control. Built in light, humidity and temperature sensors enable the device to function as a thermostat, while integrated power monitoring provides a clear overview of energy usage across connected devices.

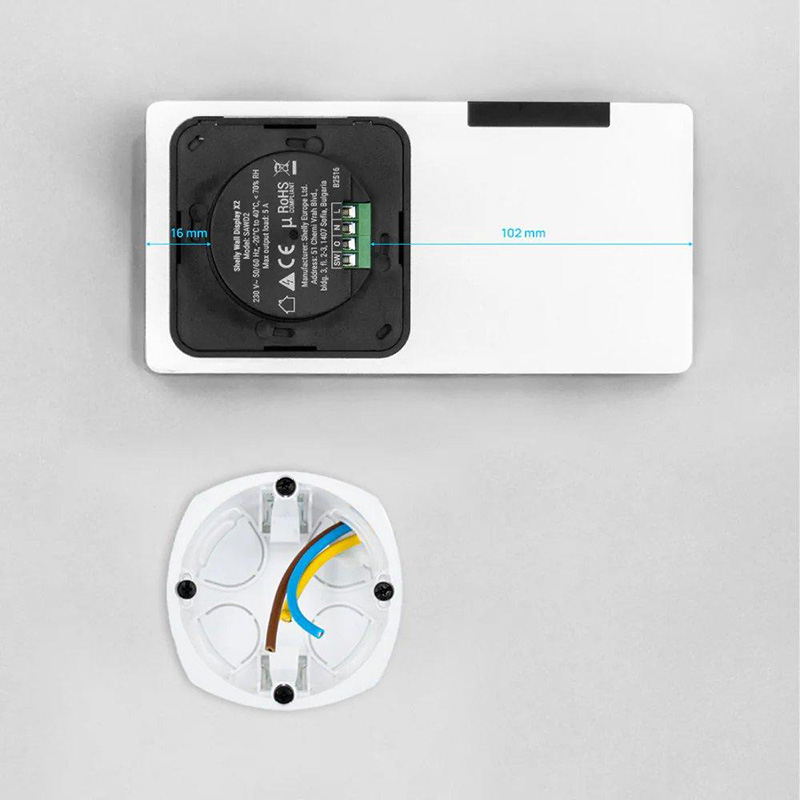

Unlike many smart control panels, the Wall Display X2 requires no specialised hubs or custom wiring. It can be installed in minutes using existing light switch wiring and connects directly to your Shelly ecosystem via standard home or office WiFi.

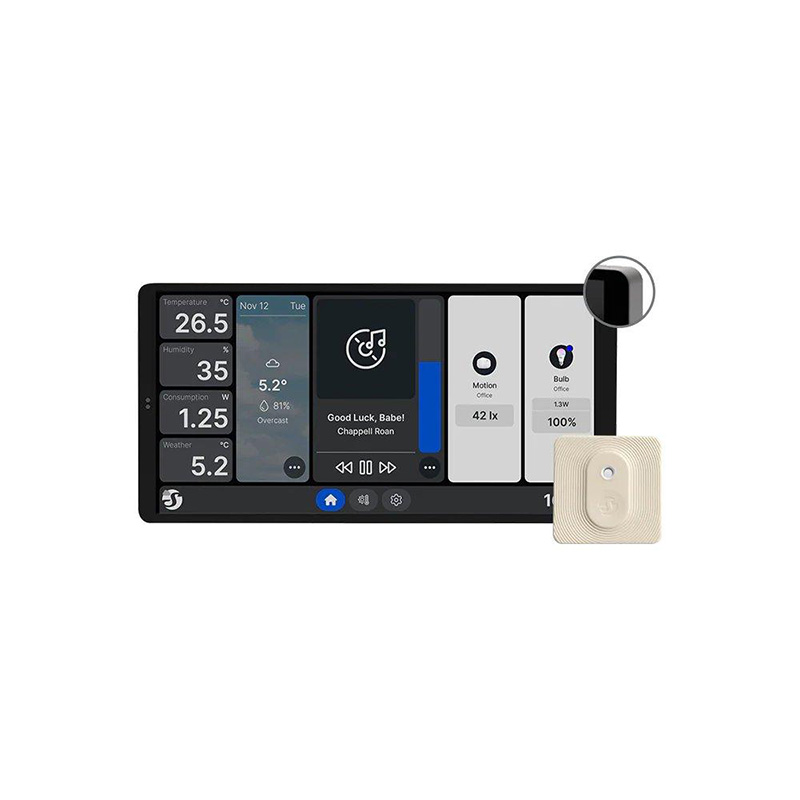

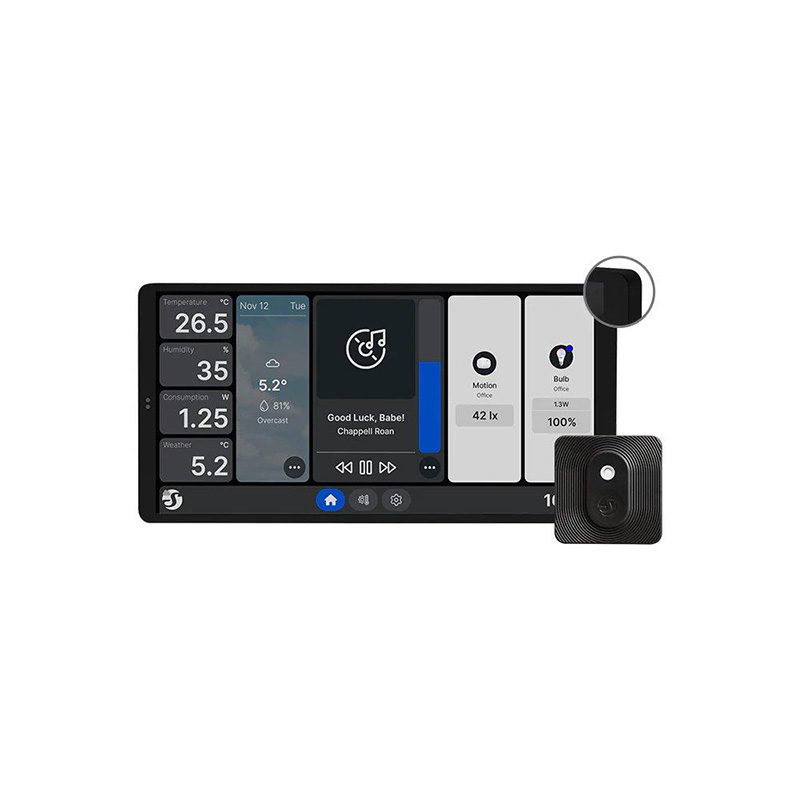

The Wall Display X2 also includes a Shelly BLU H&T sensor, delivering accurate real time measurements of ambient temperature and humidity for enhanced comfort and automation.



Key Features:

  • Built-in WiFi; no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • Flexible input control
  • Two-directional roller control
  • Measures humidity
  • Measures temperature
  • Built-in light sensor
  • Dimming functionality
  • Smart schedules
  • Smart scenes

What’s Included:

  • 1x WALL-DISPLAY-X2-H-T-SILVER OR 1x WALL-DISPLAY-X2-H-T-BLACK
  • 1x SHELLY-BLU-HT-IVORY OR 1x SHELLY-BLU-HT-BLACK
  • 1x Installation Guide

Manuals & Data Sheets:



Product Specifications

Physical and Performance Attributes

Weight256 grams
Dimensions (L x W x H)86 × 173 × 33 mm
