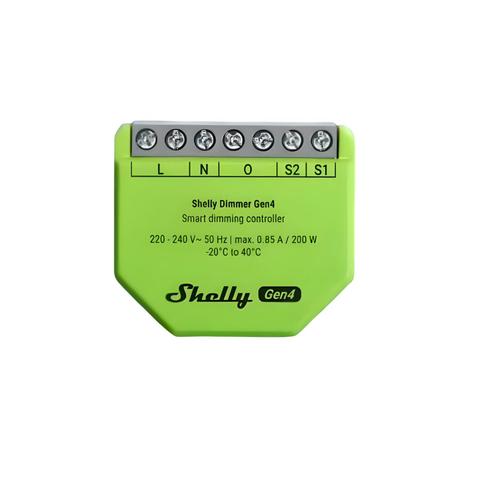

Shelly Smart Dimming Controller Gen 4

The Shelly Dimmer Gen4 is a smart, multi‑protocol dimming relay that delivers precise lighting control for both new and existing installations. With support for WiFi, Bluetooth, Zigbee and Matter, it fits easily into almost any smart‑home setup.

Compatibility

Shelly Smart Dimming Controller Gen 4 is compatible with the following systems:
Zigbee CompatibleWi-Fi Compatible DeviceMatter Compatible

£33.74

SKU: DIMMER-GEN4 Category:

Description

The Shelly Dimmer Gen4 builds on the strengths of the Dimmer Gen3, keeping key advantages such as no‑neutral installation (with a bypass needed for loads under 20W) and easy retrofitting using existing wiring. It works with a broad range of lighting types; halogen, incandescent, dimmable LEDs and transformers, and can function as a standalone, flicker‑free dimmer or as part of a larger Shelly smart‑home setup alongside devices like motion sensors.

Connectivity has taken a major step forward in this generation, with native support for Bluetooth, WiFi, Matter and Zigbee, plus a more powerful chipset for faster response and smoother performance. The Dimmer Gen4 also monitors the energy consumption of connected lighting, providing readings every 60 seconds with up to 1% accuracy and storing the data securely in the cloud for later review.

Key Features

  • Built-in WiFi; no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • 1 channel switch, 16A
  • Flexible input control
  • Power metering
  • Dimming functionality
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer
  • Enhanced security (MQTT, WSS and TLS certificate support)

What’s in the box?

  • 1 x SHELLY-DIMMER-GEN4
  • 1 x Installation Guide



Product Specifications

Physical and Performance Attributes

Weight24.3 grams
Dimensions (L x W x H)38.5 × 43.5 × 17 mm

Misc Product Attributes

General
Size (H x W x D) 38.5 x 43.5 x 17 mm / 1.52 x 1.71 x 0.67 in
Weight 24.3 g / 0.86 oz
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, bootlace ferrules)
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Mounting In-wall
Shell material Plastic
Shell color Lime
Print color Black
Connectors color Gray
Environmental
Ambient working temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max altitude 2000 m / 6562 ft
Electrical
Power supply 220-240 V~ 50 Hz
Power consumption < 1.5 W
Neutral required No
Min load without neutral and without bypass 20 W
Dimming type Trailing edge
External protection 16 A, characteristic B or C, 6 kA interrupting rating, class 3 energy limiting
Output circuits ratings
Max output power 200 W
Max current 0.85 A
Sensors and meters
Voltmeter (AC) 180 V to 280 V
Voltmeter accuracy ± 5% (with neutral)
Ammeter (AC) 0 A to 3 A
Ammeter accuracy ± 5% (with neutral)
Internal temperature sensor Yes
Measurement note Precise measurement only with neutral
Radio
Wi-Fi protocol 802.11 b/g/n/ax
Wi-Fi RF band 2401 to 2483 MHz
Wi-Fi max RF power < 20 dBm
Wi-Fi range Up to 30 m / 100 ft indoors, 50 m / 160 ft outdoors (conditions may vary)
Bluetooth protocol 5.0
Bluetooth RF band 2400 to 2483.5 MHz
Bluetooth max RF power < 4 dBm
Bluetooth range Up to 10 m / 33 ft indoors, 30 m / 100 ft outdoors (conditions may vary)
Zigbee protocol 802.15.4
Zigbee repeater Yes
Zigbee RF bands 2400 to 2483.5 MHz
Zigbee max RF power < 20 dBm
Zigbee range Up to 100 m / 328 ft indoors, 300 m / 984 ft outdoors (conditions may vary)
Microcontroller unit
CPU ESP-Shelly-C68F and STM32 G051
Clock frequency ESP-Shelly-C68F 40 MHz
Flash 8 MB
Firmware capabilities
Schedules 20
Webhooks 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
