Shelly 2PM Gen3

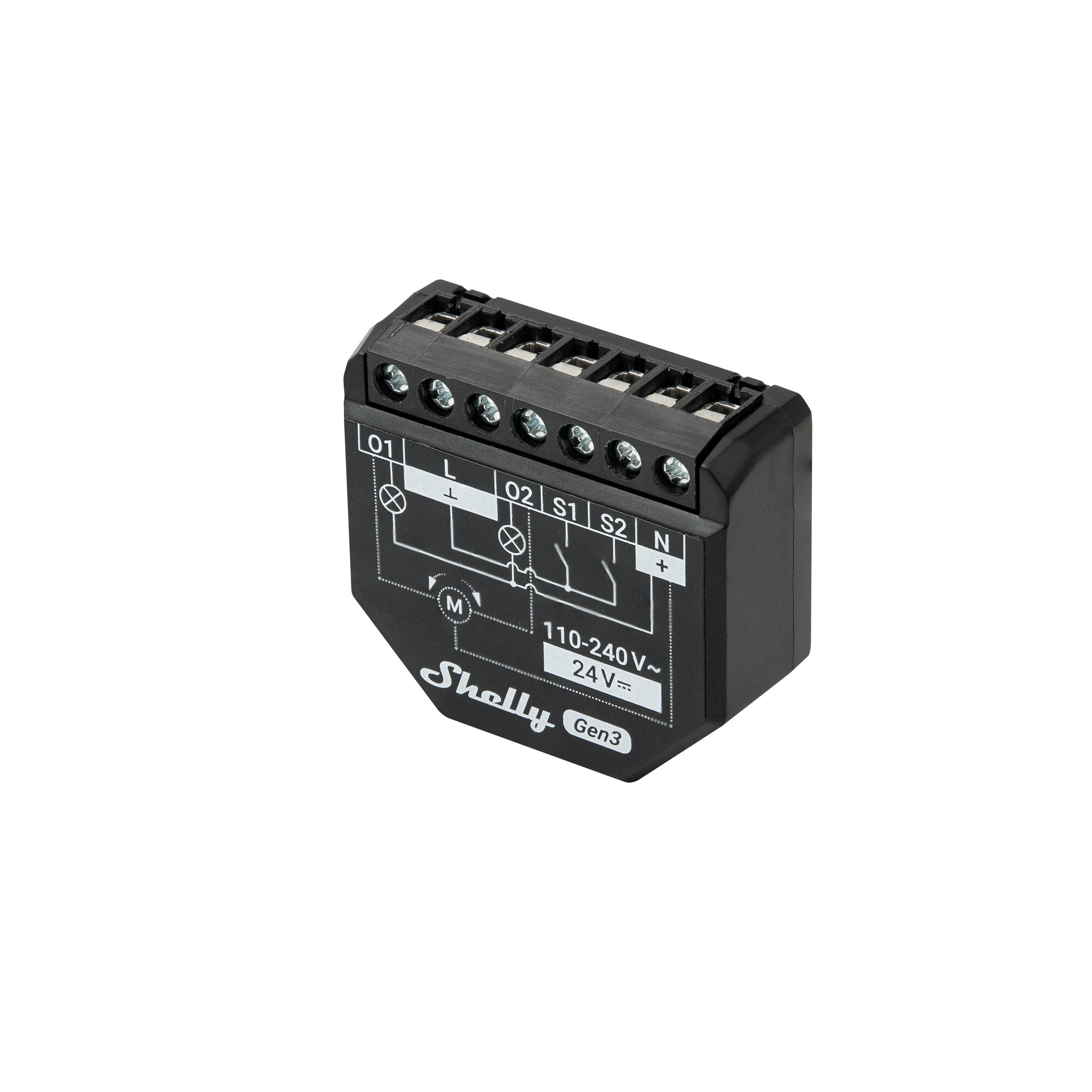

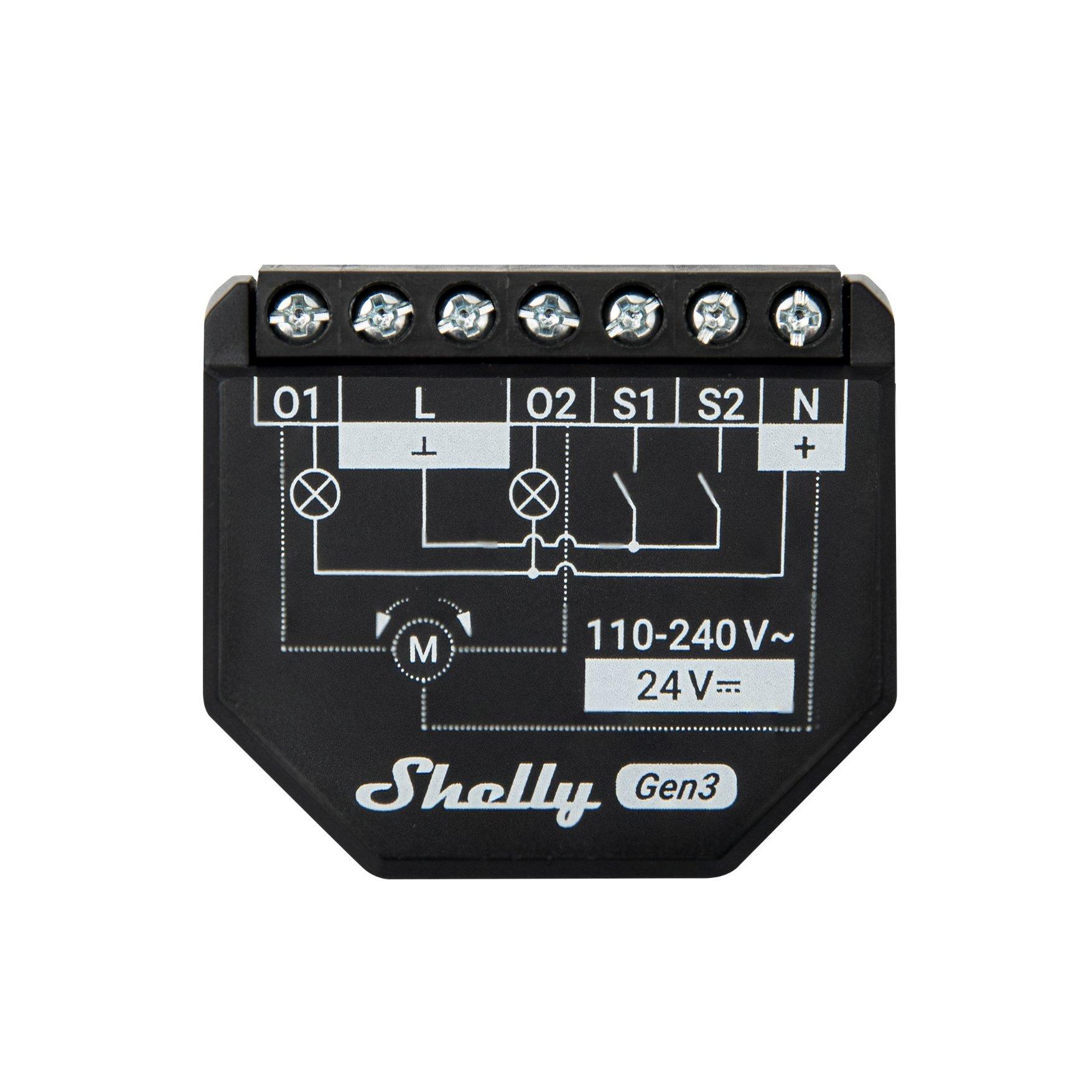

The Shelly Plus 2PM Gen3 is a dual‑channel smart switch, capable of controlling two circuits or a bi‑directional motor (like blinds or shutters), each channel supporting up to 16A. It offers the same remote control and energy‑monitoring features as the previous Plus 2PM model but adds a more powerful chipset for faster performance and introduces Matter compatibility, making it easier to integrate with smart home systems and ensuring better long‑term support.

Compatibility

Shelly 2PM Gen3 is compatible with the following systems:
Wi-Fi Compatible Device

Price range: £27.98 through £55.00

SKU: 2PM-GEN3 Category:

Description

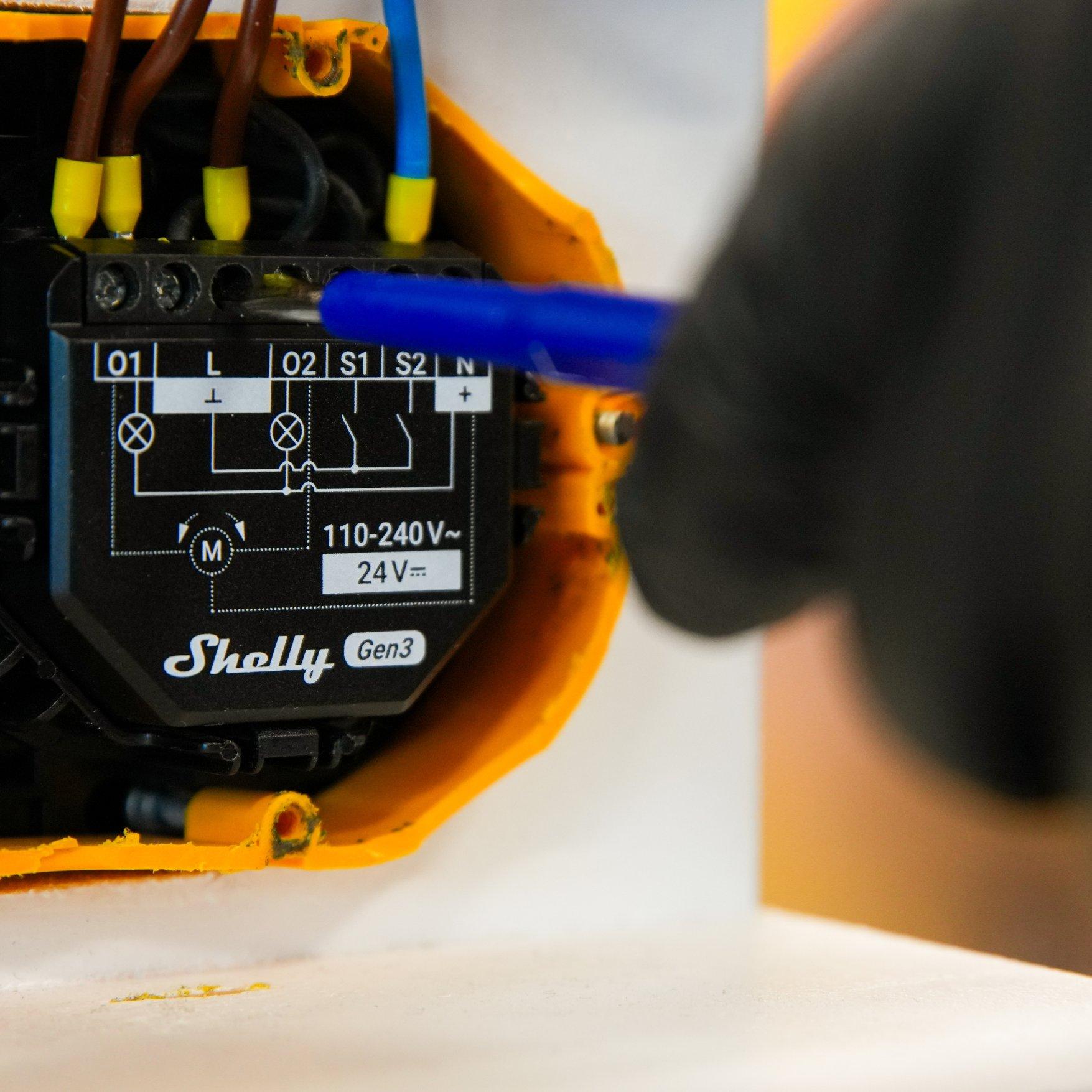

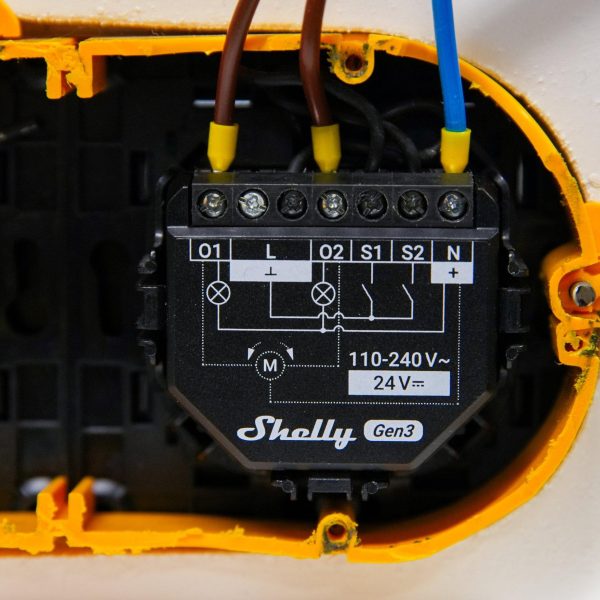

The Shelly Plus 2PM Gen3 delivers extensive smart home functionality, allowing smooth remote control and automation of two separate electrical circuits, such as lights or curtains, or a bi‑directional motor used in motorised blinds. After a quick five‑minute installation, any connected appliance or system can be managed effortlessly through the free Shelly app over standard home Wi‑Fi, without the need for a specialised hub or additional wiring. The device also includes highly accurate power monitoring (within 1%) and securely stores energy‑usage data in the cloud for later review.

As an upgrade to the previous Plus 2PM model, the Gen3 introduces a new in‑house–designed chip with 8MB of memory, improving speed and overall responsiveness. It also adds Matter compatibility for simpler integration with existing smart home ecosystems, and supports KNXnet/IP communication to expand the range of possible integrations even further.

Key features:

  • Built-in WiFi; no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • 2 channel switch, 16A each
  • Two-directional roller control
  • Power metering
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer

What’s included:

  • 1 x 2PM-GEN3
  • 1 x Installation guide

Manuals & Data sheets:



Product Specifications

Physical and Performance Attributes

Weight30 grams
Dimensions (L x W x H)37 × 42 × 16 mm

Misc Product Attributes

Category Specification Details
PHYSICAL
Size (H×W×D) Metric 37 × 42 × 16 mm
Size (H×W×D) Imperial 1.46 × 1.65 × 0.63 in
Weight Metric 30 g
Weight Imperial 1.06 oz
Screw terminals max torque Metric 0.4 Nm
Screw terminals max torque Imperial 3.5 lbf·in
Conductor cross section Metric 0.2 to 2.5 mm² (solid, stranded, bootlace ferrules)
Conductor cross section AWG 24 to 14 AWG (solid, stranded, bootlace ferrules)
Conductor stripped length Metric 6 to 7 mm
Conductor stripped length Imperial 0.24 to 0.28 in
Mounting — Wall console / In-wall box
Shell material — Plastic
Shell color — Black
ENVIRONMENTAL
Ambient working temperature Metric -20°C to 40°C
Ambient working temperature Imperial -5°F to 105°F
Humidity — 30% to 70% RH
Max. altitude Metric 2000 m
Max. altitude Imperial 6562 ft
ELECTRICAL
Power supply (AC) — 110–240 V~
Power supply (DC) — 24 V⎓ ±10%
Power consumption — < 1.4 W
Max. switching voltage AC 240 V~
Max. switching voltage DC 30 V⎓
Max. switching current AC 16 A (240 V~)
Max. switching current DC 10 A (30 V⎓)
SENSORS & METERS
Internal temperature sensor — Yes
Voltmeter (AC) — Yes
Ammeter (AC) — Yes
SAFETY FUNCTIONS
Overheating protection AC Yes
Overvoltage protection AC Yes
Overcurrent protection AC Yes
Overpower protection — Yes
Obstacle detection Cover mode Yes
Safety switch Cover mode Yes
RADIO — WI‑FI
Protocol — 802.11 b/g/n
RF band — 2400–2495 MHz
Max. RF power — < 20 dBm
Range (outdoors) — Up to 50 m / 164 ft (conditions dependent)
Range (indoors) — Up to 30 m / 98 ft (conditions dependent)
RADIO — BLUETOOTH
Protocol — 4.2
RF band — 2400–2483.5 MHz
Max. RF power — < 4 dBm
Range (outdoors) — Up to 30 m / 98 ft (conditions dependent)
Range (indoors) — Up to 10 m / 33 ft (conditions dependent)
MICROCONTROLLER UNIT
CPU — ESP‑Shelly‑C38F
Flash — 8 MB
FIRMWARE CAPABILITIES
Schedules — 20
Webhooks (URL actions) — 20 with up to 5 URLs per hook
Wi‑Fi range extender — Yes
BLE gateway — Yes
Scripting — Yes
MQTT — Yes
