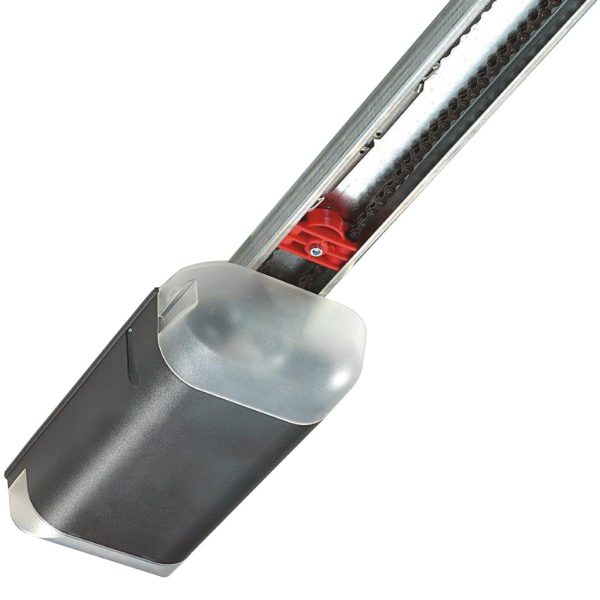

Seip TM70s Ultra Quiet Garage Door Opener Kit

Ultra-quiet garage door opener kit with soft start/stop, 5 years manufacturer’s warranty plus quick and simple installation. Low power consumption using only 2W in stand-by mode.

This model features an 800N max pulling force and is suitable for one-piece horizontally tracked retractable doors and sectional type doors up to 130KG in weight OR up to 10m2 in area

Also compatible with outward opening side hinged barn doors (requires our AP2006 side-hinged door adaptor arm kit, please contact us for more information).

£300.00

Accessories

Seip TM70s Garage Door Opener
This item: Seip TM70s Ultra Quiet Garage Door Opener Kit
£300.00
£300.00
Seip SKR433-3 Midi Remote Control
£48.96
Seip SKRJ433 Mini Remote Control
£48.60
Wall holder for midi keyfob
£6.30
Seip SKR4C433-1 External Wireless Digital Keypad
£120.00

Description

The Seip TM70s is a well-engineered garage door opener with advantages that put it above its competitors, one of the features includes the progressive acceleration and deceleration of the motor speed to provide smoother door movement with reduced stress and quiet door closure by slowing down just prior to closing. The garage door opener also learns about the characteristics of your door and stops immediately when an obstruction is detected.

This model features an 800N max pulling force and is suitable for one-piece horizontally tracked retractable doors and sectional type doors up to 130KG in weight OR up to 10m2 in area

Also compatible with outward opening side hinged barn doors (requires our AP2006 side-hinged door adaptor arm kit, please contact us for more information).

Features

  • 5 years manufacturer’s warranty – Enjoy peace of mind against unlikely product faults for 5 years.
  • Quick and simple installation – Seip’s unique pre-assembled track design makes installation a breeze.
  • Ultra-quiet DC motor with Soft Start/Stop – A feature originally introduced by Seip: by speeding up slowly and reducing the speed before every stop, noises caused by the garage door are reduced to a minimum or even eliminated.
  • Low Power Consumption – Save energy by using a Seip door operator. Power consumption is only 2.0 watts in standby mode.
  • Completely Maintenance Free – All models are equipped with an automatic chain tensioning system, keeping the chain tensioned continuously. The C-rail profile protects the chain from dust – no expensive maintenance calls.
  • Quality – The C-rails and base-plates of our operators are made of 2mm galvanized steel. With the chain drive system we also provide approved quality – chains have been offering excellent reliability for decades.
  • Automatic Force Measurement – This means that the required force for operating your door is precisely measured by the operator. Should it meet with an obstruction, it will automatically reverse direction. No fuss, no problem.
  • Automatic Light – On each operation the internal automatic light becomes active. The 230v light can be adjusted to stay on between 10 seconds to 10 minutes.
  • Secure 433 MHz rolling code remote control system
  • Self-learning function
  • Connections for optical break-beam safety stop device
  • Low head-room steel ‘C’ rail drive track, a minimum of 35 mm above the door is all that is required

What’s Included?

  • 1 x TM70s Garage Door Opener
  • 2 x SKR433-3 Midi remote controls
  • 1 x Wall-mounted push button
  • 1 x Low energy 7 Watt CFL courtesy lamp bulb
  • 1 x Mounting brackets
  • 1 x Fitted 13A mains plug
  • 1 x Cable Operated Emergency Manual Release
  • 1 x Installation Manual

Alternate Model Numbers

Please Note: The TM70s model is not to be confused with the similarly named TM70 model. They are different motors, and therefore have different technical specifications.

Seip TM Series History

  • TM50 – discontinued in the year 2017
  • TM60 – discontinued in the year 2012
  • TM80 – discontinued in the year 2021
    • TM80 was also marketed as TM70 in Belgium
  • TM70s – latest model available since mid-2021

Manual

Seip TM70s Garage Door Opener Installation Manual

Product Specifications

Physical and Performance Attributes

Weight20.00 KG
Dimensions

Motor Head

Height: 80mm

Length: 360mm

Width: 180mm

Headroom Required35mm
Overall Length3,150mm

Electronics Attributes

Power Supply190-250V AC
Stand-by Power2W
Transformer230V AC, 24V AC

Motor Attributes

Duty Cycle / Work Cycle

20 cycles per day

Motor Speed18cm/s (max), 11cm/s (soft)
Motor TypeElectromechanical
Motor Voltage24v
Noise Level70dB
Soft-Start / Soft-StopYes
Door SuitabilityRetractable, Sectional, Side Hinged
Drive MechanismChain
Max Door Size

Area: 10m2

Max Door Weight (KG)130KG
LampLow energy 7 Watt CFL courtesy lamp bulb
MemoryUp to 10 remote controls
Pulling Force (N)800N
Radio Frequencies433 MHz
Rail Length (M)2.5M
