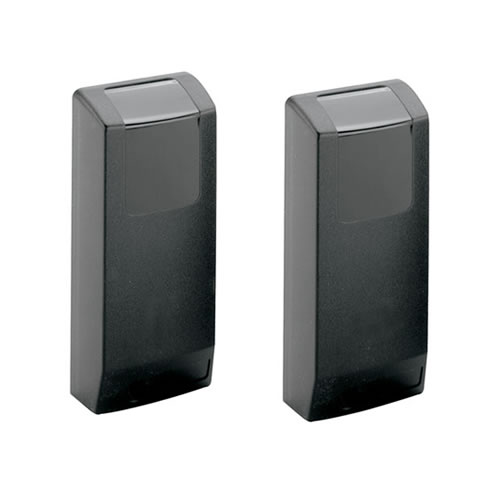

Prastel FOTO30SDE – Relay Photocells (100263, FOTO30-B)

  • Universal Relay Photocells
  • Auto-test Function & Auto-Alignment Feature
  • 12 – 24V AC/DC Power Supply
  • Nominal Range – 30m


SKU: FOTO30SDE Category: Tag:


The Prastel FOTO30SDE safety photocells are compatible with most 230v gate automation systems.

These photocells are weather and water resistant thanks to a protection rating of IP45.


  • Power Supply 12/24V AC/DC
  • Nominal Range 30m
  • Auto-test Function
  • Alignment Test Point
  • Shielded Receiver Amplifier

Alternative model numbers

100263, FOTO30SDE, FOTO30B

Product Specifications

Physical and Performance Attributes

Weight200 grams
Dimensions (L x W x H)25 × 50 × 110 mm

Product Size

Dimensions – 110 x 50 x 25mm

Weight – 200g

Protection Rating (IP)45
Vandal Resistant?No
Mounting TypeSurface Mounted
Operating Temperature-20°C to +70°C

Electronics Attributes

Max Consumption50 mA (TX+RX)
Power Supply12 - 24 V AC / DC
Battery TypeN/A

Safety Attributes

Estimated Range (m)30mM
Photocell Connection TypeRelay Photocell
Photocell Relay Outputs2
Self aligning?Yes
Automatic Synchronisation?Yes
Anti-Glare CircuitYes
Trigger Time< 20 ms
Infrared Wavelength950 nm
