OYN-X Kestrel 4CH 1TB IP POE CCTV Kit With 2 x 2MP 1080P Cameras

OYN-X Kestrel IP POE CCTV kit equipped with a 4 channel, 1TB NVR. Includes 2 x 2MP, 1080P full HD grey turret cameras.

IP POE (Power-Over-Ethernet) high resolution CCTV systems like these allow for video and power to be wired together in CAT5E (ethernet) cable up to 100M. This makes installation much quicker, easier and less hassle.

£322.80 incl. VAT. £269.00 excl. VAT

Additional Cameras and Monitors

TURVIP-2-FG
£52.80 incl. VAT. £44.00 excl. VAT
TURVIP-2-FW
£52.80 incl. VAT. £44.00 excl. VAT
LED-4K-28P-O Front 4K
£259.26 incl. VAT. £216.05 excl. VAT
LED-4K-24P-O Front 4K
£217.50 incl. VAT. £181.25 excl. VAT
LED-HDMI1906P-O 1080p
£97.44 incl. VAT. £81.20 excl. VAT

SKU: KES-KIT-4-2-TURFG-2MP Category: Tag:

Description

OYN-X Kestrel IP POE CCTV kit equipped with a 4 channel, 1TB NVR. Includes 2 x 2MP, 1080P full HD grey turret cameras.

IP POE (Power-Over-Ethernet) high resolution CCTV systems like these allow for video and power to be wired together in CAT5E (ethernet) cable up to 100M. This makes installation much quicker, easier and less hassle.

Remote monitoring capabilities are ideal for keeping tabs on your property wherever you are in the world.

Network Video Recorder (NVR) Features

KESTREL-NVR-4-1TB

  • Easy to set-up with plug & play installation
  • Works with IP (internet protocol) cameras powered via POE (power-over-ethernet)
  • Supports up to 4K ultra HD quality recording (when used with 4K compatible cameras up to 8MB)
  • 4-channel playback, capable of supporting additional cameras to form a larger CCTV system
  • Remote monitoring via smartphone app (Android and iOS)
  • Simple QR code set-up for remote viewing
  • USB backup mode for quickly and easily backing up footage
  • Supports cloud storage / upgrade
  • P2P provides easy setup for remote viewing (no need to configure broadband router for port forwarding)
  • Includes 1TB SATA HDD pre-installed and ready to record, capable of storing weeks of footage (expandable up to 8TB capacity for each HDD)
  • Motion detection feature allows for recording to be triggered by motion
  • Scheduled recording allows for footage to be captured during specific time frames
  • Smart playback & detection functions
  • Supports H.265+ compression, saving storage space without compromising on quality
  • Can be easily connected to a monitor or TV
  • 1 x HDMI and 1 x VGA video outputs
  • 4 x individual PoE ethernet ports (10 /100 Mbps)
  • 2 x USB ports
  • Support Event Stream, Corridor and Onvif

Camera Features

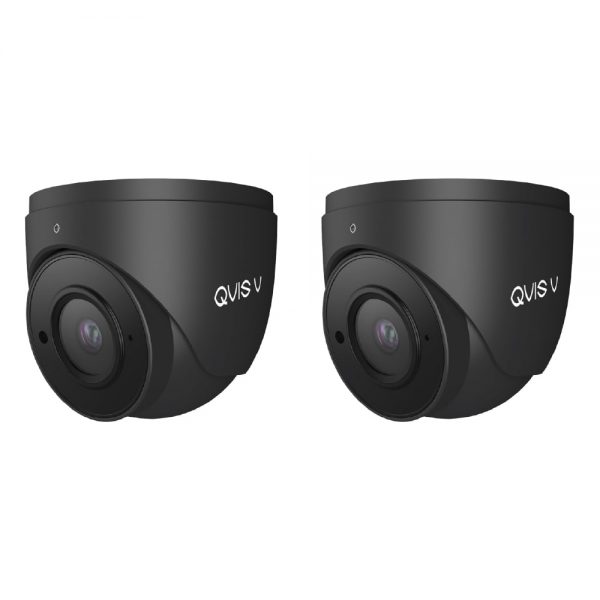

TURVIP-2-FG

  • 2.8mm fixed lens turret cameras
  • 2MP quality image with a 1/2.9” CMOS Sensor
  • 1080P full HD image resolution (1920 x 1080 effective pixels)
  • Day and night modes allow for surveillance around the clock
  • Weather-proof and water-resistant IP67 protection rating
  • 20-30m IR night view distance
  • Great performance in both daylight and darkness
  • 0 Lux (IR On)
  • Digital Wide Dynamic Range (D-WDR)
  • Privacy Masking
  • ICR auto switch, ROI coding, 3D DNR, HLC, BLC, Defog
  • Supports dual streams
  • Smart analytics (optional): abnormal video signal detection, line crossing detection and region intrusion detection

What’s Included

  • 1 x NVR unit
  • 2 x Turret cameras
  • 2 x Ethernet cables
  • 1 x  Mouse
  • 1 x Instruction manual

Product Specifications

Physical Attributes

Weight2.42 KG
Dimensions

NVR: 250 x 230 x 45mm
Camera: Φ 94.6 × 82.8mm

NVR Weight: 1.5KG
Camera Weight: 460g

Protection Rating (IP)IP67

Electronics Attributes

Power SupplyNVR: 48VDC 1.2A
Cameras: 12VDC / PoE
Max ConsumptionNVR: <10W (Without HDD and POE)
Cameras: < 5W
Operating TemperatureNVR: 0°C to +55°C
Cameras: -30°C to +60°C
Operating HumidityNVR: 10% to 90% HR
Cameras: Less than 95% (non-condensing)
