Nice RunKit 4 RUN2500

  • Nice branded sliding gate opener kit
  • Very quiet and smooth operation
  • Built to last, durable design
  • Fully compatible with Nice Opera and BlueBUS technologies

Unfortunately, this product is temporarily out of stock. We are awaiting information regarding the availability of this product.

Compatible Replacements

Nice Run Series Sliding Gate Opener Kit

Nice RunKit 6 RUN2500I

£1,582.37

SKU: RUN2500-KIT Category: Tag:

Description

Nice Run 2500 230v sliding gate opener kit with electromechanical limit switch for sliding gates up to 2500kg and 18m.

Very quiet and smooth operation thanks to the gear motor on bearings.

Downloadable Materials:

PDF Document Nice Run Manual (.pdf)

PDF Document Nice Run Wiring Connections (.pdf)

Features:

Safe and Intelligent

  • Fully compatible with Nice’s Opera management system for GPRS and Bluetooth connectivity / operation
  • Connection for EN compliant 8.2K safety edges
  • The Nice Run series is equipped with a temperature sensor which adapts the motor force to the climatic and environmental conditions, while adapting the thermal cut-out protection and self-ventilation intensity depending on temperature readings.
  • A master and slave selection can automatically synchronise two motors, this makes it possible to automate 2-leaf sliding gates set opposite each other
  • Features an obstacle detection system and automatic programming of opening times, and acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre
  • The Run is capable of self-diagnosis, alerting the user to faults via flashing lights

Sturdy, Practical and User Friendly

  • The Nice BlueBUS system allows the connection of up to 15 control, safety and signalling devices to the control unit with just two wires
  • The control unit can be connected by means of a simple connector and can be housed directly inside the motor
  • The Run’s gear motor is on bearings, resulting in very quiet and smooth operation
  • Strong and sturdy pressure die-cast aluminium design with epoxy painting
  • Aluminium release handle for easy opening

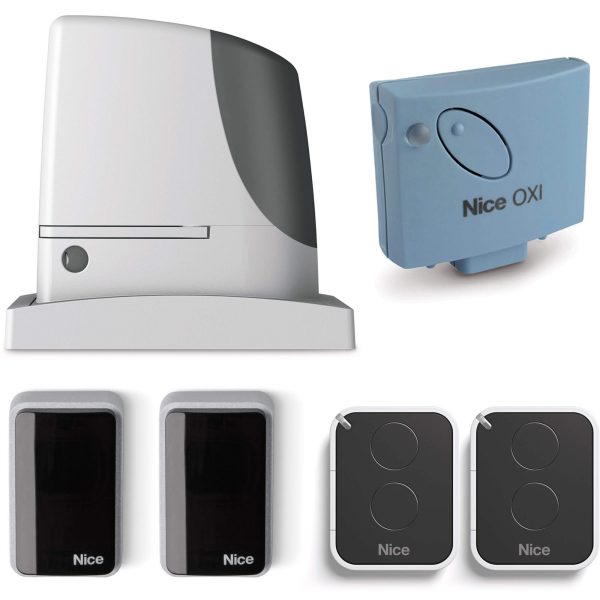

What’s Included:

  • 1 x RUN2500 Motor with electromechanical limit switch (230v)
  • 1 x RUA1 Integrated control unit
  • 2 x ON2E Remote Controls
  • 1 x EPMB Pair of Bluebus Photocells
  • 1 x OXI Receiver

Product Specifications

Physical and Performance Attributes

Weight20 KG
Dimensions (L x W x H)400 × 255 × 390 mm
Dimensions

Motor Weight: 24.5kg

Protection Rating (IP)44
Operating Temperature-20°C to +50°C

Electronics Attributes

Max Absorption3.8 A
Max Power870 W
Power Supply230v AC (50 Hz)

Motor Attributes

Duty Cycle / Work Cycle

42 cycles per hour

Motor Voltage230v
Safety Edge Input8K2OHM, NC, NO
Automation TypeSliding
Kit TypeSingle
Max. Gate Leaf Length (M)18M
Max. Gate Weight (KG)2500KG
Motor Model Number(s)

RUN2500

Pinion ModM4
Option for Slave MotorYes
