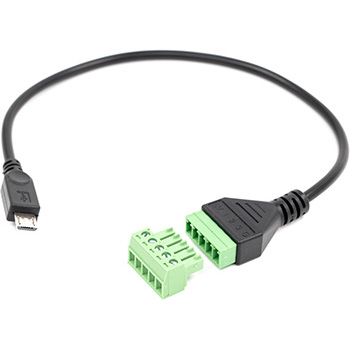

Micro USB to 5 Terminal Add-on (Shelly Pill)
Versatile add-on that unlocks the full hardware potential of The Pill. It provides terminals for three input/output channels using 3.3 V logic levels, along with 5 V power and a GND reference. The add-on enables The Pill to be used with logic-level digital inputs and outputs, analogue inputs in the 0–2.5 V range, or temperature sensors such as DS18B20 and DHT22.
£6.73
Description
Versatile add-on that unlocks the full hardware potential of The Pill. It provides terminals for three input/output channels using 3.3 V logic levels, along with 5 V power and a GND reference. The add-on enables The Pill to be used with logic-level digital inputs and outputs, analogue inputs in the 0–2.5 V range, or temperature sensors such as DS18B20 and DHT22.
The 5‑terminal add‑on unlocks the full hardware potential of The Pill by Shelly, turning it into a versatile hub and providing access to all logic input/output and power terminals. Whether you are connecting sensors, building automation logic, or testing new setups, it delivers a simple and reliable interface for any smart project.
Key Features:

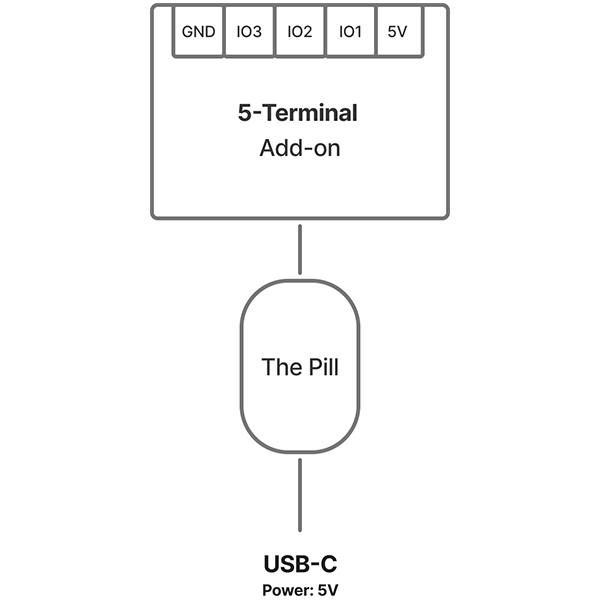

- 3 configurable inputs/outputs (3.3 V logic level)
- Supports digital inputs/outputs, analog inputs and temperature sensors (DS18B20, DHT22)
- 5V power and GND terminals for connected devices
- Compact interface for prototyping and integration
- Required base module for other add-ons from The Pill by Shelly
What’s Included:
- 1x 5-terminal add-on for the Pill by Shelly
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 23 grams |
| Dimensions (L x W x H) | 44 × 23 × 10 mm |
