MHouse WK2S Articulated Gate Double Kit

  • MHouse 24v Articulated Gate Openers
  • Installer Friendly
  • Max Gate Leaf: 1.8m
  • Max Gate Weight: 200kg

Unfortunately, this product has either been discontinued, or we no longer stock it.

Contact Us

Please contact us for alternatives and assistance.


The MHouse WK2S is an articulated gate opener double kit designed for automation of residential swing gates.

The WK1 motors are highly resistant to the elements thanks to an IP54 protection rating.


  • Low voltage, 24v connections allow for installation of safety accessories, such as our safety edge range.
  • Includes automatic obstacle detection feature.
  • Auto-diagnostic system identifies and immediately signals any connection errors or malfunctions.
  • The bracket plate can be mounted either way up, and thus the WK1 Operator can be floor mounted, or as far off the ground as the gate permits.
  • The ECSBus system allows for easy installation of accessories (such as photocells and keypads) with just two wires.
  • Features adjustable, timed automatic closing function, as well as partial opening function.
  • Ideal for deep pillars, which can be easily operated thanks to its articulated arm. Its smooth and precise movements make it ideal for delicate gates.
  • Easy installation and programming of up to 150 additional remotes.
  • Only 10 seconds from closed to fully open.

What’s included

  • 2 x WK1 Electromechanical Gear Motor
  • 2 x GTX4 4 Button 433.92MHz Remote Control
  • 1 x PH100 Pair of Infrared Safety Photocells
  • 1 x FL100 Adjustable Flashing Light With Incorporated Aerial

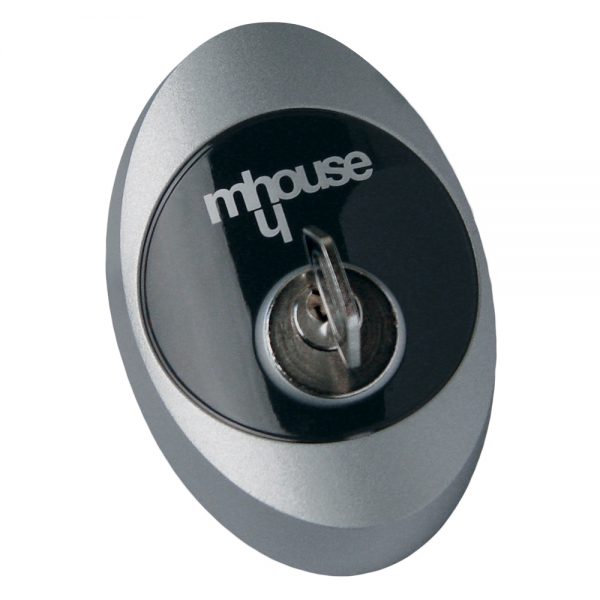

  • 1 x KS1 Two Position (Open / Stop) Key-Switch With Two Keys

Alternative model numbers

WK2S, WK2, WK1

Product Specifications

Physical and Performance Attributes

Weight18 KG
Dimensions (L x W x H)132 × 384 × 232 mm

WK1 Operator

Dimensions (mm) – 384 x 232 x 132

Weight (kg) – 7

Protection Rating (IP)54
Operating Temperature-20°C to +55°C

Electronics Attributes

Max Absorption3.6A
Max ConsumptionNot Available
Max Power2A; the peak current is 3.6A for maximum 3s; equivalent to a peak power of 50W (*70W) and 90W(*130W). (* "fast" speed values)
Power Supply24v DC for "slow" speed and 36v DC for "fast" speed

Motor Attributes

Motor Voltage24v
Automation TypeArticulated
Kit TypeDouble
Max. Gate Leaf Length (M)1.8M
Max. Gate Weight (KG)200KG
