MHouse SL10

Motor Voltage:
24v
Max Weight:
550KG
Max Length:
7M
  • MHouse branded sliding gate opener kit
  • Only 23 seconds from closed to fully open
  • Installer friendly
  • Automatic obstacle detection

£454.80 incl. VAT. £379.00 excl. VAT

Accessories

MHouse GTX4 4 Button Remote Control
£23.99 incl. VAT. £19.99 excl. VAT
ACRN6 Nylon M4 Sliding Gate Rack V6-1200
£16.80 incl. VAT. £14.00 excl. VAT

SKU: SL10+RACK Category: Tag:

Description

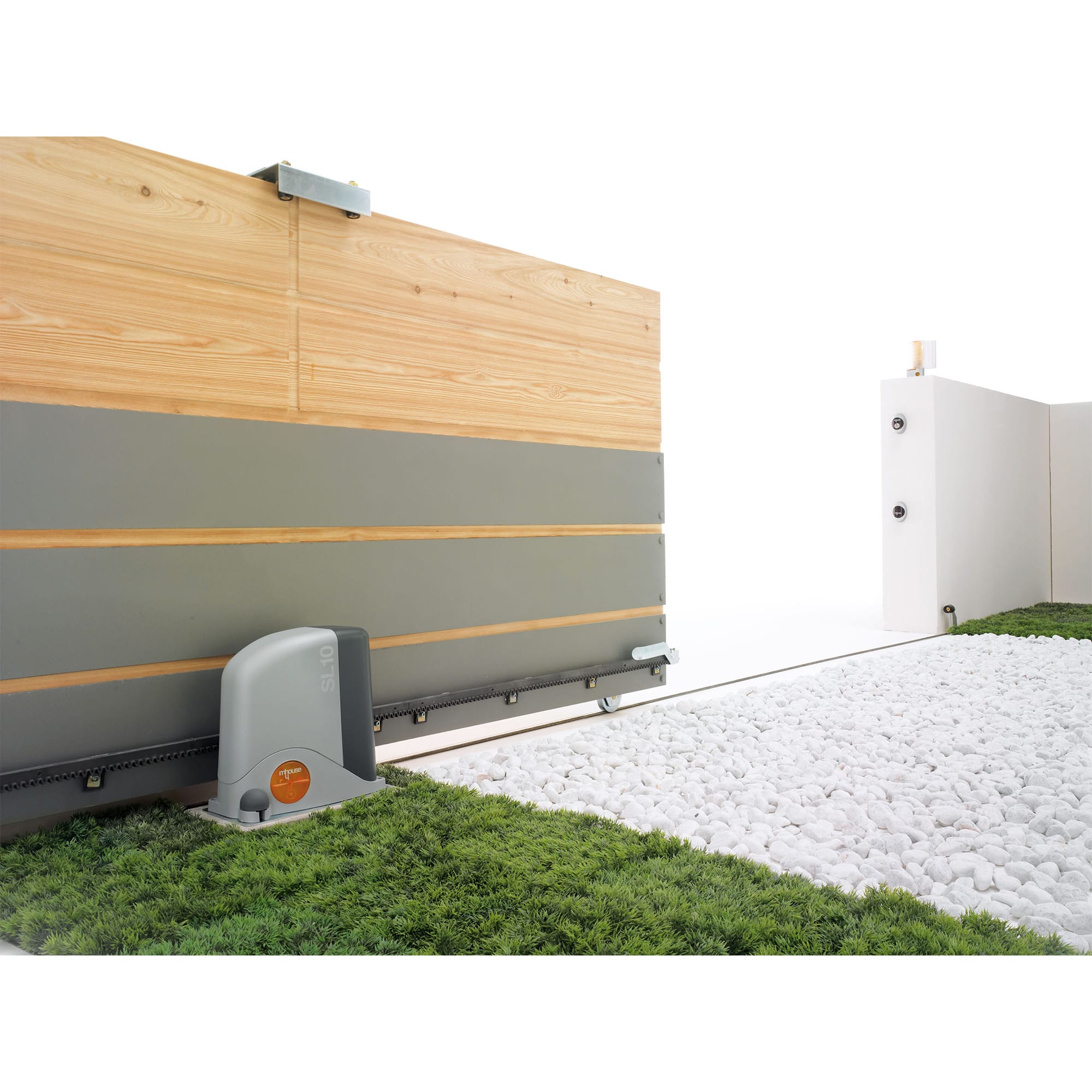

The MHouse SL10 is an installer friendly 24v sliding gate opener. This motor supports a maximum gate leaf length of 7m and a maximum gate weight of 550kg. This kit comes complete with 4 x 1m segments of Nylon rack with steel core and an adjustable flashing light with incorporated aerial.

Features

Safety

  • Includes automatic obstacle detection feature
  • Low voltage, 24v connections allow for installation of safety accessories, such as our safety edge range.

Easy and Convenient

  • The ECSBus system allows for easy installation of accessories (such as photocells) with just two wires.
  • Features adjustable, timed automatic closing function, as well as partial opening function
  • Easy installation and programming of up to 150 additional remotes.
  • Only 23 seconds from closed to fully open
  • Autodiagnostic system identifies and immediately signals any connection errors or malfunctions
  • Auto-programming feature automatically calculates the most suitable operating parameters for each gate
  • No black-out: the optional buffer batteries guarantee up to ten opening and closing manoeuvres in the event of a power outage.

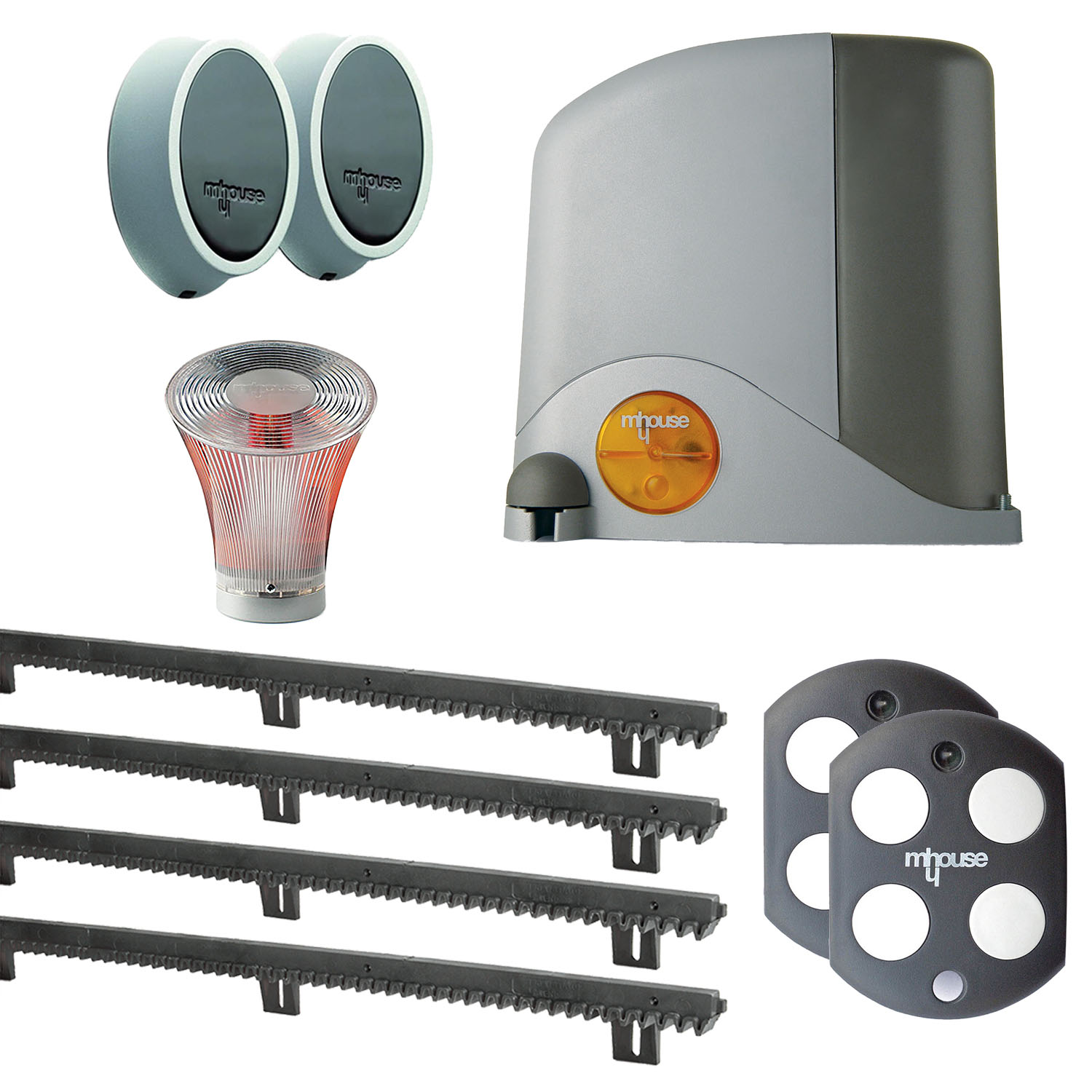

What’s Included

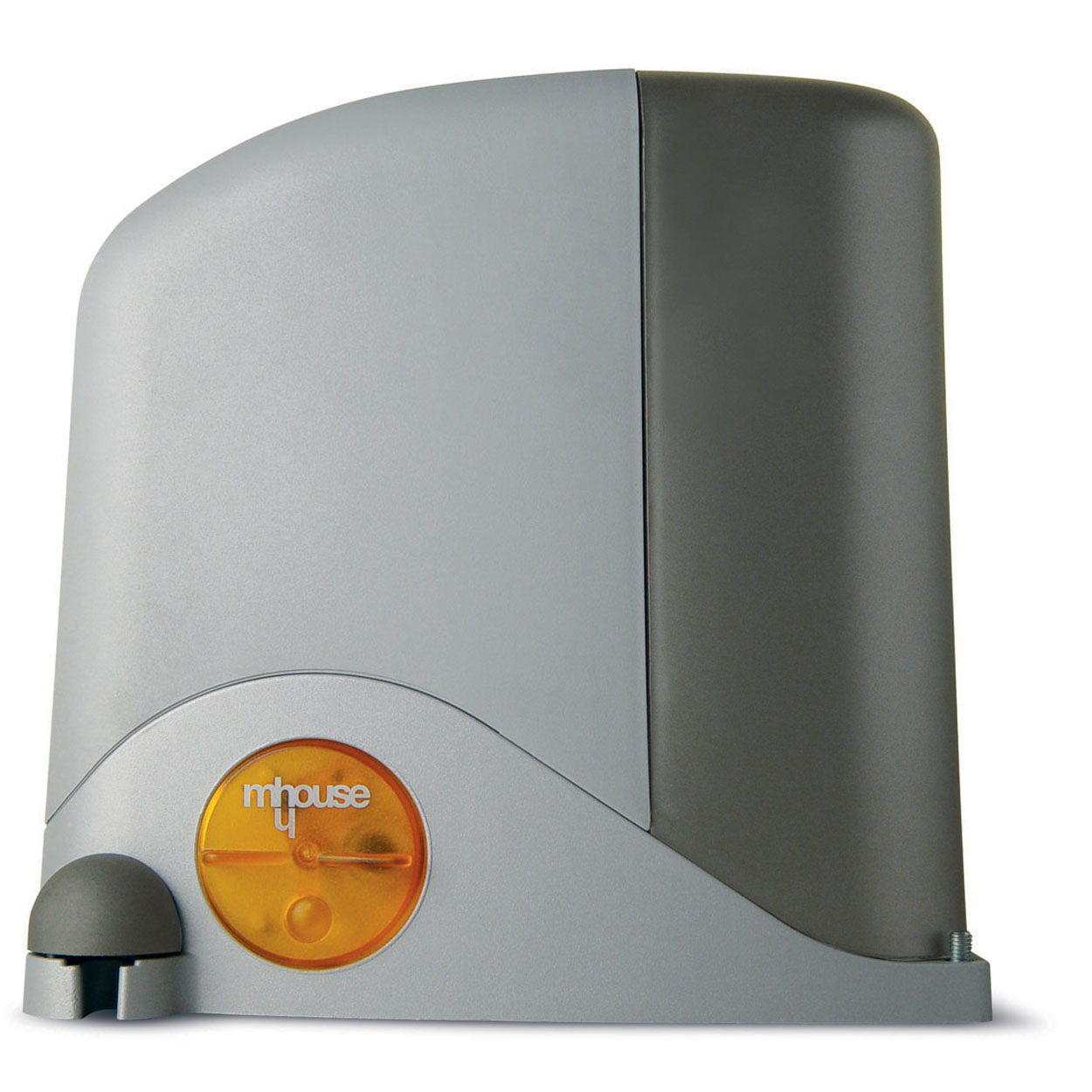

  • 1 x SL10SC Electromechanical operator
  • 2 x GTX4 4 Button 433.92MHz Remote Control
  • 1 x PH100 Pair of Infrared Safety Photocells
  • 1 x FL100 Adjustable Flashing Light With Incorporated Aerial

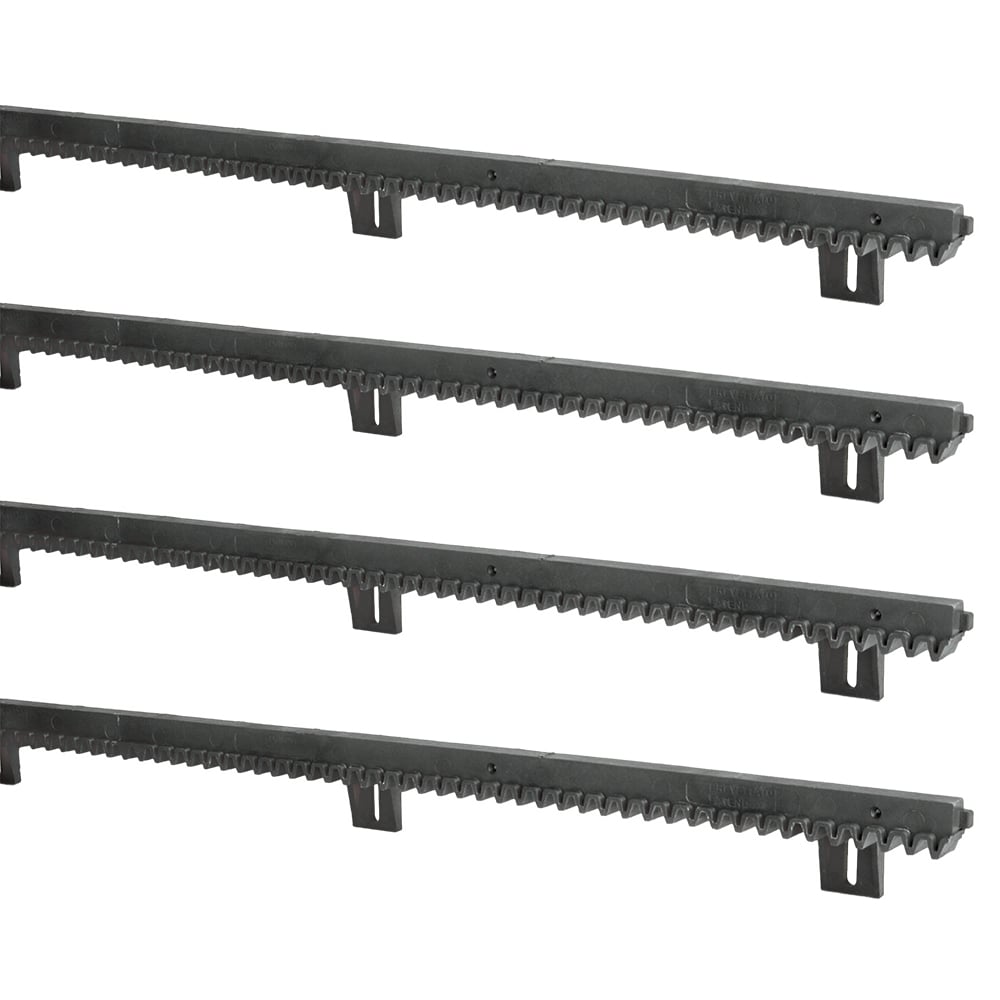

  • 4 x CR100 1m Segment of Nylon Rack

Downloadable Materials

View Manual

Technical Specifications

Maximum Gate Leaf 7m
Maximum Gate Weight 550kg
Duty Cycle (Max) 12 cycles/hour at 25 °C
Voltage Motor Supply 24 VDC
Maximum Absorbed Power 420W
Max continuous cycle 7 minutes
Maximum Startup Torque 15Nm
No load speed 0.018 m/s
Speed at nominal torque 0.015 m/s
Nominal Torque 5.2Nm
Working Temperature Range -20°C to 50°C
Degree of protection IP44
Dimensions 300 x 163 h 295 mm
Weight 8.5 KG

Product Specifications

Physical Attributes

Weight18 KG
Dimensions (L x W x H)295 × 300 × 163 mm
Dimensions

SL10SC Operator

Dimensions (mm) – 300 x 163 x 295

Weight (kg) – 8.5

Protection Rating (IP)IP44

Electronics Attributes

Power Supply24v DC
Max Power420W
Operating Temperature-20°C to +50°C
Voltage24v DC

Gate Opener Attributes

Automation TypeSliding
Kit TypeSingle
Max. Gate Leaf Length (M)7M
Max. Gate Weight (KG)550KG
Motor Model Number(s)

SL10SC

Motor Attributes

Motor Voltage24v
Duty Cycle / Work Cycle12 cycles/hour at 25°C
