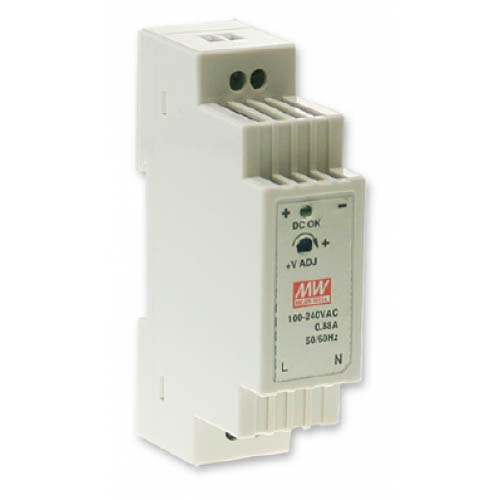

Meanwell DR-15-12 – 12V DIN Rail Slim Power Supply

Single 1.25 A output, 15W industrial DIN rail 12v power supply. Universal AC input / full range. Isolation class II.

Unfortunately, this product has either been discontinued, or we no longer stock it.

Compatible Replacements

Meanwell HDR-15 Series DIN Rail PSU

Meanwell HDR-15-12 Ultra Slim DIN Rail Power Supply (12VDC, 1.25A, 15W)


SKU: DR-15-12 Category: Tag:



  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Isolation class II
  • LED indicator for power on
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • 3 years warranty

Manuals and Data-sheets

Meanwell DR-15-12 Installation Manual

Meanwell DR-15-12 Data-sheet

Alternative Model Numbers


Product Specifications

Physical and Performance Attributes

Weight100 grams
Dimensions (L x W x H)93 × 25 × 56 mm
Operating Temperature-20°C to +60°C

Electronics Attributes

Input Type1-Phase / Single Phase
Input Voltage85 VAC to 264 VAC, 120 VDC to 370 VDC
Frequency Range47 to 63 Hz
Number of Outputs1 Output
Output Power15W (rated)
Output Voltage12 VDC
Output Current1.25 A (rated)
