LiftMaster SUB324KS-EV Single Underground Gate Opener Kit – myQ Compatible

Motor Voltage:
Max Weight:
Max Length:
  • LiftMaster evolution SUB324 single underground gate opener kit
  • Compatible with myQ smartphone operation when used with the myQ Internet Gateway accessory*
  • Ultra-quiet, ideal for residential areas and intensive use
  • Suitable for gate leaves up to 300kg (with a 2.5m gate leaf)


SKU: SUB324KS-EV Category: Tags: ,


Welcome to the MyQ® experience

Explore all the ways myQ integration will make your life easier.

Complete control at your fingertips

MyQ Smart Technology is built to effortlessly connect you to your gate & garage, whether you're home or away. Download the free myQ App today to start enjoying a variety of features engineered for your convenience.*

The MyQ system also works with Apple HomeKit, Nest, IFTTT, Google Assistant and more...

For more information, click here.

*use of myQ features requires the LiftMaster 828EV myQ Internet Gateway

MyQ - What Is It And How Does It Work?

Smartphone, Tablet or Computers

Use your devices to control your gate or garage door from the comfort of your home

myQ phone on desk
My Q application

LiftMaster Internet Gateway

Your command is then transmitted to the Internet gateway

Your Gate or Garage Door Opener

Then your command is executed by the compatible gate or garage door opener

LiftMaster Gate Opener
LiftMaster Gate Closing

Open and Close the Gate or Garage Door

Making it a lot easier to leave and arrive without the hassle

MyQ is a revolutionary patented technology that allows for two-way communication, ensuring that you can monitor and control your gate or garage door from anywhere in the world with an internet connection, using your mobile phone, tablet or laptop / PC!*

Your internet-enabled device will communicate with your LiftMaster Internet Gateway which will pass information between your device and your opener, be it commands to open and close or status/monitoring queries.

For more information, click here.


24v System


Modern 24v motors are ultra-quiet and highly practical, ideal for residential areas and intensive use.

Strong Design

Built To Last

High quality materials combined with a strong and resistant design ensure a long service life.



Clean and maintenance-free, electro-mechanical motors ensure less hassle.

Key Features

The LiftMaster SUB324KS-EV is a 24v single underground gate opener kit, part of the LiftMaster SUB series. Motors in this kit support gates that are up to 3.5m in length, with a smaller gate length (2.5m) it allows for support of a gate up to 300kg in weight.

myQ enabled technology, operate your gates from anywhere in the world via smartphone, tablet or PC*. For more information, click here.

Ultra-quiet, ideal for residential areas and intensive use

Suitable for gate leaves up to 300kg (with a 2.5m gate leaf)

2 year warranty

Smart Solutions

Powerful performance thanks to underground drive system. Installed under the gate, set in secrecy, great for installations that don't affect the aesthetic of a stylish gate. No harsh banging / clattering of gates.

Smooth operation thanks to soft-start / soft-stop technology

Can be partially opened with the pedestrian mode

Passpoint System

Patented Passpoint system ensures programming settings are not lost in the event of a power outage.

Radio Control

Evolution gate openers are equipped with the best radio performance ever, providing bi-directional radio, which both sends and receives radio signals. In addition, the receiver handles both 433 MHz and 868 MHz frequency transmitters for increased flexibility.

Safe and Secure

Automatically closes the gate after a preset amount of time

High security radio protection, impossible to clone

8.2K safety circuit to connect safety edges for maximum protection

Obstacle detection and automatic force setting

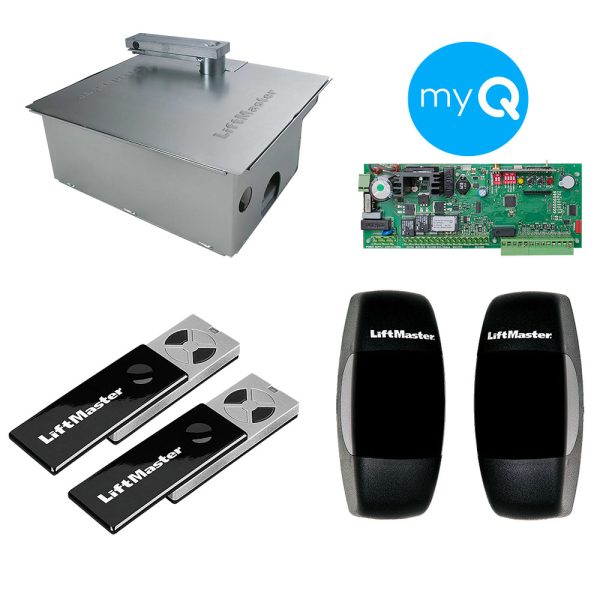

What's Included

  • 1 x SUB324M electro-mechanical underground gate motor (24v)
  • 1 x SUB300B zinc coated, rust-resistant foundation box
  • 1 x SUB-110 110° opening gate arm with stops and release keys
  • 1 x CB124EV myQ compatible control board with integrated RF module operating on 868 & 433 MHz EVO code
  • 2 x TX2EV 868.35 MHz, 2 channel remote controls
  • 1 x 772E pair of adjustable failsafe photocells

Product Specifications

Physical and Performance Attributes

Weight20.00000000 KG

Click Diagram To Enlarge

LiftMaster SUB Series Typical Installation

LiftMaster SUB Series Typical Installation

LiftMaster SUB Series Motor and Foundation Box Dimensions

LiftMaster SUB Series Motor and Foundation Box Dimensions

LiftMaster SUB Series Installation Dimensions

LiftMaster SUB Series Installation Dimensions

Protection Rating (IP)67

Electronics Attributes

Max Power48 W (nominal), 180 W (max)
Power Supply230 - 240v AC (50 / 60 Hz)
Voltage-25°C to +75°C

Motor Attributes

Duty Cycle / Work Cycle


Motor Voltage24v
Safety Edge Input8K2OHM
Soft-Start / Soft-StopYes
Automation TypeUnderground
Kit TypeSingle
Max. Gate Leaf Length (M)3.5M
Max. Gate Weight (KG)300KG
Motor Model Number(s)


Number of Leafs1
Max Opening Angle180°
