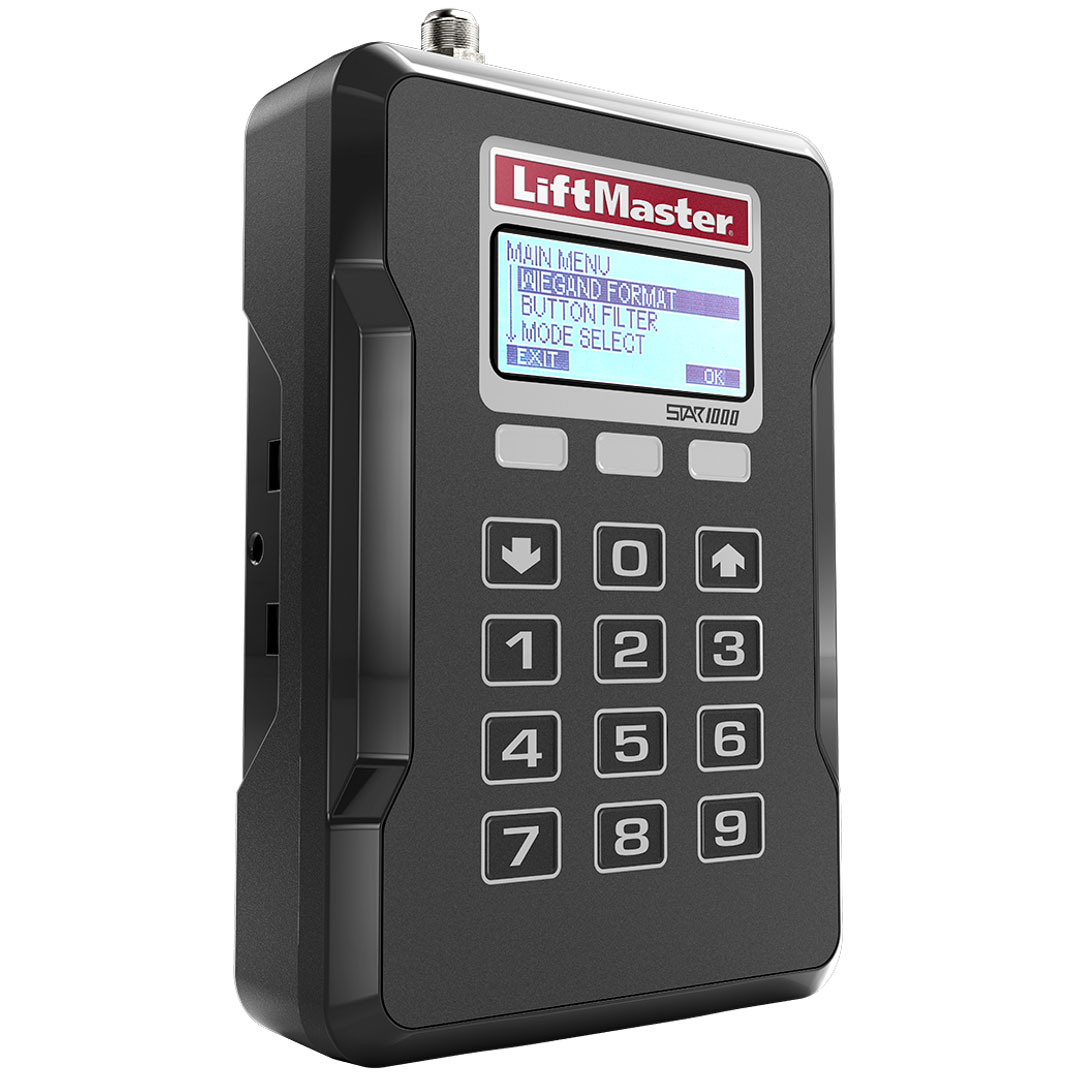

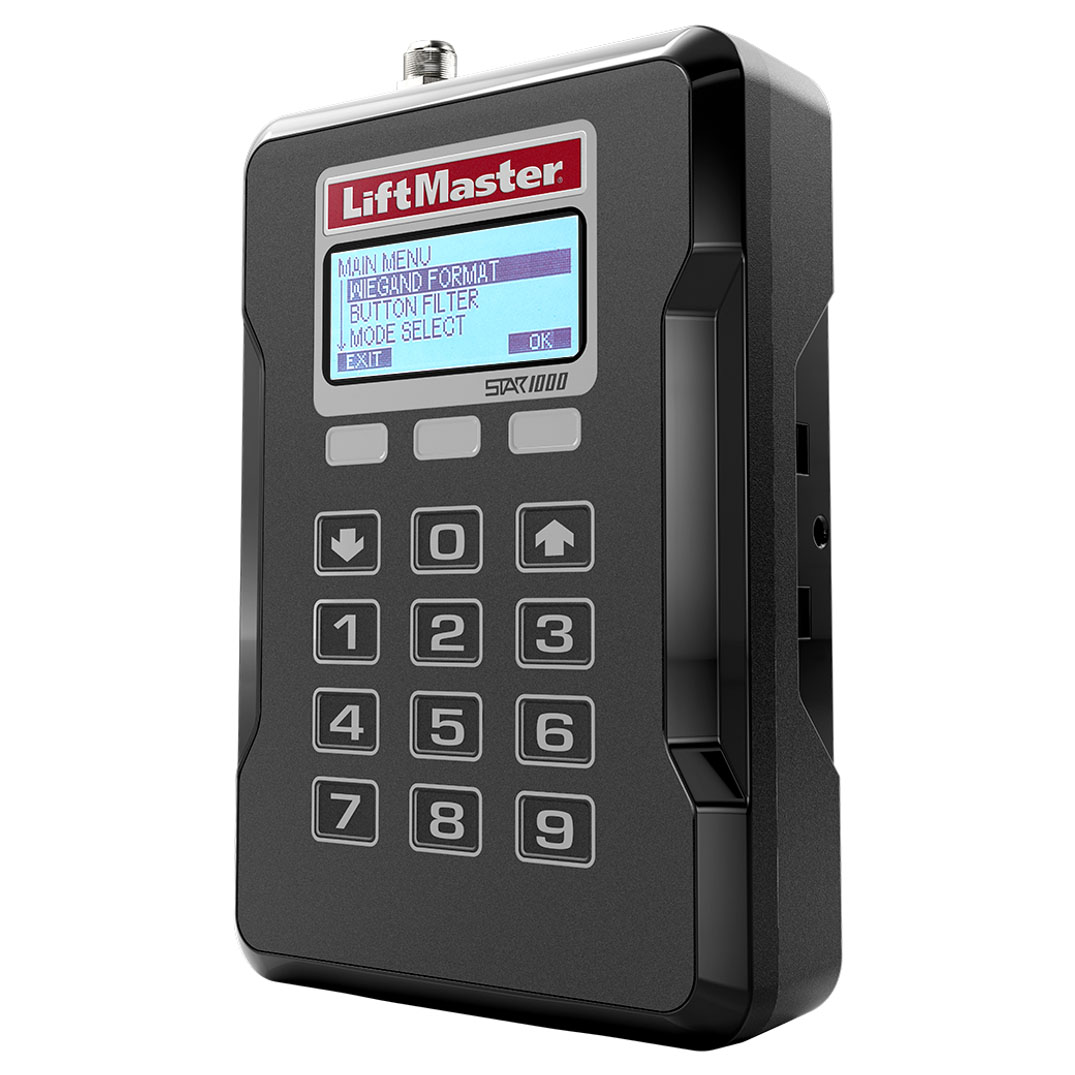

LiftMaster STAR1000 Receiver

LiftMaster STAR1000 stand-alone radio receiver system, complete with high capacity memory and backup module.

Ideal for gate and commercial door operators.

£238.80 incl. VAT. £199.00 excl. VAT

SKU: STAR1000 Category: Tag:

Description

LiftMaster STAR1000 stand-alone radio receiver system, complete with high capacity memory and backup module.

Ideal for gate and commercial door operators.

Key Features

  • Universal receiver system for gate and commercial door operators
  • Compatible with HomeLink®. For programming or compatibility information visit www.homelink.com.
  • User-friendly stand-alone controller with simple interface
  • High capacity, holds up to 1,000 remote controls
  • Never lose your data thanks to the removable backup memory module
  • IP44 weather-resistant housing suitable for outdoor installation
  • Security+ 2.0™ Tri-Band 433 / 868 MHz

Additional Features

  • Add, block or delete individual remote controls with ease
  • Add protection to your device with a 6-digit pin code
  • Display and edit the dealer 11-digit contact phone number
  • Adjustable relay time from 0.25 to 1 second
  • Duplicate and restore memory with ease using the backup memory module
  • Device language can be set to English, Spanish or French

Compatibility

This receiver is compatible with the following Chamberlain LiftMaster remote controls,

  • TX2EV, TX4EV
  • 041ATX4EVF
  • TX2EVS, TX4EVS
  • TX2EVF, TX4EVF
  • TX4UNI, TX4UNIS, TX4UNIF

Downloadable Materials

Product Specifications

Physical Attributes

Weight50 grams
Dimensions (L x W x H)152 × 105 × 48 mm
Protection Rating (IP)IP44

Electronics Attributes

Power Supply9 - 30 Volts AC, 9 - 42 Volts DC
Max Consumption50 mA (operating), 30 mA (stand-by)
Operating Temperature-40°C to +65°C

Radio Attributes

Coding TypeRolling / Hopping Code
Radio FrequencyOther

Receiver Attributes

Number of Users

1000

Number of Relay Outputs1
Type of OutputsNO
