LiftMaster LM50EV Garage Door Opener

LiftMaster Evolution garage door opener, suitable for small to medium sized retractable doors.

Quiet and smooth operation, minimum power consumption.

£154.80 incl. VAT. £129.00 excl. VAT


LiftMaster TX2EV - 2 Channel Remote Control
£26.40 incl. VAT. £22.00 excl. VAT
Liftmaster 772E Photocells
£45.00 incl. VAT. £37.50 excl. VAT
LiftMaster 128EV Push Button
£23.40 incl. VAT. £19.50 excl. VAT
Chamberlain 747REV Digital Keypad
£46.80 incl. VAT. £39.00 excl. VAT
Chamberlain 1702REV Quick Release Lock
£17.95 incl. VAT. £14.96 excl. VAT


The LM50EV is a product designed with simplicity and performance in mind, easy to fit and program it comes with all the great features Liftmaster are renowned for. The opener is suitable for small to medium sized retractable doors, it operates quietly and features motion slowdown during opening and closing. Reduce your energy footprint while active or not, the LM50EV utilises its ‘Super Standby’ and LED lighting to ensure minimal power consumption. The kit comes supplied with a rail, all the fixings and includes 2 remotes.

The Evolution Series – Where design meets technology.

The Evolution line of garage door openers is a state-of-the-art and winner of a consumer design study where by 10 design concepts were presented to ~1,000 consumers in 5 different European countries. The products within the Evolution series are equipped with bi-directional radio receivers allowing them to both send and receive information, the radio transmitters can also handle operating on both the 433MHz and the 868MHz frequencies proving to be the best radio performance ever.

** Please note, this kit is not compatible with the MyQ Gateway Device


  • Door Height – Adjustable up to 2.3 m
  • Hanging Weight – 10kg
  • Chain drive ensures low maintenance
  • Powerful performance and durable operation
  • Ultra-quiet, smooth operation with soft-start and soft-stop technology
  • LED courtesy light
  • Quick and easy to install
  • Low standby mode consumption
  • Evolution radio (security+ 2.0®) transmits a new code with every click of the remote
  • Automatic force setting and obstacle detection
  • Warranty – Kit Warranty 2 Years

Technical Information

  • Door Height: Max 2.3 m
  • Hanging Weight: 10kg
  • Input Voltage: 220–240 V, 50–60 Hz
  • Maximum Pull Force: 500N
  • Stand-by Power: 0.8W

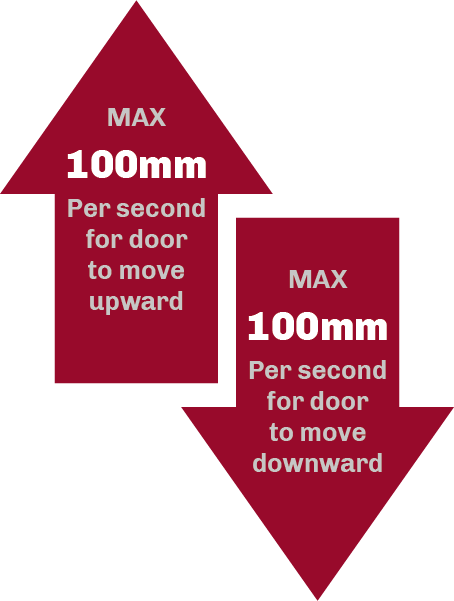

  • Travel Rate: 100mm per second

LM50EV Travel Rate

Kit Contents

  • 1 x LM50EV garage door opener

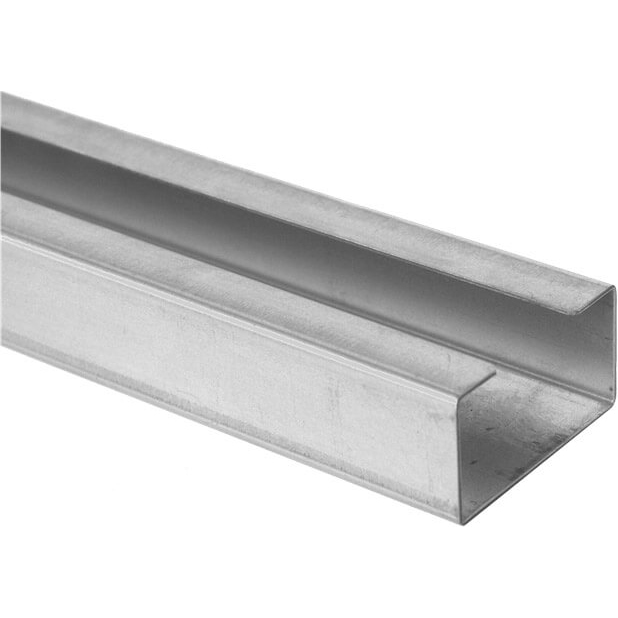

  • 1 x Garage door opener rail
  • 2 x TX2EV 2 channel 868MHz remote control
  • 1 x Manual

Manuals & Datasheets

LiftMaster Evolution LM50EV Manual

LiftMaster Evolution LM50EV Diagrams

Product Specifications

Physical Attributes

Weight10 KG


  • Length: 325 mm
  • Width: 180 mm
  • Height: 110 mm

Electronics Attributes

Voltage220–240 V AC, 50–60 Hz

Garage Door Opener Attributes

Door SuitabilityRetractable
Pulling Force (N)500N
Max Door Size

H = 2.3m / A = 7.5m2

Max Door Weight (KG)60KG
Drive MechanismChain
Rail Length (M)3M

Performance Attributes

Operating Temperature-20°C to +40°C

Motor Attributes

Motor Voltage230v
