LiftMaster 780EV Standalone Wireless Keypad

Modern, stylish design. Installation is simple and wireless. Performs consistently over time.

LiftMaster’s 780EV wireless security keypad is the perfect addition to any LiftMaster garage door or gate operator.

£89.23 incl. VAT. £74.36 excl. VAT

SKU: 780EV Category: Tags: ,

Description

Modern, stylish design. Installation is simple and wireless. Performs consistently over time.

LiftMaster’s 780EV wireless security keypad is the perfect addition to any LiftMaster garage door or gate operator.

Key Features

  • Use with multiple gate or garage door openers at once
  • Temporary PIN, ideal for visitors
  • Standalone keypad
  • Wireless communication, no need for wiring
  • Rolling code security
  • Tri-band frequency 433 MHz
  • Illuminated keyboard with white backlight, which activates when any key is pressed
  • Easy to use in the dark
  • Weather-resistant IP55 rated for outdoor use

Popular Features

4-digit PIN

  • Control several operators, each with its own PIN code
  • Up to 10,000 possible combinations
  • Easily change current PIN codes

Temporary PIN

Visitors and employees can be given a temporary access code that is limited to a set of hours or openings (up to 255 uses or up to 255 hours)

Close With Just One Button

By hitting the enter button without inputting the PIN, the operator can be closed from the open position. Manually deactivating this feature is possible.

Quick and Easy Wireless Installation

No need for time-consuming and costly wiring thanks to wireless communication

Security+ 2.0® Technology

Operates using LiftMaster Security+ 2.0® Tri-band frequency 433 MHz (433.30MHz, 433.92MHz, 434.54MHz).

When the keypad is used to engage with LiftMaster Garage Door and Gate Operators, it practically eliminates interference and provides a longer range.

Easily Portable

The keypad is effortlessly detachable from the mounting bracket. The programming will still be in operation. It’s especially useful for holiday travel.

Manual & Datasheet

Product Specifications

Physical Attributes

Weight250 grams

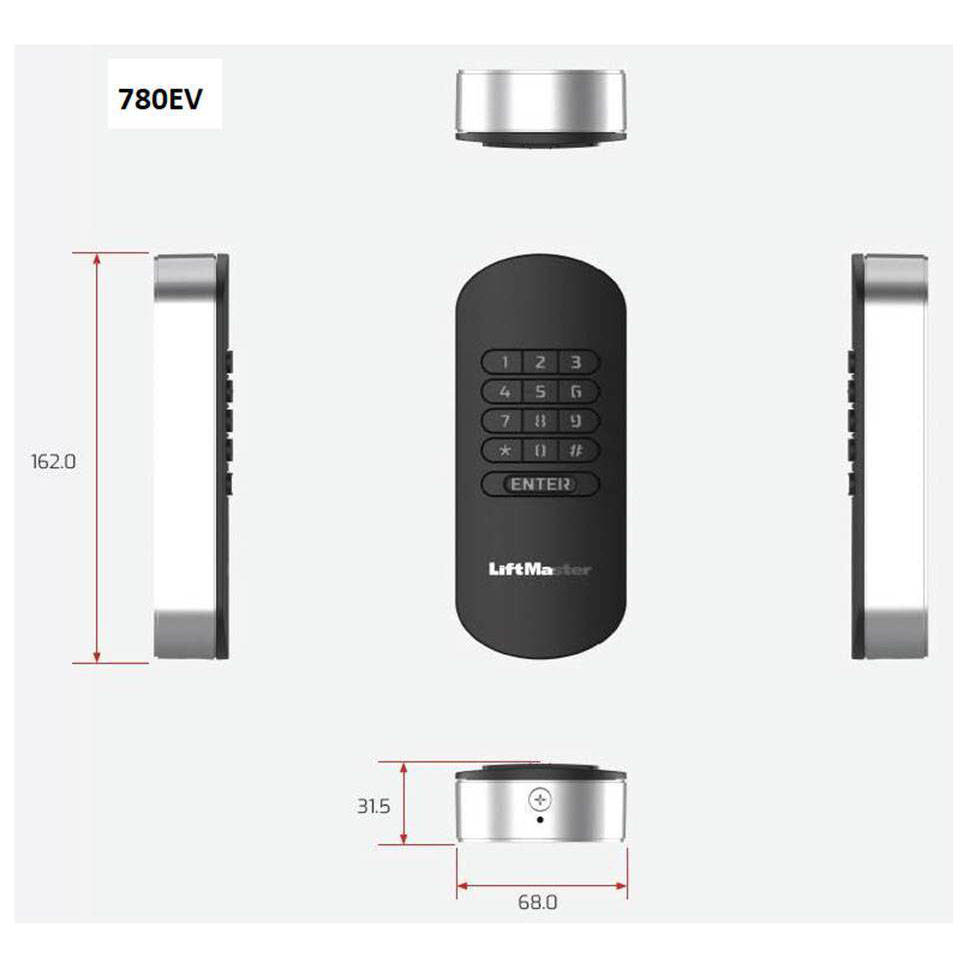

Dimensions
LiftMaster 780EV Keypad

LiftMaster 780EV Keypad

Protection Rating (IP)55
Mounting TypeSurface Mounted
Vandal Resistant?No

Electronics Attributes

Max Power< 10 mW
Battery TypePP3 / 6LR61 (9V Alkaline)
Number of Batteries1
Battery Life (Estimated)5 years

Performance Attributes

Operating Temperature-20°C to 55°C

Radio Attributes

Coding TypeRolling / Hopping Code
Radio Frequency433.92 MHz

Keypad Attributes

Backlit KeysYes
Wireless?Yes
