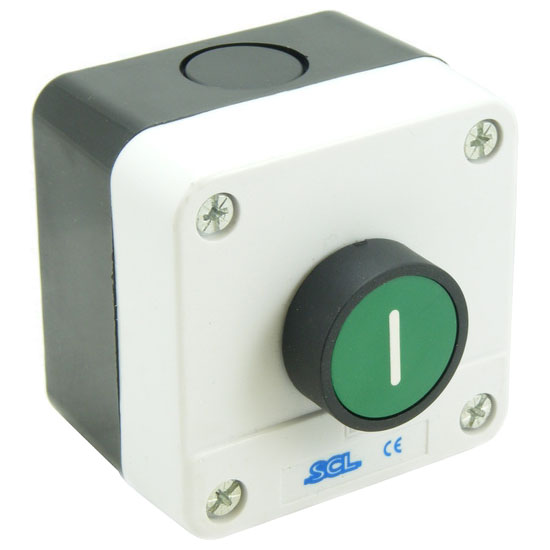

IPBS-G Green IP65 Waterproof Push Button

Large green push button with insulated enclosure. Quick and easy to install.

Suitable for indoor and outdoor use. Weather-proof IP65 protection rating.

£15.54 incl. VAT. £12.95 excl. VAT

SKU: IPBS-G Categories: , Tag:

Description

Features

  • Large green push button with insulated enclosure
  • Quick and easy to install
  • Surface mounted
  • Suitable for indoor and outdoor use
  • Weather-proof IP65 protection rating
  • Supplied with contact blocks
  • 2 x 20mm knockouts
  • Rated up to 240V 50Hz
  • Colour coded contacts
  • CE marked / approved, IEC947-5-1
  • Manufactured in accordance to IEC 60947-5-1

Technical Specifications

  • Voltage: 24-230V
  • Contact Arrangment: 1 N/O
  • Operating Temperature: -25°C to +55°C
  • Approvals: UL, CSA, TUV, CCC, CE
  • Cable Size, Flexible (mm2): 1.3
  • Cable Size, Solid (mm2): 1.3
  • Ingress Protection: IP65
  • Mechanical Life: 3,000,000 ops

Product Specifications

Physical Attributes

Weight250 grams
Protection Rating (IP)IP65
Mounting TypeSurface Mounted
Vandal Resistant?No
