Fireco Freedor SmartSound Door Closer

Innovative wireless overhead door closer device that allows you to effortlessly open and close fire doors in a completely legal, quick and simple way.

£354.00 incl. VAT. £295.00 excl. VAT

SKU: 504-7754 Category: Tag:

Description

Fireco Freedor Smartsound Banner

Freedor SmartSound

The Freedor SmartSound designed by Fireco is an innovative wireless overhead door closer device that allows you to effortlessly open and close fire doors in a completely legal, quick and simple way.

Freedor SmartSound allows you to easily place doors open in any desired position. The closer device is free swing, which makes the door incredibly easy to push open with minimal effort. This provides a fantastic solution to the typical resistance of most other door closer devices.

Even better still, when a fire alarm rings, the Freedor device recognises the sound then automatically releases the door, thus allowing it to close and rapidly prevent the spread of the fire.

Features

3 Years Protection

Enjoy peace of mind with 3-year warranty and up to 3-year battery life

Sound wave

Intelligent sound recognition with innovative SmartSound noise filtering technology

Struggling to open door

Free swing device means no more struggling with heavy fire doors

Checklist

Passes all rules and regulations

Virus

Helps prevent infection by limiting contact with door handles etc

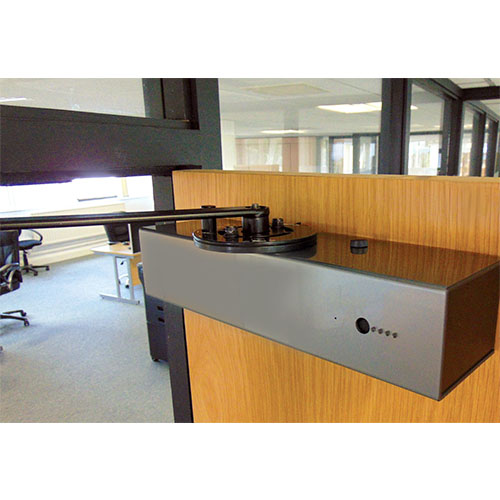

Fireco Freedor SmartSound In Situ 1
Easy Access

Allows for greater freedom of movement and while minimising effort

Fan

Increased indoor ventilation provides better airflow and air quality

Stopwatch

Quickly and easily installed in under 5 minutes!

wire-free

No expensive hard-wiring is needed thanks to wireless technology

Fireco Freedor SmartSound In Situ 2
Fireco Freedor SmartSound In Situ 3
Door Open

Compatible with any kind of door

Remote Control in hand

No programming or complicated set-up required, simply fit the device and you're good to go!

Videos

How Does It Work?

  • Installed at the top of any door, the device is powered by batteries – no wiring required!
  • Door can then be held open at any angle providing ease of access
  • SmartSound technology constantly listens out for the sound of the fire alarm
  • When an alarm rings, the Freedor unit automatically closes the door

What’s Included?

  • 1 x Freedor unit
  • 1 x User Guide
  • 1 x Fitting Template
  • 1 x Closer Arm Pack
  • 1 x Parallel Arm Bracket
  • 1 x Battery Pack
  • 1 x Freedor Adhesive Logo
  • 1 x Radial Arm
  • 1 x Closer Bolt & Radial Arm Bolt Bag contains:
    • 1 x Closer Bolt Assembly
    • 1 x Radial Arm Bolt Assembly
  • 3 x Freedor Body & Arm Fixtures contains:
    • 8 x No. 10 PH Screw
    • 4 x No. 10 CSK Screw,
    • 2 x M5 Short PH Screw
    • 1 x Black Plastic Screwdriver

Manuals & Datasheet

Product Specifications

Physical Attributes

Weight4.50000000 KG
Dimensions

Length: 320mm

Height: 70mm (105mm with arm)

Depth: 95mm

Electronics Attributes

Power Supply9V Alkaline battery pack
Battery Life (Estimated)3 years

Door Closer / Retainer Attributes

ActivationSmartSound listening technology
Audible WarningYes
CasingAcrylic
Compliant ToEN1154, EN1155, EN1634, CE Marked
Fire RatingFreedor has been tested to EN1634-1 on FD30 doorsets, exposed and unexposed faces
Hold OpenPlace open at any angle using free-swing feature
Installation PositionTop of the door
Maximum Door Size

Max Door Weight: 60KG

Max Door Width: 950mm

Power Size: EN3

Suitable ForStandard (category B) system under BS7273-4: 2015
