FAAC S800 230 ENC SBW – 230v Hydraulic Operator (Max Weight 800kg, 4.0m Max Per Leaf)

£974.40

SKU: S800 ENC 230V SBW 100° Category: Tag:

Description

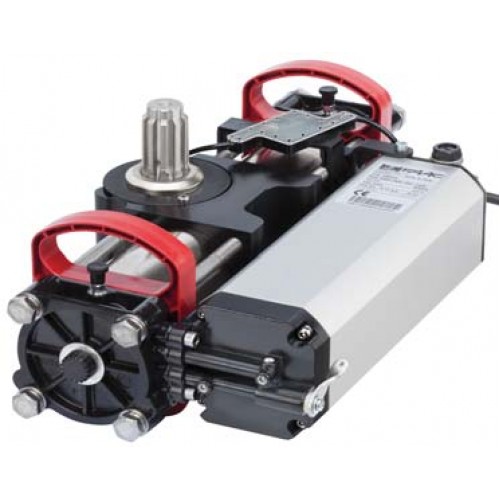

The S800 ENC 230 SBW 100º is a FAAC 230v underground hydraulic operator for residential swing gates up to 4m per leaf, complete with easier handling and installation thanks to the integrated handles. The S800 ENC 230 SBW 100º is a reliable system in any atmosphere thanks to its IP67 protection rating and outdoor temperature range of -20 to +55 ºC

NOTE – The Packages contain: a hydraulic operator with a hydraulic lock at opening/closing (CBAC) without lock (SBW), a magnetic encoder (encoder versions) and setting key.

NOTE – Foundation box package includes: A foundation box in cataphoresis treated steel with anti-rotation pin cover in stainless steel

Technical

  • Max. Gate Weight – 800kg
  • Max. Gate Leaf Length – 4.0m
  • Motor Type – Hydraulic-Mechanical
  • Power Supply – 230v
  • Power – 220W
  • Angular Max Speed – 7.8º/s
  • Protection Level – IP67
  • Working Temp. – -20° to +55°C

Features

  • Integrated absolute magnetic encoder option with bus “2Easy” (non polarized two wire connection). FAAC PATENT
  • Thanks to the integrated positive stops, there is no need to install opening and closing mechanical stops on the ground
  • Service release device.
  • Easier handling and installation thanks to the integrated handles. FAAC PATENT

Product Specifications

Physical and Performance Attributes

Weight17.2 KG
Dimensions

FAAC S800 230 ENC SBW

Weight – 17.2kg

Protection Rating (IP)67
Operating Temperature-20° to +55°C

Electronics Attributes

Max Power220W
Power Supply230v

Motor Attributes

Motor Voltage230v
Automation TypeUnderground
Kit TypeMotor Only
