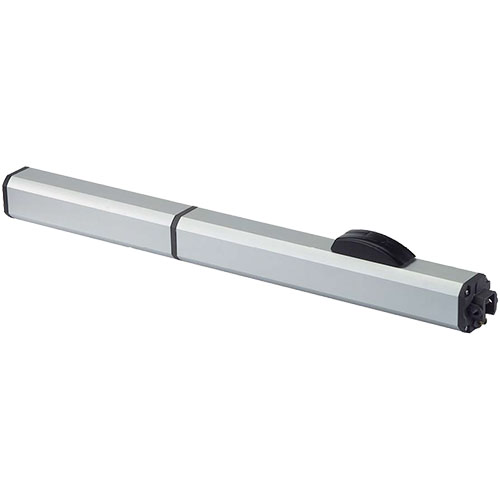

FAAC 400 SB – Ram Operator (230v, 4.0m Max Per Leaf)


SKU: 400 SB 1.0 Category: Tag:

Gate Measurement Video Guide

If you need help determining the A / B measurements of your gate, check out our helpful video guide (right).


The 400 SB is a FAAC 230v hydraulic ram operator for condominium & industrial swing gates for up to 4.0m per leaf, complete with maximum anti-crushing safety thanks to an exclusive hydraulic device. The FAAC 400 SB is a large, robust operator – ideal for more demanding applications.


  • Motor Type – Hydraulic
  • Motor Locking Type – Non-Locking
  • Max. Gate Leaf Length (M) – 4.0m
  • Power Supply (V) – 230v
  • Absorption (A) – 1A
  • Power (W) – 220W
  • Rod Speed (cm/s) – 1 cm/s
  • Protection Level (IP) – IP55
  • Working Temp. (°C Min/Max) – -20°C to +55°C


  • Large, robust operator suitable for condominium and industrial swing-leaf gates up to 4.0m
  • Maximum anti-crushing safety thanks to an exclusive hydraulic device
  • In case of power cut, the rotation of the (key protected) release device above makes it possible to open/close the gate manually

Product Specifications

Physical and Performance Attributes

Weight8.6 KG
Dimensions (L x W x H)1031 × 113 × 85 mm


Dimensions – 113 x 85 1031mm

Weight – 8.6kg

Protection Rating (IP)55
Operating Temperature-20°C to +55°C

Electronics Attributes

Max Power220W
Power Supply230v

Motor Attributes

Motor Voltage24v
Automation TypeRam
Kit TypeMotor Only
