Eltako Impulse Switch With Integrated Relay Function

Description

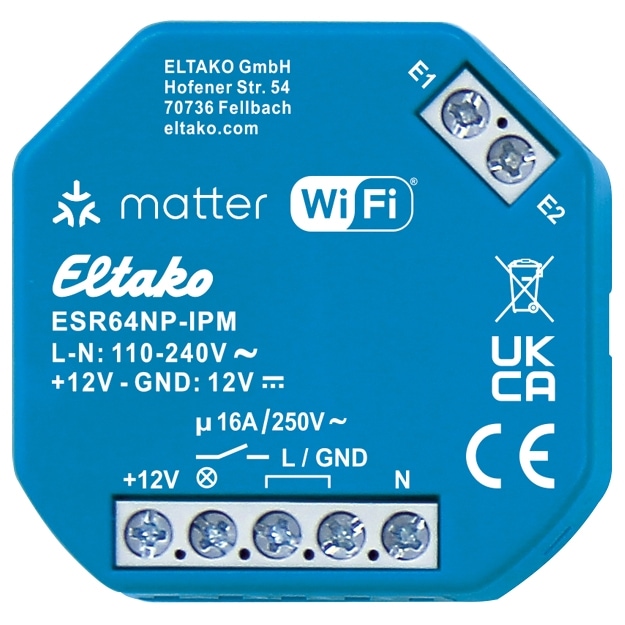

Eltako ESR64NP-IPM Impulse Switch – IP, Matter via Wi-Fi, Optional EnOcean

A smart, high-performance impulse switch with integrated relay functionality, designed for modern automation systems and seamless ecosystem integration.

Key Features

Smart Connectivity

• Supports Matter over Wi-Fi (2.4 GHz) for cross-platform compatibility
• Optional EnOcean support via plug-in adapter
• Over-the-Air (OTA) firmware updates
• REST API for custom integrations

High Switching Capacity

• 1 NO contact (not potential-free), rated at 16A / 250V AC
• Supports:
  • 230V LED lamps up to 600W
  • Incandescent/Halogen lamps up to 2000W

Efficient & Safe Operation

• Zero-cross switching to protect contacts and connected loads
• Hybrid technology combines electronic control with high-capacity relays
• Low standby power consumption: only 0.7W
• No glow lamp current allowed

Flexible Power Supply

• Operates on 12V DC or 110–230V AC
• Switching and control voltage must match supply potential

Compact & Easy to Install

• Dimensions: 46 x 45 mm, depth: 20 mm
• Screw terminals support conductor sizes up to 2.5 mm²

Ecosystem Compatibility

• Works with Matter-compatible controllers:
  • Apple Home (e.g., HomePod mini)
  • Amazon Alexa (e.g., Echo Dot)
  • Google Home (e.g., Nest Mini)
• Optional configuration via Eltako Connect App

Expandable Functionality

• Supports plug-on adapters like the EOA64 EnOcean Adapter
• Developer-friendly with REST API

Article Number

30064015
