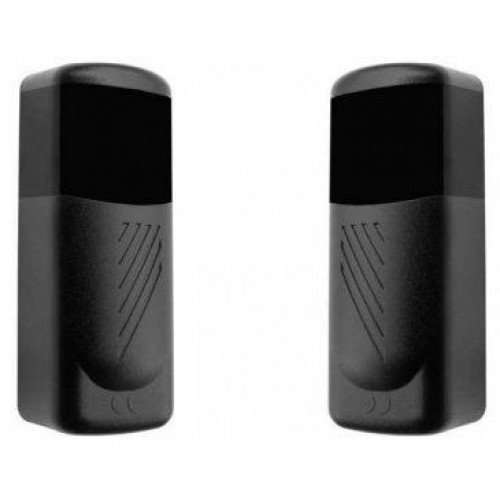

EasyGates Zoom-Z180B Digital Relay Battery Photocells

  • EasyGates Branded Zoom Photocells
  • BAT3 battery (2 AAA LR03 of 1,5V)
  • 10 – 20m Range
  • IP55 Protection Rating
  • Part of the Zoom photocells range.


SKU: ZOOM-Z180B Category: Tag:


The Zoom Z180B photocells are powered by a BAT3 battery (2 AAA LR03 of 1,5V) which lasts up to 15 months (the range up can be selected).

These photocells are resistant to the elements thanks to an IP55 protection rating.

Part of the Zoom photocells range.


  • Power supply (receiver): 12/24 Vac/Dc
  • Power supply (transmitter):
    DIP 4 TX-RX OFF: 3.0V (2 x AAA, 1.5v)
    DIP 4 TX-RX ON: 12/24 Vac/dc
  • Max TX Power Absorption:
    DIP 4 TX-RX OFF: 0.04 / 0.12 mA
    DIP 4 TX-RX ON: 12 / 25 mA
  • Limit power supply: 28-35 Vdc – 15-28 Vac
  • Range: 10/20m
  • RX Power Consumption: 35 mA
  • Output Relay Contact: max 500mA e 48Vac/dc
  • Protection: IP55

Product Specifications

Physical and Performance Attributes

Weight200 grams
Dimensions (L x W x H)35 × 105 × 35 mm
Protection Rating (IP)55
Vandal Resistant?No
Mounting TypeSurface Mounted

Electronics Attributes

Power Supply12/24 Vac/dc

Safety Attributes

Estimated Range (m)20M
Photocell Connection TypeRelay Photocell
