Comelit Quadra Video Intercom Kit (with Alexa Support)
The Comelit Quadra Video Intercom Kit is a single entrance hard wired video intercom system that comes with a Comelit Mini Handsfree Wi-fi Monitor, this allows you to expand the functions of a classic door entry system to your smartphone.
£670.80
EAN / Barcode: 5056599026834
Description
The Comelit Quadra Video Intercom Kit is a single entrance hard wired video intercom system that comes with a Comelit Mini Handsfree Wi-fi Monitor, this allows you to expand the functions of a classic door entry system to your smartphone. The Comelit application is available for iOS and Android users, enhance your experience with the latest update and new Facial Recognition function to open your door at a glance. The panel includes a single caller button, high performance loudspeaker, colour video with wide viewing angle and LED lighting with 4 function indicators.
Controller
Switch on lights and open the gate from your smartphone
HQ Camera
View images in real time from the entrance panel and CCTV
History
View all video clips (up to 10 seconds) recorded from the intercom
Efficient
Application only active when in use, saving battery and usage data

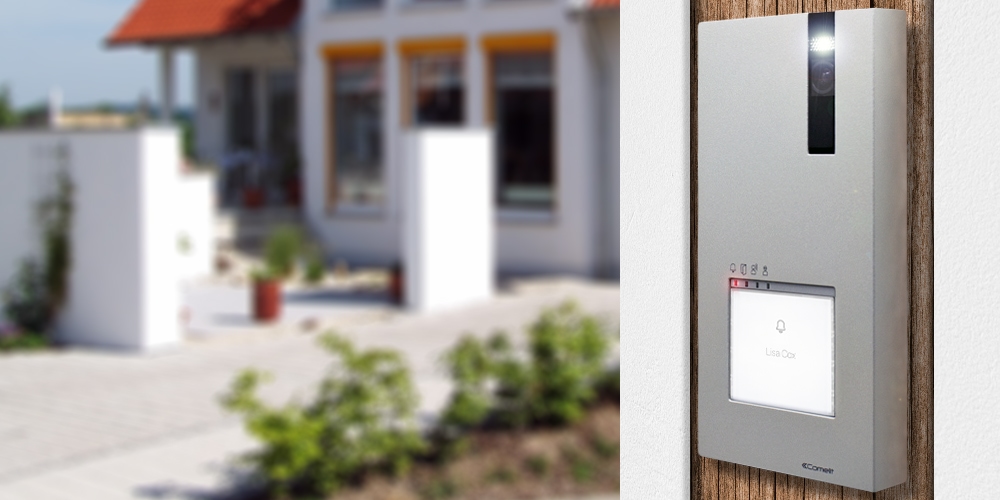

Quadra Intercom Panel
The kit features a wall-mounted Quadra series video entry intercom unit with mechanical buttons. Simple and robust the die-cast aluminium facade has an IK08 rating to ensure a durable long life, and an IP54 certification to secure the panel from dust and water spray. A wide angle colour camera and LED lighting allow you to see your entrance in any light, and facilitate night use. LED indicators for; call sent, lock-release, audio activation and system busy. Speaker volume and audio balance are adjustable and power is supplied from the bus line.
Mini Wi-Fi Monitor
Included in the kit is a full-duplex audio and 4.3" / 16:9 colour screen wall-mounted hands-free monitor, that uses Wi-Fi to allow call forwarding to mobile devices. Brightness and ringtone settings can be adjusted, and features 8 touch sensitive back-lit controls for; door opening, self ignition, switchboard call, audio activation, privacy service. The device has LED signalling to reflect door status, and 2 x 8-position dip-switches for programming user codes and buttons.
Kit Contents & Features
1 x Quadra Entrance Panel
1 x Quadra Entrance PanelWall-mounted Quadra series hard-wired video entry intercom unit with mechanical buttons. Die-cast aluminium facade with wide angle colour camera and LED lighting for night use. LED indicators for; call sent, lock-release, audio activation and system busy. Speaker volume and audio balance are adjustable and power is supplied
| Finish: | Die-cast aluminium |
| Mount: | Wall-mounted |
| Sensor: | 1/4" CMOS |
| Lens size: | 2.1 mm |
| Diagonal viewing angle: | 100º |
| Minimum colour lighting: | 0.1 lux |
| Horizontal resolution: | 550 TVL |
| Signal / Noise ratio: | 48 dB |
| Maximum current absorption: | 250 mA |
| Clamps: | LL RTE COM DO SE- SE+C NC NO |
| Buttons to call: | 4 |
| Volume Control: | Microphone & loudspeaker |
| Operating temperature: | -25 ÷ 55°C |
| RH operating humidity: | 25 ÷ 75% |
| IP protection rating (IP code): | IP54 |
| Vandal resistant rating (IK code): | IK08 |
| Backlight colour: | White |
| Simplebus 2 audio/video system: | Yes |
| Building kit audio/video system: | Yes |
| Vip system: | Yes |
| External unit dimensions (HWD): | 95 x 195 x 28 mm |
1 x Mini Handsfree Wi-Fi Monitor
1 x Mini Handsfree Wi-Fi MonitorFull-duplex audio and 4.3" / 16:9 colour screen wall-mounted hands-free monitor, Wi-Fi to allow call forwarding to mobile devices. Brightness and ringtone settings can be adjusted, 8 touch sensitive back-lit controls for; door opening, self ignition, switchboard call, audio activation, privacy service and LED signalling to reflect door status. 2 x 8-position dip-switches for programming user codes and buttons. Monitor can only be used with 2-wire system Simplebus 2.
| Material: | ABS |
| Colour: | White |
| Weight: | 400g |
| Simplebus 2 audio/video kit with power | Yes |
| Display size: | 4.3" |
| Aspect ratio: | 16:9 |
| Resolution: | 480 x 272 px |
| Type: | Handsfree |
| Microphone: | 6mm (ø), omnidirectional |
| Loudspeaker: | 36mm (ø), 40 ohm, 1W |
| Type of power supply: | Power supply from video door entry bus |
| Supply voltage: | 22 ÷ 34 VDC (bus) |
| Stand-by absorption: | 0.1 |
| Stand-by absorption in kit mode: | 1.9 |
| Maximum absorption: | 8.1 |
| Type of buttons: | Capacitive |
| Service buttons: | Answer, Silent (Privacy), Menu, Messages, Door open |
| No. of programmable buttons: | 4 |
| Terminals: | L L CFP1 CFP2 |
| Removable terminals: | Yes |
| Capacity control: | Loudspeaker / ringtone / screen brightness |
| Encryption and authentication method supported: | TKIP WPA2-PSK AES WEP 64 bits (5-digit ASCII or 10 hexadecimal codes) WEP 128 bits (13-digit ASCII or 26 hexadecimal codes) WPS authentication (supported for WPA2-PSK) |
| IP address assignment: | DHCP |
| IoT connection to Comelit Cloud: | Yes |
| Firmware update via Comelit Cloud: | Yes |
| IP protection degree: | IP30 |
| Operating temperature (°C): | 5 ÷ 40 |
| Operating humidity (RH max - %): | 25 ÷ 75 |
| Environmental class: | I |
| Compliance and Certifications: | RoHS II - 2011/65/UE (EN 50581:2012), RED 2014/53/UE (EN 60950-1:2006+A11:2009+A1:2010+A12:2011, +A2:2013, EN 62311:2008, EN 61000-6-1:2007, EN 61000-6-3:2007 + A1:2011, ETSI EN 301 489-1 V2.2.0, ETSI EN 301 489-17 V3.2.0, ETSI EN 300 328 V2.1.1) |
| Compatibility with Comelit app: | Yes |
| Door opener: | Yes |
| Self-ignition: | Yes |
| Intercom calls: | Yes |
| Actuator control: | Yes |
| CPS call: | Yes |
| Outside door call input: | Yes |
| Privacy mode: | Yes |
| Video memory: | Yes |
| Door opening on call (doctor): | Yes |
| Automatic answer (handsfree): | Yes |
| Door open signalling: | Yes |
| Multiple address: | Yes |
| Customisable ringtone: | Yes |
| Date / time display: | Yes |
| Sending alarm calls: | Yes |
| External unit dimensions (HWD): | 160 x 115 x 22 mm |
1 x 2-Wire Video Kit Power Supply Unit
1 x 2-Wire Video Kit Power Supply Unit33 VDC power supply unit with overload and short circuit protections features, two separate continuous outputs: one for intercom panel and the other for monitor power supply. Input voltage = 110 - 240 VAC.
| Supply voltage: | 110 ÷ 240 VAC |
| Input connector: | Terminal block |
| Application: | DIN rail |
| Number of DIN modules: | 6 |
| Maximum current delivered: | 1.2 A |
| Unit dimensions (HWD): | 62 x 106 x 89 mm (6 DIN modules) |
1 x Backplate and Distribution Terminal for Mini Handsfree Wi-Fi Monitor
1 x Backplate and Distribution Terminal for Mini Handsfree Wi-Fi MonitorWall-mounting or residential series box backplate for MINI monitor.
| Finish: | PMMA |
| Colour: | White |
| Unit dimensions (HWD): | 300 x 270 x 3 mm |
1 x Video Riser Termination for Simplebus
1 x Video Riser Termination for SimplebusLine termination terminal, to be mounted at the end of the riser. Install according to the indicators given in the technical documentation, to optimise distribution of the signals.
Alexa Support
Do you have Amazon Alexa?You won’t need anything else to control your system with your voice, you can integrate your Amazon Alexa into your Comelit door entry monitor system in a few simple steps, without the help of a professional.
What you will need
- Have a configured and working Alexa device
- Have a Mini Wi-Fi door entry monitor (6741W) with firmware version >= 1.4.0 (the door entry monitor automatically updates to the latest available firmware version without requiring user action)
- Have installed the latest version of the Comelit App on your smartphone (4.1.11)
- Have installed the Amazon Alexa app on your smartphone
Functions of the Alexa Support
- Get notified of someone ringing the bell
- If the face recognition feature is active and the face of the guest is registered you can receive a notification of who has rang the bell, "Emma has arrived"
- Open doors or gates using your voice
- If you have assigned actuators (e.g "porch lamp") to a button on the monitor, you can activate them with your voice, "Alexa, turn on porch lamp"
How to set up Alexa functionality
- Download/Update Comelit App to the latest available version (4.1.11) and pair your Mini Wi-Fi to the user you are registered with in the Comelit App
- Download the Amazon Alexa app and enable the Comelit Home capabilities
- Configure the interaction events
for more info on setting up Alexa support click here
The Comelit app
Live & Archive Playback
View recorded messages from visitors
Call Forwarding
Answer the Intercom anywhere
Push Notifications
Save data and battery
Facial Recognition
Intercall
Call the door monitor
Actuator Control
Control actuators to manage lights & gates
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 5 KG |
| Dimensions |
|
| Protection Rating (IP) | 54 |
| Vandal Resistant? | Yes |
| Mounting Type | Surface Mounted |
| Operating Temperature | -25 ÷ 55 |
Electronics Attributes | |
| Max Absorption | 250 A |
| Max Power | 1.2 A |
| Power Supply | 110 - 240 VAC |
Access Control Attributes | |
| Intercom Type | Audio |
