Chamberlain CHAA250EVC Double Swing Gate Opener Kit – myQ Compatible
24v
200KG
2.5M
Ideal for double swing gates with wide posts, the Chamberlain CHAA250EVC swing gate opener kit provides an easy, secure, and practical experience for operating exterior gates.
Can be operated with a smartphone from any location via Chamberlain myQ*.
*myQ functionality requires the 830REV myQ starter kit accessory (sold separately)
Unfortunately, this product is temporarily out of stock. We are awaiting information regarding the availability of this product.
Description
Ideal for double swing gates with wide posts, the Chamberlain CHAA250EVC swing gate opener kit provides an easy, secure, and practical experience for operating exterior gates.
Make Your Gates Smarter
It’s even more enjoyable to get home when you have a strong motor and smart Chamberlain myQ technologies* to open your gates for you. Because the CHAA250EVC can be monitored and controlled via a smartphone through Chamberlain myQ* from any location, your gates no longer have to be manually opened and closed.
Did you leave your phone at home? Empty phone battery? Not an issue! Proceed as usual with the included remote control transmitters.
*myQ functionality requires the 830REV myQ starter kit accessory (sold separately)
Ideal for Residential Settings
For double swing gates with wide posts, the CHAA250EVC swing gate operator can manage gate leaves up to 2.5m wide or 200kg in weight (please refer to the product manual for more information).
One gate leaf can be opened and the automated closing mechanism adjusted with a few clicks. Additionally, the motor incorporates soft start and soft stop features to lessen noise. Safety is further enhanced by automatic obstacle detection.
Faster, Simpler Installation
A number of pre-assembled components, such the printed circuit board with the integrated radio module and transformer, and the pre-trained handheld remote controls, make installation simpler and faster.
Wireless Technology
This wireless technology is the greatest that Chamberlain has ever offered in terms of safety.
Great Value Package
The kit comprises of two hinged arms, a control board, mounting materials, two modern hand-held transmitters, four release keys for emergency unlocking (such as in the event of unexpected power failure), and a set of infrared safety photocells in addition to the two drives.

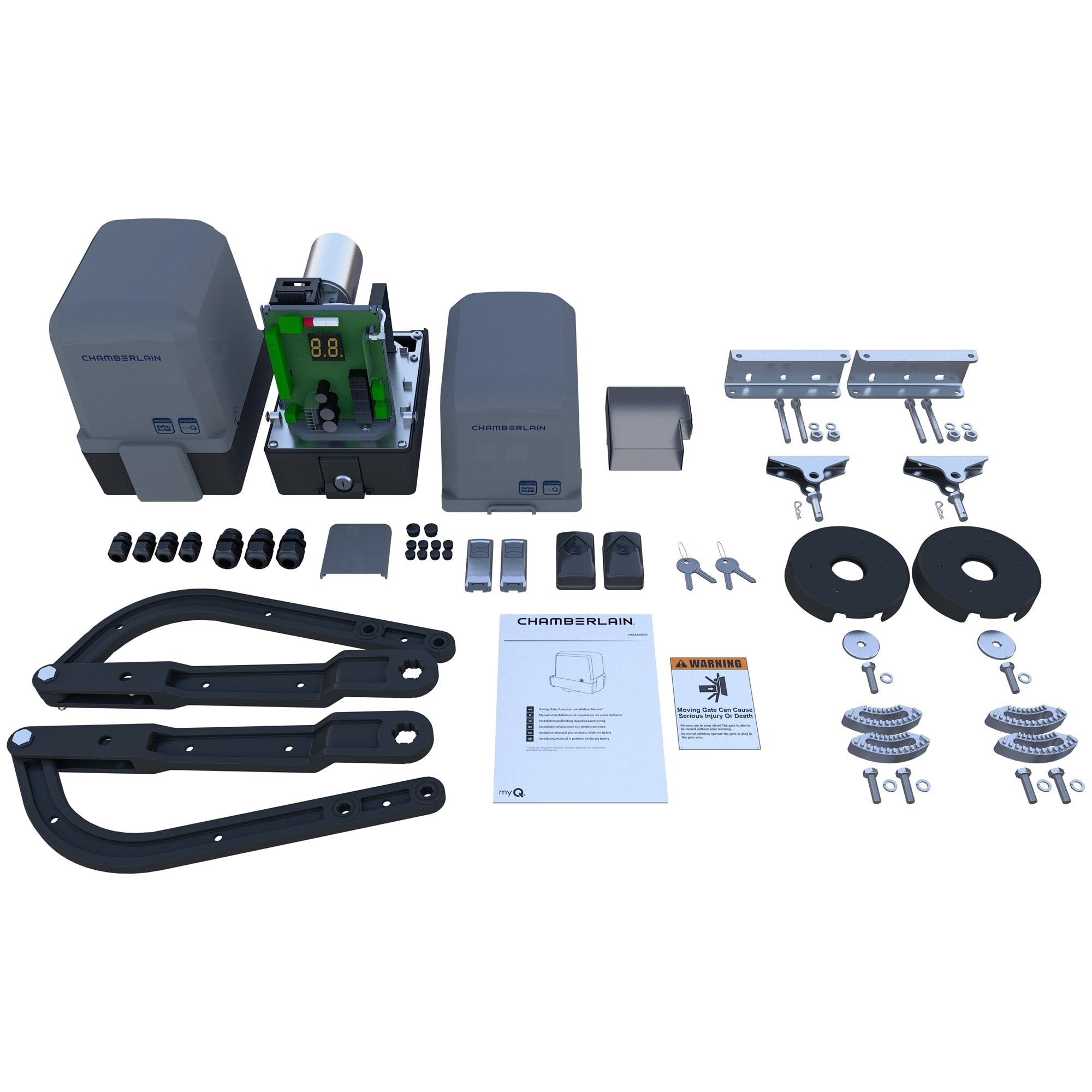

What’s Included?
- 1 x CHAA250EVC primary motor unit with control board
- 1 x CHAA250EVC secondary motor unit
- 2 x Articulated/hinged motor arms
- 2 x TX4REV-F 4-channel remote controls
- 1 x Pair of 771REV safety photocells
- 4 x Emergency release keys
- 1 x Installation manual
- Various installation hardware (refer to product manual for more information)
Manuals and Guides
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 20.000 KG |
| Operating Temperature | -20°C to +55°C |
Electronics Attributes | |
| Max Power | 100W (CHAA250-24P), 50W (CHAA250-24S) |
| Power Supply | 220-240 VAC 50/60 Hz |
| Stand-by Power | 3.2 W (without accessories) |
Motor Attributes | |
| Duty Cycle / Work Cycle | 5 cycles per hour 20 cycles per day |
| Torque | 200Nm |
| Motor Type | Electromechanical |
| Motor Voltage | 24v |
| Noise Level | 70dB |
| Safety Edge Input | 8K2OHM |
| Soft-Start / Soft-Stop | Yes |
| Automation Type | Articulated |
| Kit Type | Double |
| Max. Gate Leaf Length (M) | 2.5M |
| Max. Gate Weight (KG) | 200KG |
| Number of Leafs | 2 |
| Max Opening Angle | 120° |
Misc Product Attributes | |

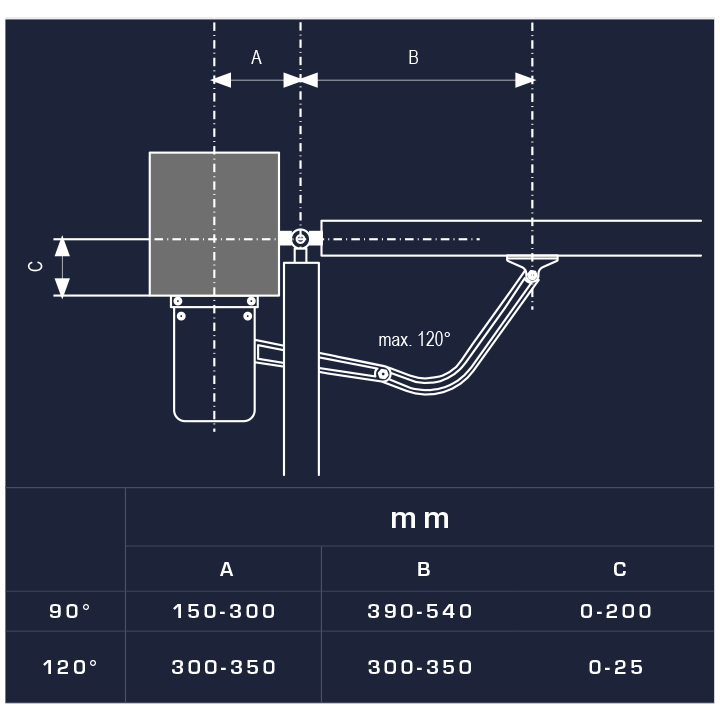

Max. Wing Weight (m/kg) 1.5m / 200kg 2m / 150kg 2.5m / 100Kg Installation Geometry
Click thumbnail to enlarge Time to open to 90° 13-15s Operating Radio Frequency
Code Security+ 2.0 Max Number of Remotes 180 Max Number of Keypads 4 Max Number of myQ Devices 16 Max Number of IR’s 3 Max Number of External Inputs 3 Optional Battery Back-up Unit 2 x 12V, 2.2Ah batteries model 490EV | |
