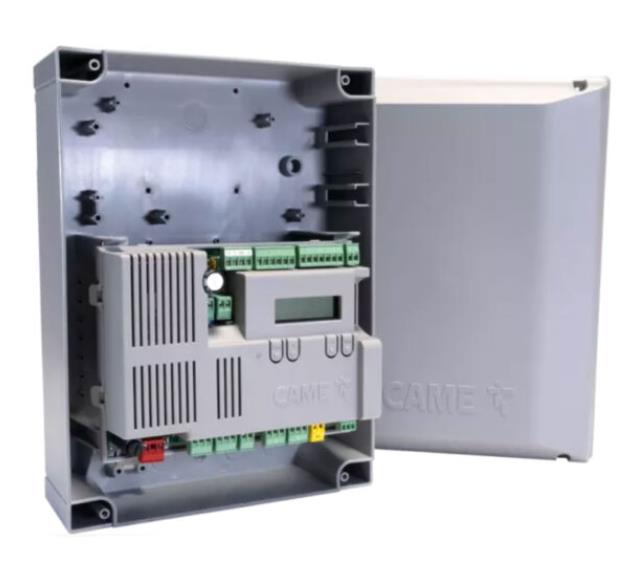

CAME ZLX230S Control Panel

Advanced 230V swing gate control panel featuring a graphic display, adaptive speed and torque management, four configurable safety inputs, an integrated clock module, and capacity for up to 1000 users.

£286.20

SKU: ZLX230S Category:

Description

CAME ZLX230S 230v Advanced Multifunction Control Panel for Swing Gates

The CAME ZLX230S is the most advanced and fully featured model in the ZLX230 control panel series. It is built for demanding installations that require flexibility, strong safety features, and precise control.

With its full graphic display, the ZLX230S provides an easy and intuitive programming experience, offering clear status information and simple navigation through text-based menus. Its adaptive speed and torque management delivers accurate gate movement, while the Digital Torque Control (DTC) system constantly monitors and adjusts operation for safe and dependable performance.

This control panel includes four configurable safety inputs, B1-B2 outputs, compatibility with the CAME RIO System 2.0, and a built-in clock module that can schedule up to eight time slots across a sixteen-day cycle. Supporting up to 1000 users, the ZLX230S is well suited for large residential developments, commercial sites, and busy entry points.

Key Features:

  • Advanced 230V control board for swing gate systems
  • Graphic display with an easy-to-use text-based programming menu
  • Digital Torque Control (DTC) for smart and responsive gate operation
  • Adaptive control of speed and torque for smoother movement
  • Four configurable safety inputs to suit a wide range of setups
  • B1-B2 outputs available only on the ZLX230S model
  • Support for CAME KEY and Wi-Fi Gateway accessories
  • Built-in clock module with eight programmable time slots across a sixteen-day period
  • Capacity for up to 1000 users
  • Fully compatible with the RIO System 2.0 wireless safety range
  • Engineered for heavy-duty use and complex installations
  • Meets EU Regulation 2023/826 standards

Manuals/Data Sheets:

Product Specifications

Physical and Performance Attributes

Weight1.7 KG
Dimensions (L x W x H)320 mm

Misc Product Attributes

Specification ZLX230S (801QA‑0130)
Power supply 220–240V AC
Motor power supply 220–240V AC
Power (W) 1100
Stand‑by consumption 0.8 W
IP rating IP54
Operating temperature -20°C to +55°C
Length 320 mm
Weight 1.7 kg
Max users 1000
Display Graphic
