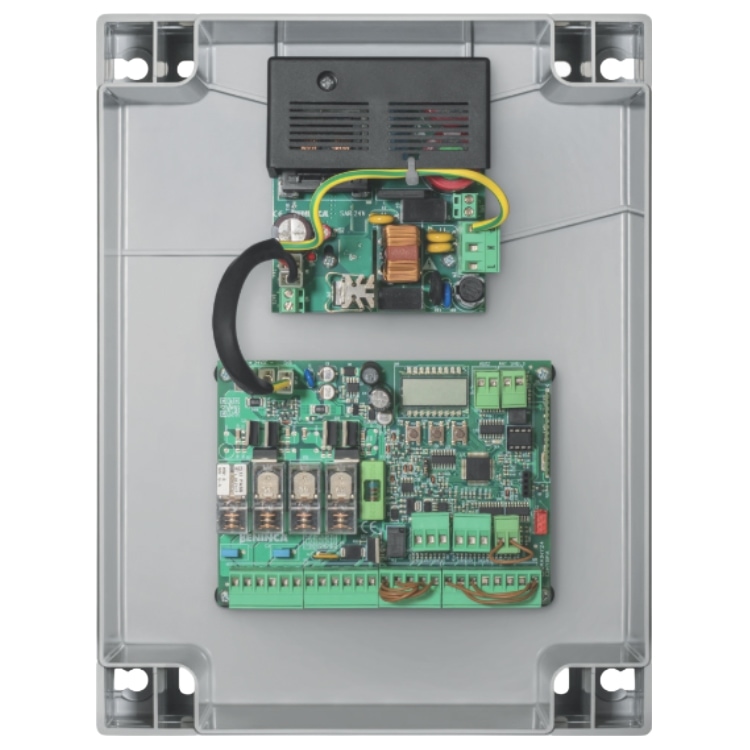

Beninca BRAINY PLUS 24v Control Panel

Beninca BRAINY PLUS 24v Control Panel

Beninca BRAINY24 PLUS control panel for 24V gate automation systems, featuring an integrated receiver, battery charger and advanced safety functions.

The BRAINY24 PLUS can replace the BRAINY24 model.

£352.80

SKU: BRAINY 24 PLUS Category:

Description

Beninca BRAINY24 PLUS 24V Control Panel with Integrated Receiver & Battery Charger

The Beninca BRAINY24 PLUS is a versatile 24V DC control panel designed for the automation of swing gates, opposed sliding gates, and industrial folding doors. Suitable for controlling 1 or 2 actuators, it combines advanced control features, integrated safety functions, and flexible programming options within a single compact unit. The BRAINY24 PLUS can replace the BRAINY24 model.

Featuring an integrated LCD display, built-in 433.92 MHz radio receiver, and integrated battery charger, the BRAINY24 PLUS provides straightforward setup and reliable operation for both residential and commercial gate automation systems. Independent control of each actuator allows separate adjustment of torque, speed, and slowdown settings, ensuring smooth and precise movement.

The controller incorporates advanced anti-crushing protection through amperometric detection and encoder management, including an encoder input for 24V DC hydraulic motors. A comprehensive range of dedicated inputs is provided, including open, close, step-by-step, pedestrian access, stop, separate opening/closing and closing photocell inputs, and an input for N.C. or 8K2 sensitive safety edges. Two configurable outputs can be assigned as an open gate indicator, second radio channel, courtesy light, zone light, photocell testing, flashing light, open gate alarm, or N.C. input alarm, while dedicated outputs are also available for a 12V DC electric lock and flashing light connection.

The unit is compatible with the Beninca BeUP ecosystem, allowing configuration, diagnostics, firmware updates, and radio transmitter management via the optional PRO.UP accessory and Advantouch system. Additional features such as maintenance warnings, manoeuvre counting, password-protected programming, automatic operating parameter setup, and optional KNX integration via the X.BE card make it a powerful solution for professional gate automation installations.

Key Features

  • Suitable for controlling 1 or 2 actuators
  • Compatible with swing gates, opposed sliding gates, and industrial folding doors (up to 2 sections)
  • 24V DC motor output: 240W + 240W
  • Selectable 115V / 230V AC power supply (50/60Hz)
  • Integrated LCD display
  • Built-in 433.92 MHz radio receiver with storage for up to 64 codes
  • Supports Advanced Rolling Code, Rolling Code, and Fixed Code transmitters
  • Built-in battery charger
  • Automatic operating parameter setup
  • Independent electronic torque adjustment for each actuator
  • Independent electronic speed adjustment for each actuator
  • Separate opening and closing slowdown adjustment for each actuator
  • Anti-crushing safety system using amperometric detection and encoder management
  • Open, close, step-by-step, pedestrian, and stop inputs
  • Separate opening/closing and closing photocell inputs
  • Input for N.C. or 8K2 sensitive safety edges
  • Encoder input for 24V DC hydraulic motors
  • 12V DC electric lock output
  • Dedicated flashing light output
  • Two configurable outputs for gate status indication, second radio channel, courtesy lighting, zone lighting, photocell testing, flashing light, open gate alarm, or N.C. input alarm functions
  • Removable terminal boards
  • Separate limit switch inputs for each actuator
  • Maintenance warning and manoeuvre counter
  • Password-protected programming access
  • Compatible with KNX systems via the optional X.BE card
  • Compatible with the BeUP app and PRO.UP accessory for configuration, diagnostics, firmware updates, and transmitter management via the Advantouch system

Technical Specifications

  • Application: Swing gates, opposed sliding gates, and industrial folding doors (up to 2 sections)
  • Control Unit Power Supply: 115/230V AC, 50/60Hz (selectable)
  • Motor Supply: 24V DC
  • Maximum Motor Power: 240W + 240W
  • Radio Frequency: 433.92 MHz
  • Receiver Capacity: 64 codes
  • Battery Charger: Integrated
  • Programming Interface: LCD display with password-protected access
  • KNX Compatibility: Via optional X.BE card
  • Remote Management: BeUP app via optional PRO.UP accessory
