AES DECT 603 Series Wireless Audio Intercom System
AES DECT 603 series wireless audio intercom system suitable for one household or business. High quality, reliable intercom system that is available in a range of options to suit your needs.
Audio handset to easily speak to your visitors from inside the property.
£378.00 – £576.00
Additional Handsets
Description
The AES DECT 603 series wireless audio intercom system is suitable for one household or business. The DECT 603 is a high-quality, reliable intercom system available in a range of options to suit your needs. Perfect for residential and commercial use with world-class long-range performance.
Using the included audio handset you can easily speak to your visitors from inside the property, and even release the gate/door directly from the handset – it really is that simple!
Features
Key Features
- World-leading wireless audio intercom system
- Crystal clear audio quality thanks to 1.88GHz DECT digital signal technology
- Long working range, ideal for working over large distances
- The voicemail feature allows visitors to leave messages if you unavailable to answer
- 2-year warranty
Quality Design
- BS316 marine grade brushed stainless steel construction for strength and durability – available with or without black gloss acrylic trim
- Sleek, architectural curved design with classy back-lighting effect and illuminated button(s) for ease of use in the dark
- Gloss acrylic finish models have a blue back lighting effect
- Stainless steel finish models have a white backlighting effect
- Reliable IP55 weather-resistant protection against dust and water
- Vandal-resistant design with security screws
Portable Audio Handset
- Voicemail feature to record missed callers at your door or gate, so you can later playback the messages on the handset itself
- Inter-call between handsets, great for quick and easy communication between rooms
- The charging dock ensures the handset always has enough power
- Controls 2 relays
- One handset supplied as standard, expandable up to 4 handsets / indoor units per system
- AAA Ni-mH rechargeable handset battery
- 24 hours battery life between charges
Technical
- Up to 500m open field range, 200m expected working range* through 1 exterior concrete, brick or stone wall
- Digital wireless signal for clear voice communication
- Stores up to 16 voicemails at a time
- Adjustable volume to suit the installation environment
*range varies according to building construction, obstacles, shrubs, trees, the height of the transmitter, etc
Optional Keypad
- Illuminated keypad for easy use in the dark
- 3 relay outputs, all of which are independent of the intercom/app relays
- Latching and momentary operating functions
- 4-8 digit passcode protected
- Stores up to 1200 user codes
What’s Included
- 1 x Intercom (outdoor speech panel)
- 1 x Long range transmitter module
- 1 x 5v DC Power Supply (Adaptor Included)
- 1 x Screened CAT5 cable (3 metres)
- 1 x Portable audio handset (indoor speech unit)
- 1 x Charging base & charger for one audio handset
- 1 x Instruction Manual
Manuals & Datasheets
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 2.5 KG |

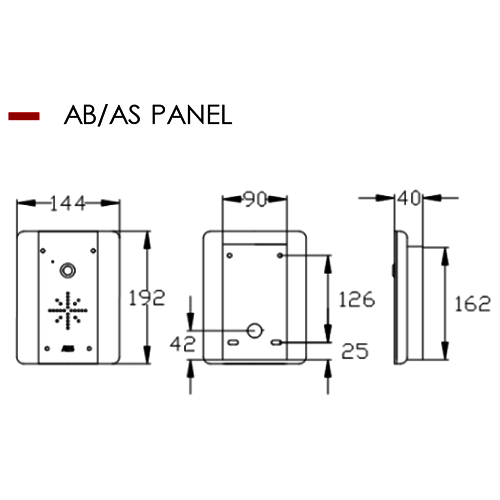

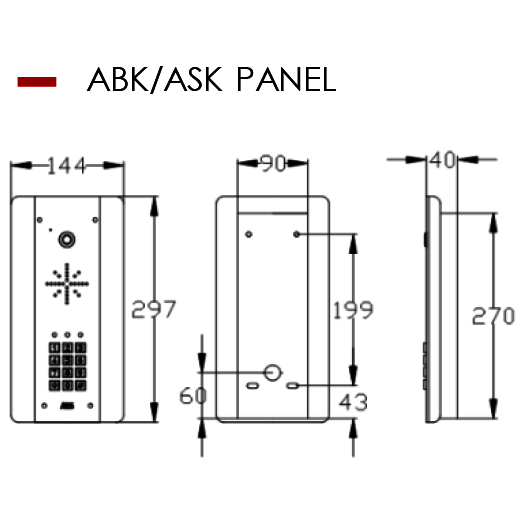

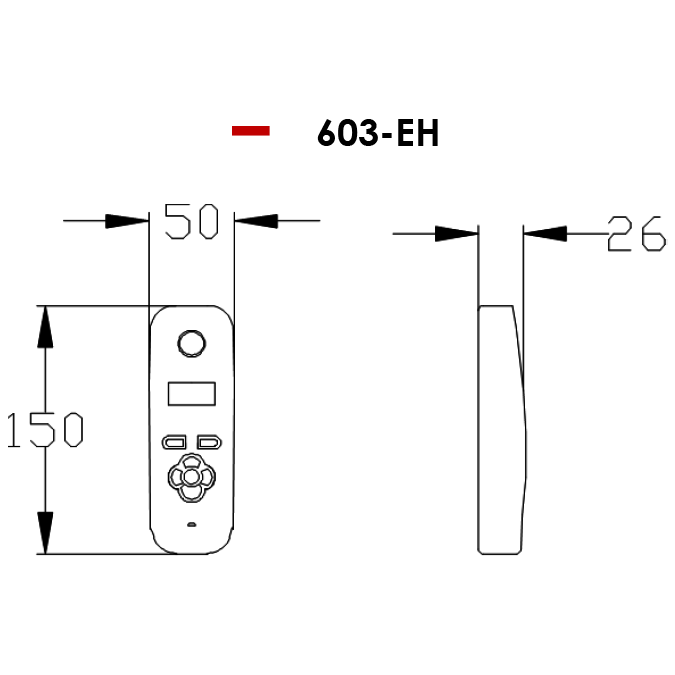

| Dimensions | Click To Enlarge Diagrams AES AB/AS Panel Dimensions AES ABK/ASK Panel Dimensions AES 603 Handset Dimensions |
| Protection Rating (IP) | 55 |
| Vandal Resistant? | Yes |
| Mounting Type | Surface Mounted |
Electronics Attributes | |
| Max Consumption | 65mA Standby, 400mA Calling |
| Power Supply | 24v DC (adaptor included) |
Access Control Attributes | |
| Intercom Type | Audio |
| PSU Included | Yes |
| Number of Codes | 1200 |
| Code Length | 4-8 digit |
| Number of Relays | 3 |
| Relay Output | NO & NC |
| Backlit Keys | Yes |
| Wireless? | Yes |
| Latching | Yes |
